Fibox ARCA JIC Enclosure

• Description
• Specifications

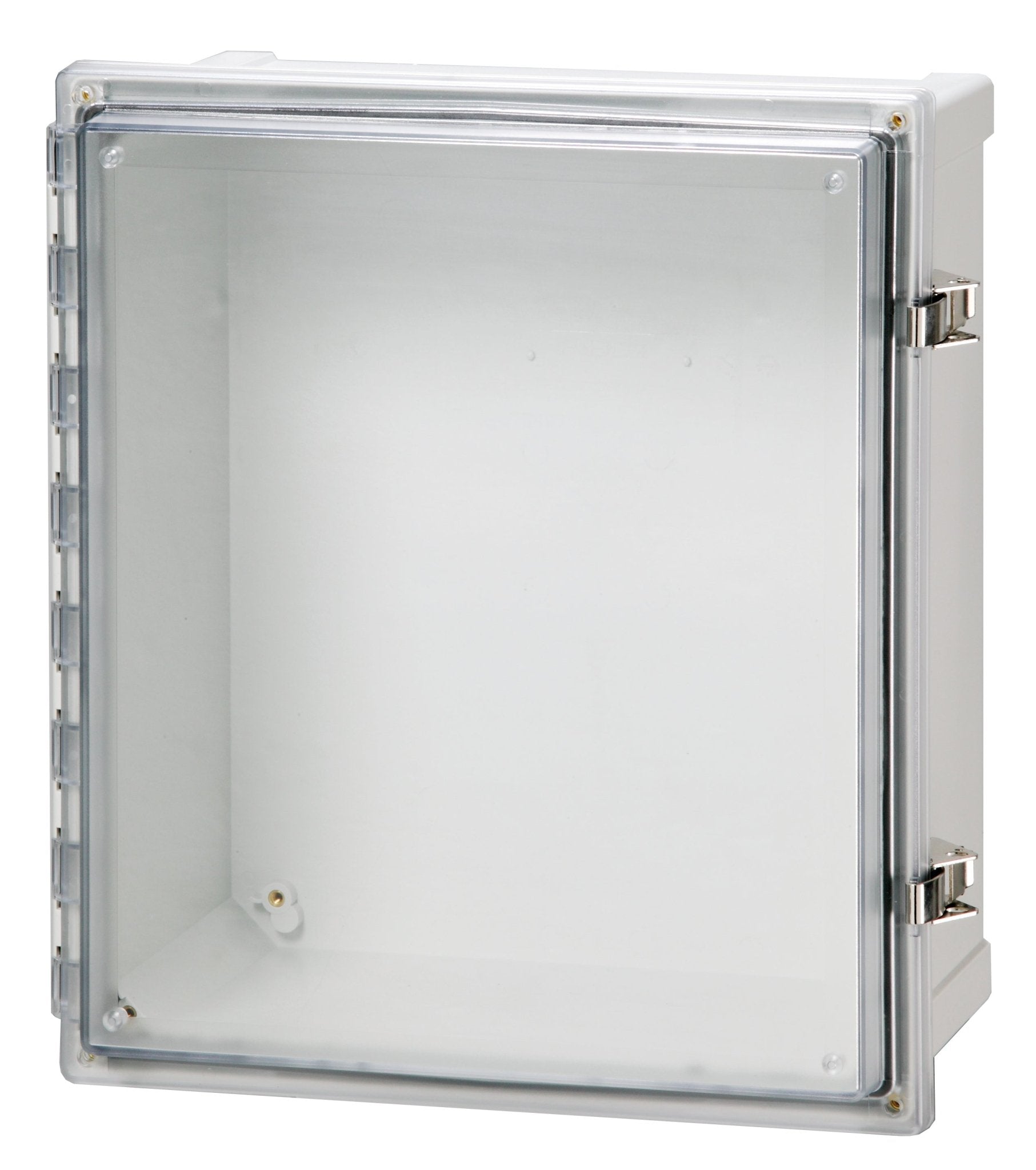

• Designed to house electrical and electronic controls and instruments in harsh indoor and outdoor environment, ARCA-JIC is a UL/cUL listed NEMA type 4X and 6P polycarbonate enclosure series. ARCA protects against corrosion, windblown dust and rain, sleet, snow, splashing or hose-directed water, UV, and heavy imapcts. The JIC is avilable with a screw cover, or hinged cover with serveral locking options.

• Specifications

  Please click a part number below to view the product specifications.

  Product Dimensions	Part Number
  10 x 8 x 6 inches	AR1086SC
  12 x 10 x 6 inches	AR12106SC
  6 x 6 x 4 inches	AR664CHSC
  8 x 6 x 5 inches	AR865CHSC
  10 x 8 x 6 inches	AR1086CHSC
  12 x 10 x 6 inches	AR12106CHSC
  14 x 12 x 7 inches	AR14127CHSC
  8 x 6 x 5 inches	AR865CHSSL
  10 x 8 x 6 inches	AR1086CHSSL
  12 x 10 x 6 inches	AR12106CHSSL
  14 x 12 x 7 inches	AR14127CHSSL
  10 x 8 x 6 inches	AR1086CHSSLT
  12 x 10 x 6 inches	AR12106CHSSLT
  16 x 14 x 8 inches	AR16148CHSC
  16 x 14 x 8 inches	AR16148CHSSL
  18 x 16 x 10 inches	AR181610CHSC
  18 x 16 x 10 inches	AR181610CHSSL
  16 x 14 x 8 inches	AR16148CHSSLT
  10 x 8 x 4 inches	AR1084CHSSL
  20 x 16 x 8 inches	AR20168CHSSL
  24 x 20 x 8 inches	AR24208CHSSL
  24 x 24 x 10 inches	AR242410CHSSL

• 4
• 4X
• 6
• 6P
• 12
• 13

No downloads available for this variant.
