H1 Series UL 2416 Rated 3,000 lbs Weight CapacityHammond MFG
- More Info

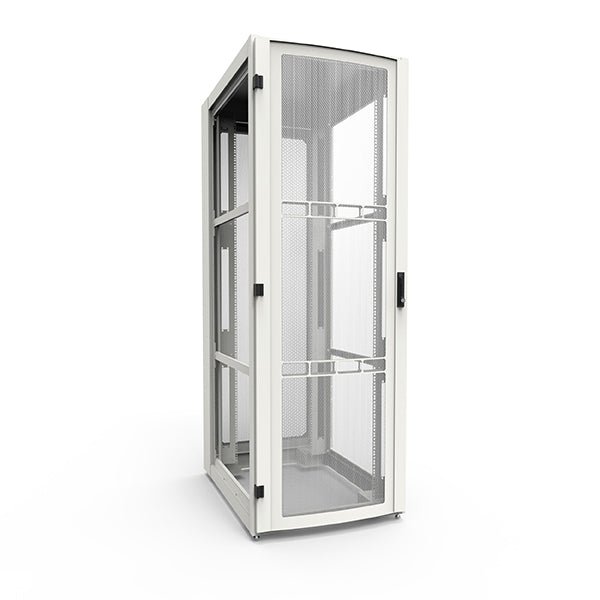

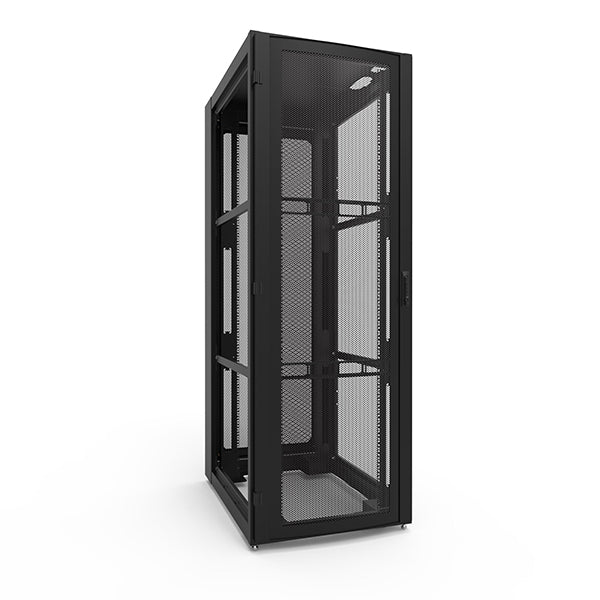

The H1 series is designed as your most complete offering for Server, Network, and Data Storage applications. This series incorporates Hammond Manufacturing’s practical open-design and manufacturing principles with legendary service, support, and reliability. H1 cabinets feature an array of enhancements over traditional cabinets, with cooling performance and enhanced security features demanded by today’s IT manager.
Please click a part number below to view the product specifications.
80.37x24x42 in. H12442U42BK 80.37x30x42 in. H13042U42BK 80.37x31.5x42 in. H13142U42BK 80.37x24x48 in. H12442U48BK 80.37x30x48 in. H13042U48BK 80.37x31.5x48 in. H13142U48BK 85.65x24x42 in. H12445U42BK 85.65x30x42 in. H13045U42BK 85.65x31.5x42 in. H13145U42BK 85.65x24x48 in. H12445U48BK 85.65x30x48 in. H13045U48BK 85.65x31.5x48 in. H13145U48BK 90.87x24x42 in. H12448U42BK 90.87x30x42 in. H13048U42BK 90.87x31.5x42 in. H13148U42BK 90.87x24x48 in. H12448U48BK 90.87x30x48 in. H13048U48BK 90.87x31.5x48 in. H13148U48BK 97.9x24x42 in. H12452U42BK 97.9x30x42 in. H13052U42BK 97.9x31.5x42 in. H13152U42BK 97.9x24x48 in. H12452U48BK 97.9x30x48 in. H13052U48BK 97.9x31.5x48 in. H13152U48BK
- Constructed in 14-gauge steel
- .48" Depth cabinet includes:
- Four (4) large cable entry knockouts at the rear top/bottom
- Two (2) large cable entry knockouts at the front/top
- Grounding studs bonded to frame, side panels and doors.
- Front and rear studs conform to PET.
- UL Listed 2416 rated for up to 3,000 lbs (1,360 kg) static load rating.
- Rated for up to 2,200 lbs (997.90 kg) rolling caster load rating. Heavy duty casters are also available.
- Finished in textured black or white powder paint.
- TAA Compliant.
- RoHS Compliant.
- Manufactured in North America.
