Hammond 1486 Type 4/12 Wiring Trough – 8 x 8 in
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$212.99
Couldn't load pickup availability
Specifications
| Product Type | Wireway and Trough |
|---|---|
| Material | Painted Steel |
| Application | Indoor, Outdoor |
| IP Equivalent | IP66 |
| Height | 8 |
| Width | 8 |
| Length | 12 |
| Cover Type | Hinged Cover |
| Wireway Part Type | Straight |
| Wireway Features | Wiring Trough |
Protect multiple wiring junctions from dirt, dust, oil and water with a Hammond 1486 industrial trough. The hinged cover opens for wiring access and closes with stainless steel screw clamps.
- 14 gauge steel with continuously welded seams.
- Permanently attached oil-resistant gaskets.
- 12 gauge mounting feet welded to the rear.
- ANSI 61 gray powder coating on the trough and cover.
- UL 870 and CSA Types 1, 4 and 12; NEMA Types 4 and 12; IEC 60529 IP66.
Choose your length
This listing has a 8 x 8 inch cross-section. Dimensions below are height x depth x length.
| Part number | H (in) | D (in) | L (in) |
|---|---|---|---|
| 1486E12 | 8 | 8 | 12 |
| 1486E24 | 8 | 8 | 24 |
| 1486E36 | 8 | 8 | 36 |
| 1486E48 | 8 | 8 | 48 |
| 1486E60 | 8 | 8 | 60 |

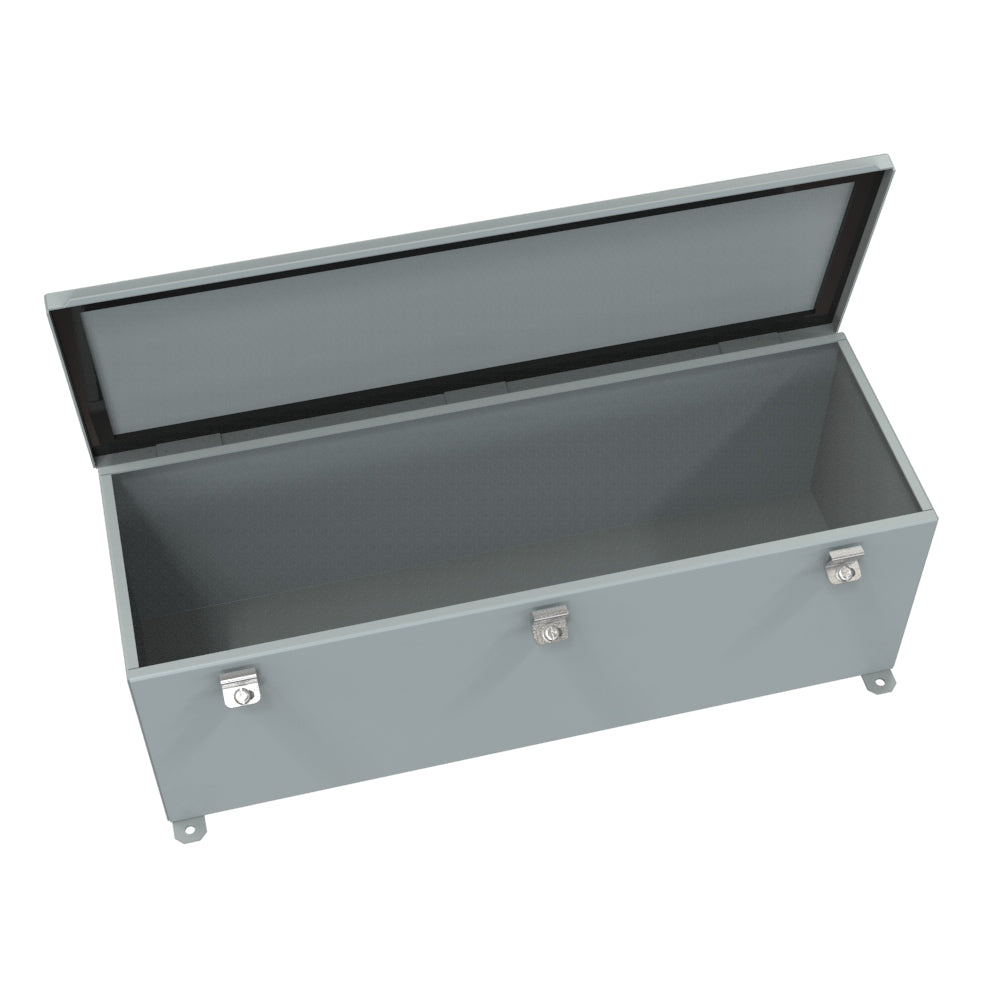

Manufacturer images illustrate the series. Select the required part number and dimensions.
