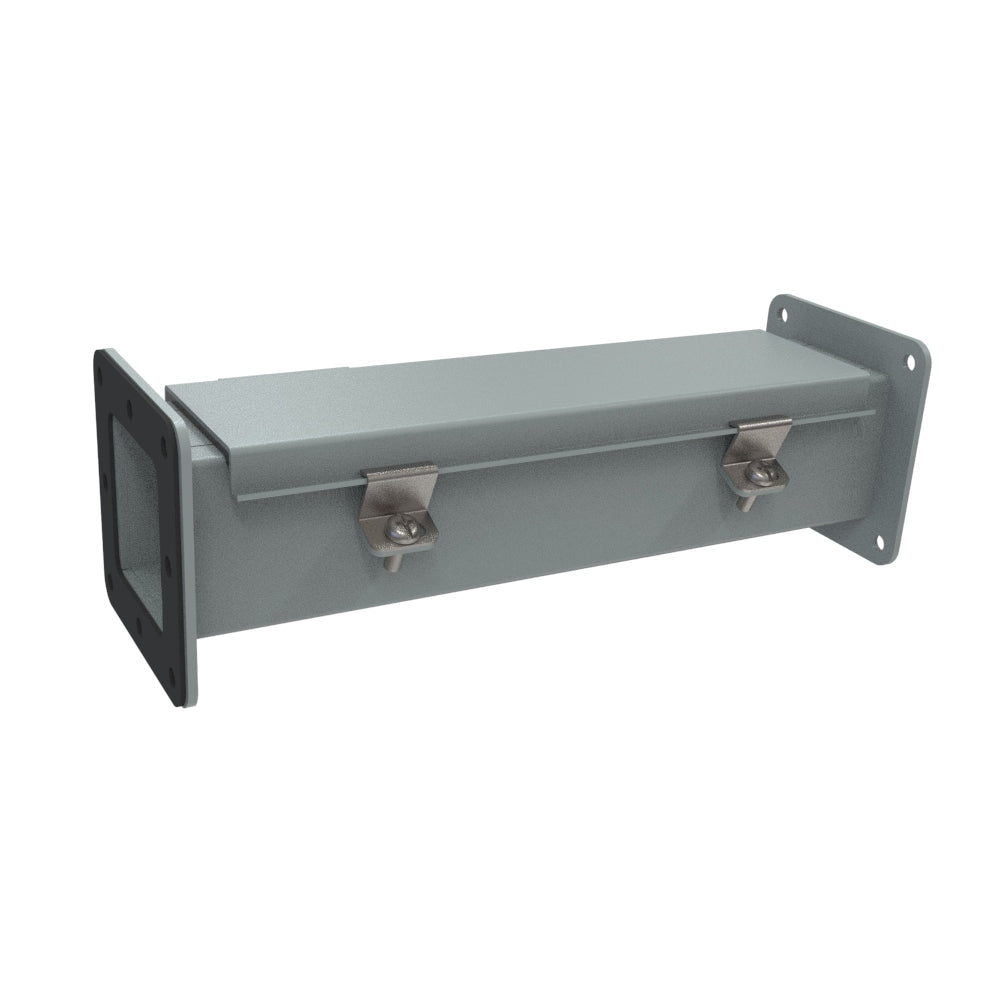

Hammond 1487 2.5 x 2.5 in painted steel pull-through wireway; representative straight section
Hammond 1487 2.5 x 2.5 in painted steel pull-through wireway; representative straight section
Hammond MFG

Hammond 1487 Type 12 Pull-Through Wireway — 2.5 x 2.5 in

In stock
SKU: 1487B12
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
$107.99
Length

Specifications

Product Type Wireway and Trough
Material Painted Steel
Application Indoor
IP Equivalent IP66
Height 2.5
Width 2.5
Length 12
Cover Type Hinged Cover
Wireway Part Type Straight
Wireway Features Pull-Through

Route and protect wiring with Hammond 1487 Type 12 pull-through wireway in 2.5 x 2.5 in nominal cross section. Choose a straight-section length from 12 to 120 in.

The continuous end flanges require cables to be pulled through the wireway. Steel bodies and hinged covers are finished in ANSI 61 gray; screw clamps secure the gasketed covers. Hammond lists NEMA Types 1 and 12, UL/CSA Types 1 and 12, and IP66 for this series, subject to the accessory exceptions identified by the manufacturer.

Each straight section includes one flange gasket and hardware kit. Match fittings, covers and hangers to the selected wireway size.

Matching fittings and accessories

Choose a fitting for this 2.5 x 2.5 in wireway below. Select the required nipple length or reducer transition.

Accessory Matching part
Nipples — 1, 2, 3 and 6 in 1487BM1 (1 in)
1487BM2 (2 in)
1487BM3 (3 in)
1487BM6 (6 in)
Box-entry swivel nipples 1487BV1
Standard swivel nipples 1487BV2
Adjustable fittings 1487BX
Lay-in cut-off fittings 1487BW
90° elbows 1487B9P
45° elbows 1487B4P
22.5° elbows 1487B2P
Tee fittings 1487BT
Cross fittings 1487BY
Center-hole reducers 1487CRC (4 x 4 to 2.5 x 2.5 in)
Edge-hole reducers 1487CRE (4 x 4 to 2.5 x 2.5 in)
Box connectors 1487BK
Cover plates 1487BH
Gasket and screw kits 1487BS

Matching hangers

Part selection

Part number Section length
1487B12 12 in
1487B24 24 in
1487B36 36 in
1487B48 48 in
1487B60 60 in
1487B120 120 in

See the selected part’s Downloads for its Hammond drawing, specifications and available CAD files. Images represent the product style; dimensions vary with the selected part.
