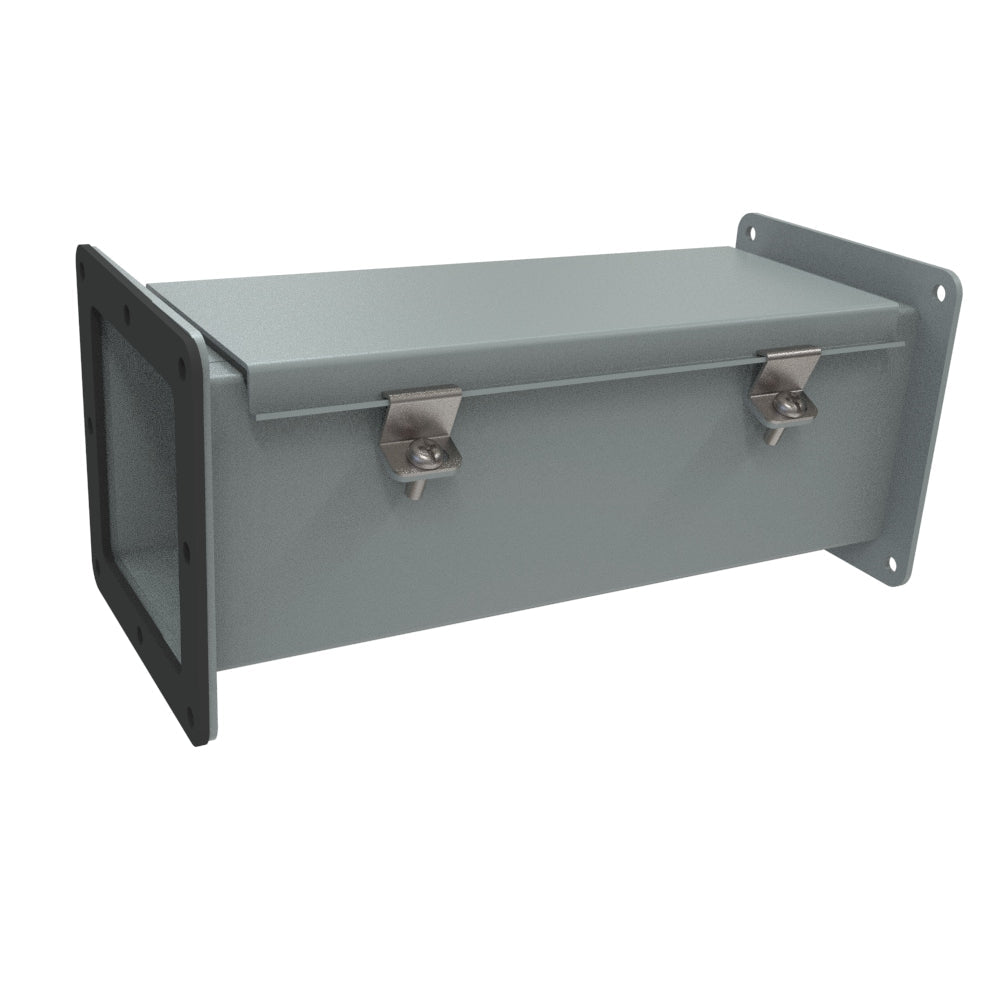

Hammond 1487 Type 12 Pull-Through Wireway — 4 x 4 in
Couldn't load pickup availability
Specifications
| Product Type | Wireway and Trough |
|---|---|
| Material | Painted Steel |
| Application | Indoor |
| IP Equivalent | IP66 |
| Height | 4 |
| Width | 4 |
| Length | 12 |
| Cover Type | Hinged Cover |
| Wireway Part Type | Straight |
| Wireway Features | Pull-Through |
Route and protect wiring with Hammond 1487 Type 12 pull-through wireway in 4 x 4 in nominal cross section. Choose a straight-section length from 12 to 120 in.
The continuous end flanges require cables to be pulled through the wireway. Steel bodies and hinged covers are finished in ANSI 61 gray; screw clamps secure the gasketed covers. Hammond lists NEMA Types 1 and 12, UL/CSA Types 1 and 12, and IP66 for this series, subject to the accessory exceptions identified by the manufacturer.
Each straight section includes one flange gasket and hardware kit. Match fittings, covers and hangers to the selected wireway size.
Matching fittings and accessories
Choose a fitting for this 4 x 4 in wireway below. Select the required nipple length or reducer transition.
| Accessory | Matching part |
|---|---|
| 60 in barrier kits | 1487CB60 |
| Nipples — 1, 2, 3 and 6 in |
1487CM1 (1 in) 1487CM2 (2 in) 1487CM3 (3 in) 1487CM6 (6 in) |
| Box-entry swivel nipples | 1487CV1 |
| Standard swivel nipples | 1487CV2 |
| Adjustable fittings | 1487CX |
| Lay-in cut-off fittings | 1487CW |
| 90° elbows | 1487C9P |
| 45° elbows | 1487C4P |
| 22.5° elbows | 1487C2P |
| Tee fittings | 1487CT |
| Cross fittings | 1487CY |
| Center-hole reducers |
1487CRC (4 x 4 to 2.5 x 2.5 in) 1487DRC (6 x 6 to 4 x 4 in) 1487ERCC (8 x 8 to 4 x 4 in) |
| Edge-hole reducers |
1487CRE (4 x 4 to 2.5 x 2.5 in) 1487DRE (6 x 6 to 4 x 4 in) 1487EREC (8 x 8 to 4 x 4 in) |
| Box connectors | 1487CK |
| Cover plates | 1487CH |
| Gasket and screw kits | 1487CS |
Matching hangers
Part selection
| Part number | Section length |
|---|---|
| 1487C12 | 12 in |
| 1487C24 | 24 in |
| 1487C36 | 36 in |
| 1487C48 | 48 in |
| 1487C60 | 60 in |
| 1487C120 | 120 in |
See the selected part’s Downloads for its Hammond drawing, specifications and available CAD files. Images represent the product style; dimensions vary with the selected part.
