Hammond C3RWT Type 3R Wiring Trough – 6 x 6 in
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$49.99
Couldn't load pickup availability
Specifications
| Product Type | Wireway and Trough |
|---|---|
| Material | Painted Steel |
| Application | Outdoor |
| IP Equivalent | IP24 |
| Height | 6 |
| Width | 6 |
| Length | 12 |
| Cover Type | Screw Cover |
| Wireway Part Type | Straight |
| Wireway Features | Wiring Trough |
Protect outdoor wiring junctions with a Hammond C3RWT trough. A drip-shield top and removable front cover help keep rain, sleet and snow away from enclosed wiring.
- 14 or 16 gauge galvanized steel with ANSI 61 gray powder coating.
- Spot-welded construction, rear mounting holes and a screw-secured slip-on cover.
- UL 870 and CSA Type 3R; NEMA Type 3R and IEC 60529 IP24.
Supplied hardware: Hammond no longer includes the grounding strap or padlocking hasp with each trough, effective August 17, 2026.
Choose your length
This listing has a 6 x 6 inch cross-section. Dimensions below are height x depth x length.
| Part number | H (in) | D (in) | L (in) |
|---|---|---|---|
| C3RWT612 | 6 | 6 | 12 |
| C3RWT618 | 6 | 6 | 18 |
| C3RWT624 | 6 | 6 | 24 |
| C3RWT636 | 6 | 6 | 36 |
| C3RWT648 | 6 | 6 | 48 |
| C3RWT660 | 6 | 6 | 60 |
| C3RWT672 | 6 | 6 | 72 |

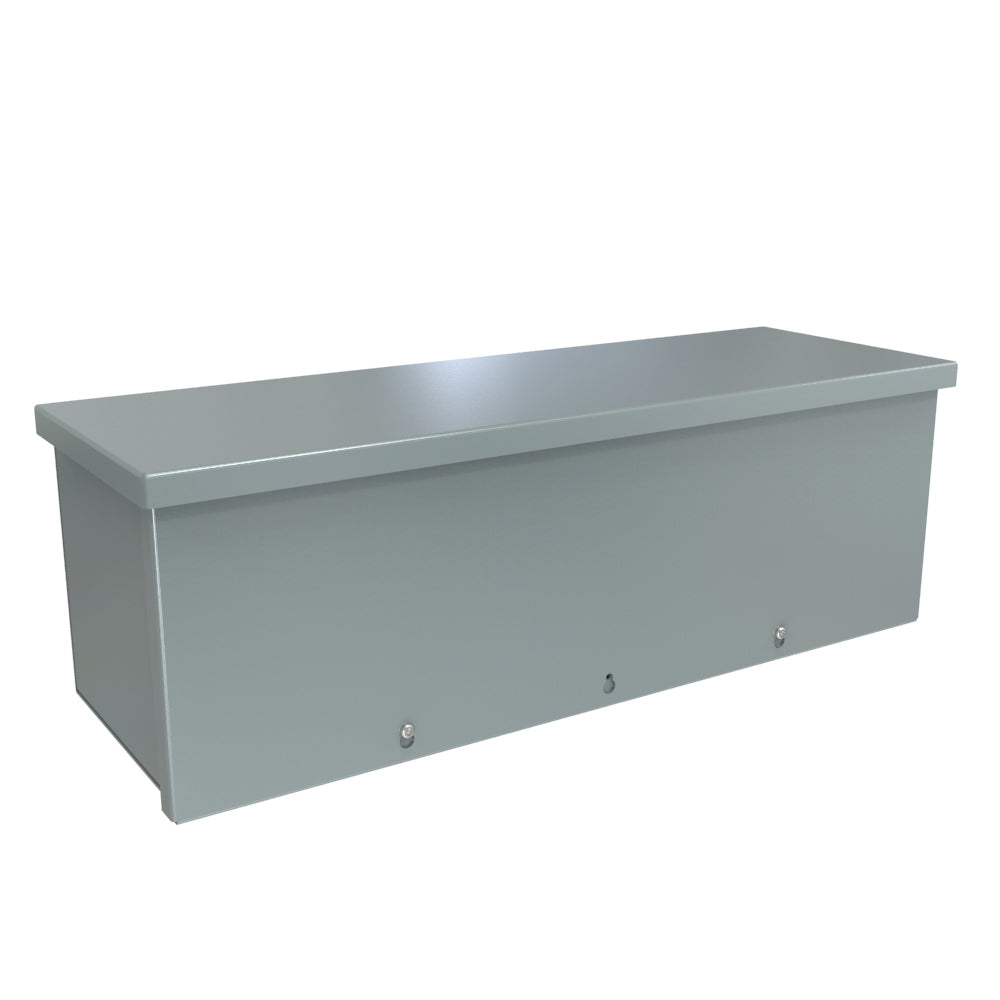

Manufacturer images illustrate the series. Select the required part number and dimensions.
