Hammond C3RWT Type 3R Wiring Trough – 8 x 8 in
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$82.99
Couldn't load pickup availability
Specifications
| Product Type | Wireway and Trough |
|---|---|
| Material | Painted Steel |
| Application | Outdoor |
| IP Equivalent | IP24 |
| Height | 8 |
| Width | 8 |
| Length | 12 |
| Cover Type | Screw Cover |
| Wireway Part Type | Straight |
| Wireway Features | Wiring Trough |
Protect outdoor wiring junctions with a Hammond C3RWT trough. A drip-shield top and removable front cover help keep rain, sleet and snow away from enclosed wiring.
- 14 or 16 gauge galvanized steel with ANSI 61 gray powder coating.
- Spot-welded construction, rear mounting holes and a screw-secured slip-on cover.
- UL 870 and CSA Type 3R; NEMA Type 3R and IEC 60529 IP24.
Supplied hardware: Grounding strap and padlocking hasp are not included.
Choose your length
This listing has a 8 x 8 inch cross-section. Dimensions below are height x depth x length.
| Part number | H (in) | D (in) | L (in) |
|---|---|---|---|
| C3RWT812 | 8 | 8 | 12 |
| C3RWT824 | 8 | 8 | 24 |
| C3RWT836 | 8 | 8 | 36 |
| C3RWT848 | 8 | 8 | 48 |
| C3RWT860 | 8 | 8 | 60 |
| C3RWT872 | 8 | 8 | 72 |
| C3RWT896 | 8 | 8 | 96 |
| C3RWT8116 | 8 | 8 | 116 |

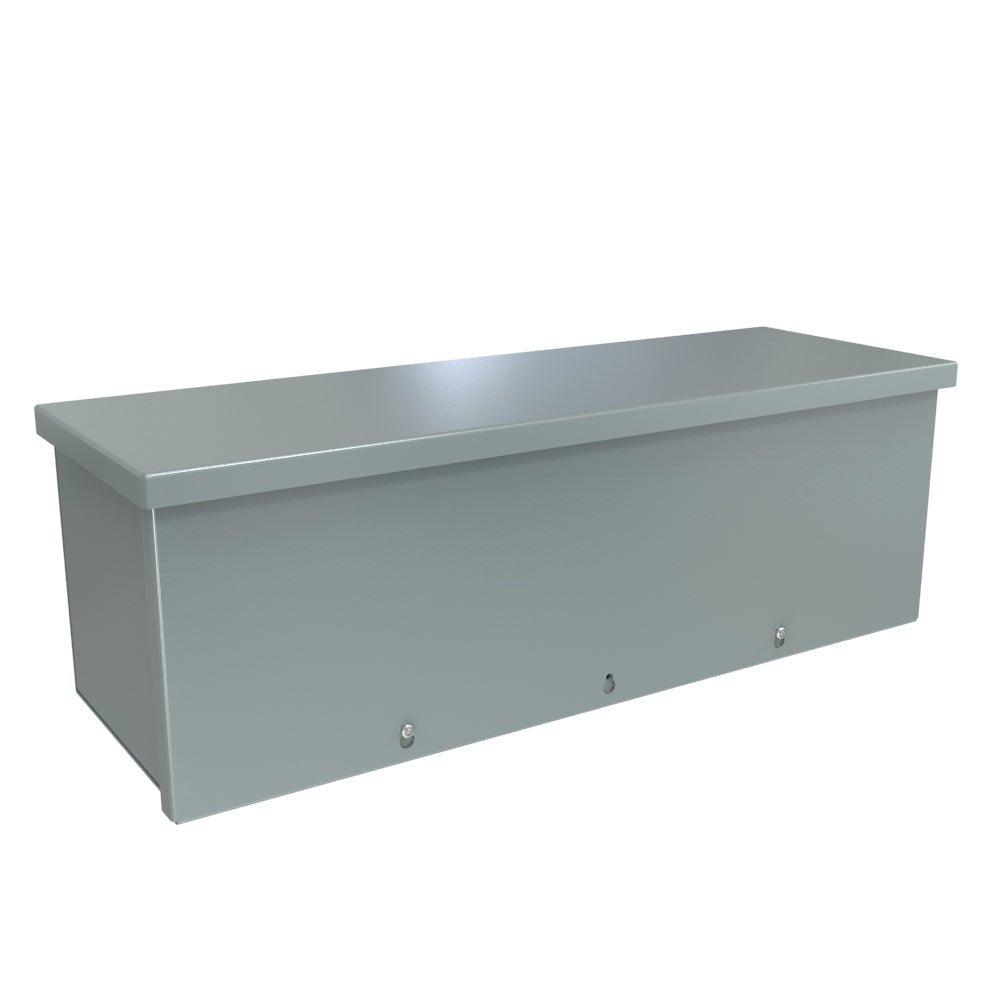

Representative series image shown.
Drawings and specifications are available under Downloads for the selected part.
