Hammond C3RWTG Type 3R Galvanized Wiring Trough – 10 x 10 in
Contact us for current lead time.
Contact Us for Expedited Shipping
Regular price
$203.99
Couldn't load pickup availability
Specifications
| Product Type | Wireway and Trough |
|---|---|
| Material | Unpainted Galvanized Steel |
| Application | Outdoor |
| IP Equivalent | IP24 |
| Height | 10 |
| Width | 10 |
| Length | 24 |
| Cover Type | Screw Cover |
| Wireway Part Type | Straight |
| Wireway Features | Wiring Trough |
Enclose outdoor wiring junctions with a Hammond C3RWTG trough in unpainted galvanized steel. Its drip-shield top and removable front cover provide protection against rain, sleet and snow.
- 14 or 16 gauge galvanized steel with spot-welded construction.
- Rear mounting holes and a screw-secured slip-on cover.
- UL 870 and CSA Type 3R; NEMA Type 3R and IEC 60529 IP24.
Supplied hardware: Grounding strap and padlocking hasp are not included.
Choose your length
This listing has a 10 x 10 inch cross-section. Dimensions below are height x depth x length.
| Part number | H (in) | D (in) | L (in) |
|---|---|---|---|
| C3RWT1024G | 10 | 10 | 24 |
| C3RWT1036G | 10 | 10 | 36 |
| C3RWT1048G | 10 | 10 | 48 |
| C3RWT1060G | 10 | 10 | 60 |
| C3RWT1072G | 10 | 10 | 72 |
| C3RWT1096G | 10 | 10 | 96 |
| C3RWT10116G | 10 | 10 | 116 |

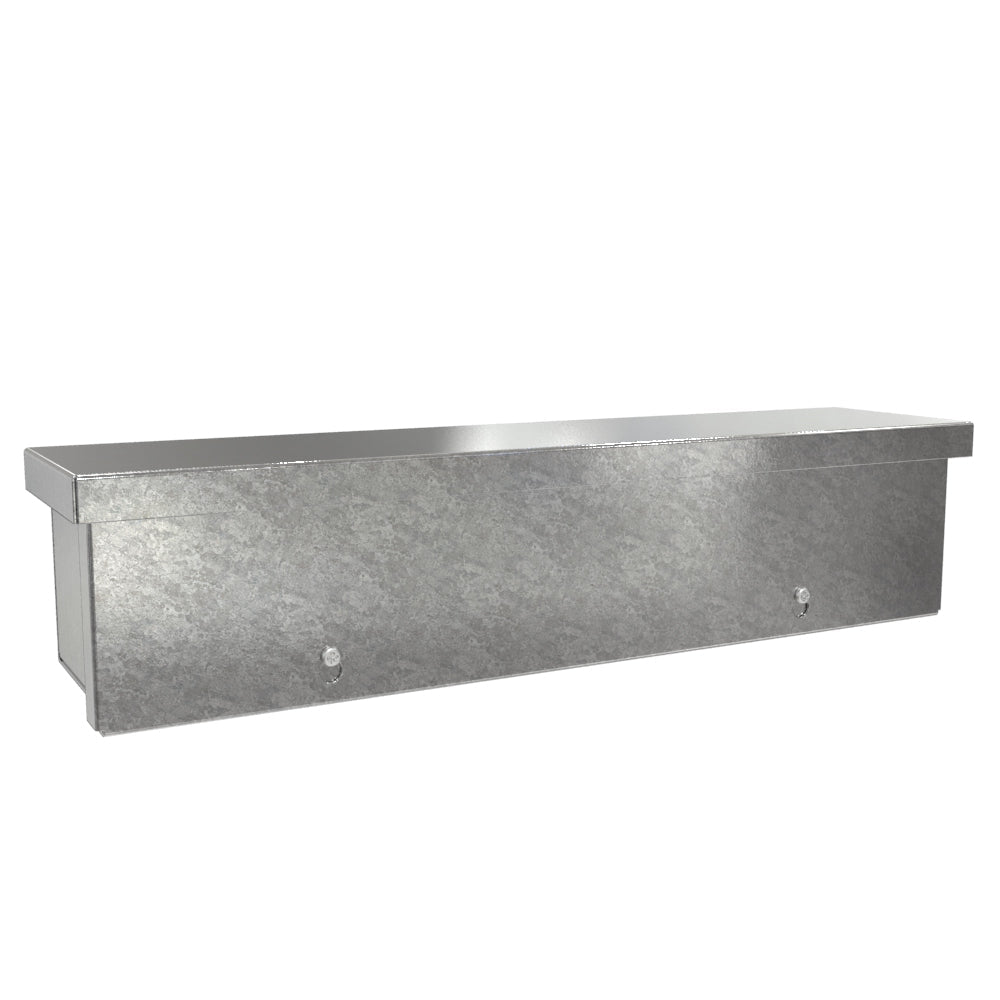

Representative series image shown.
Drawings and specifications are available under Downloads for the selected part.
