Hammond CGT Type 1 Gutter Trough – 4 x 4 in
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$24.99
Couldn't load pickup availability
Specifications
| Product Type | Wireway and Trough |
|---|---|
| Material | Painted Steel |
| Application | Indoor |
| IP Equivalent | IP20 |
| Height | 4 |
| Width | 4 |
| Length | 12 |
| Cover Type | Screw Cover |
| Wireway Part Type | Straight |
| Wireway Features | Wiring Trough |
Use a Hammond CGT gutter trough as an indoor junction or pull box. The screw-secured flat cover removes for wiring access.
- 16 gauge steel with spot-welded construction.
- Mounting holes in the rear of the enclosure.
- ANSI 61 gray powder coating on the trough and cover.
- UL 870 and cUL Type 1; NEMA Type 1 and IEC 60529 IP20.
Choose your length
This listing has a 4 x 4 inch cross-section. Dimensions below are height x depth x length.
| Part number | H (in) | D (in) | L (in) |
|---|---|---|---|
| CGT1244 | 4 | 4 | 12 |
| CGT1844 | 4 | 4 | 18 |
| CGT2444 | 4 | 4 | 24 |
| CGT3644 | 4 | 4 | 36 |
| CGT4844 | 4 | 4 | 48 |

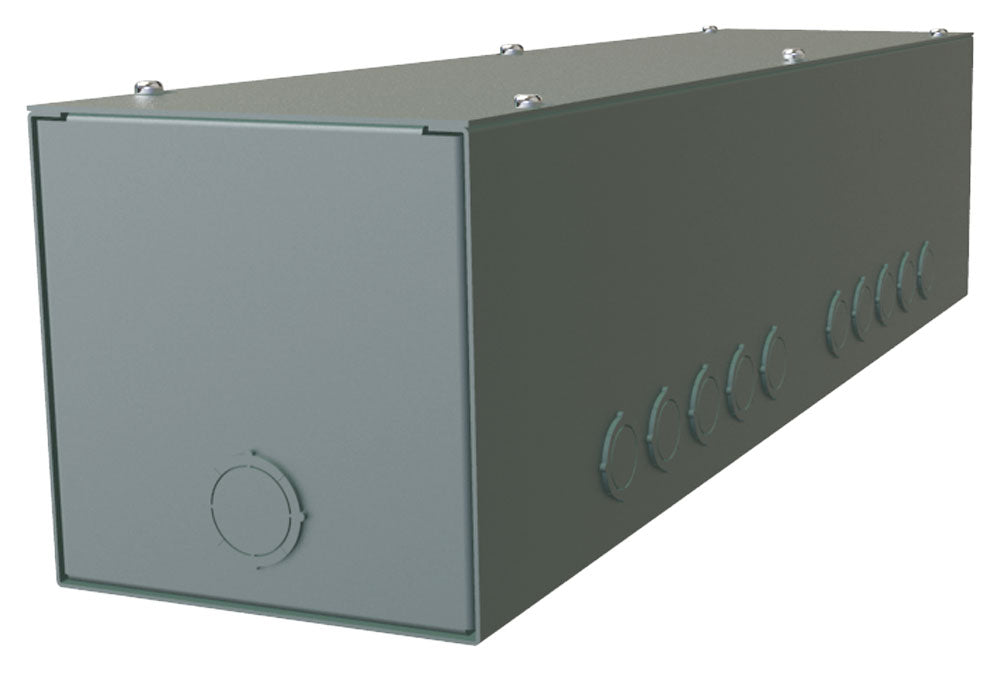

Manufacturer images illustrate the series. Select the required part number and dimensions.
