Hammond CHKO Type 1 Hinged Junction Box with Knockouts
Limited factory stock—contact us to confirm availability.
Contact Us for Expedited Shipping
Regular price
$14.99
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Painted Steel |
| Series | Hammond CHKO Series |
| Application | Indoor, Wall Mountable, Junction Box |
| IP Equivalent | IP20 |
| Height | 6 |
| Width | 6 |
| Depth | 3.5 |
| Cover Type | Hinged Cover |
| Latch Type | Quarter-Turn |
| Mount Type | Wall Mount |
| Mounting Plate Included | No |

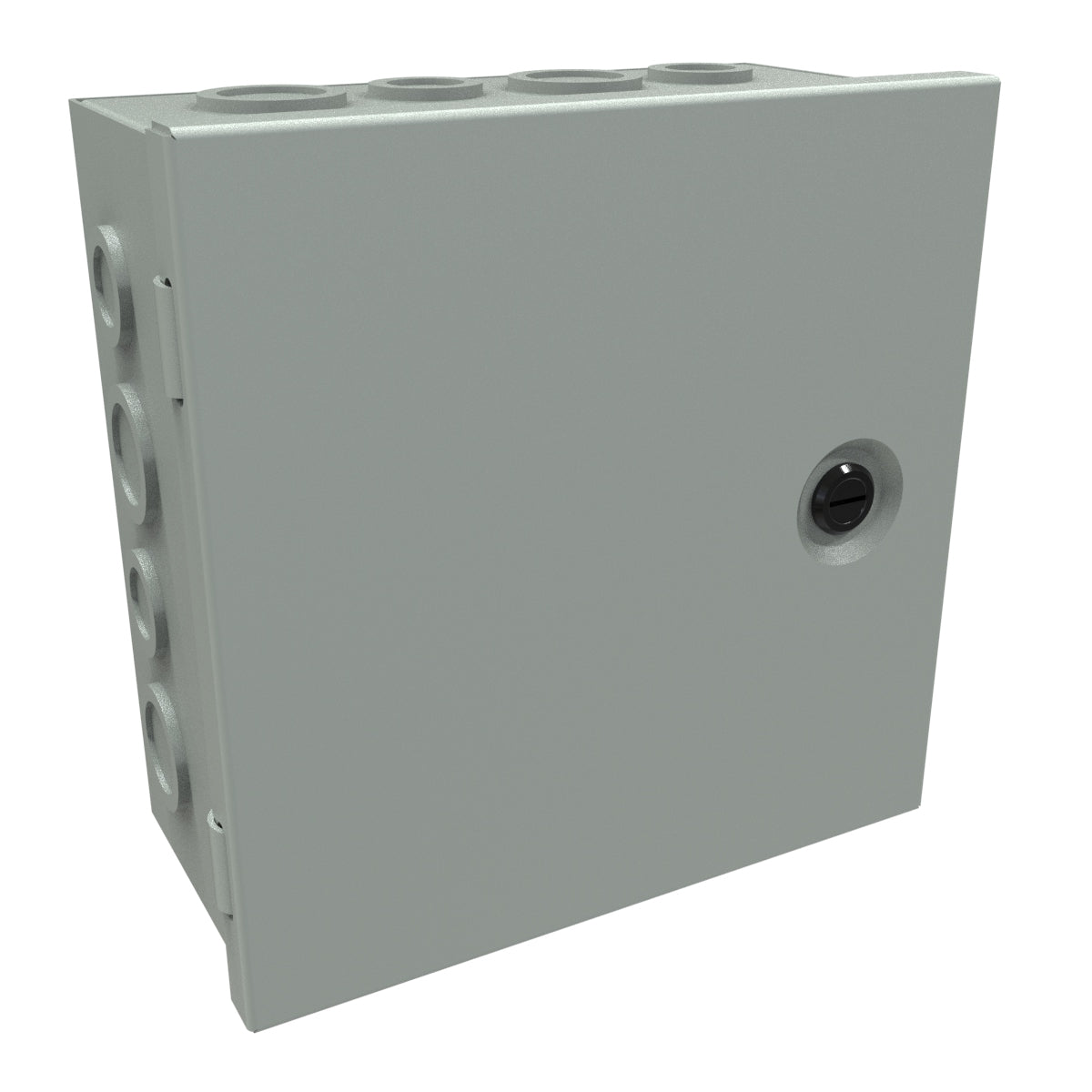

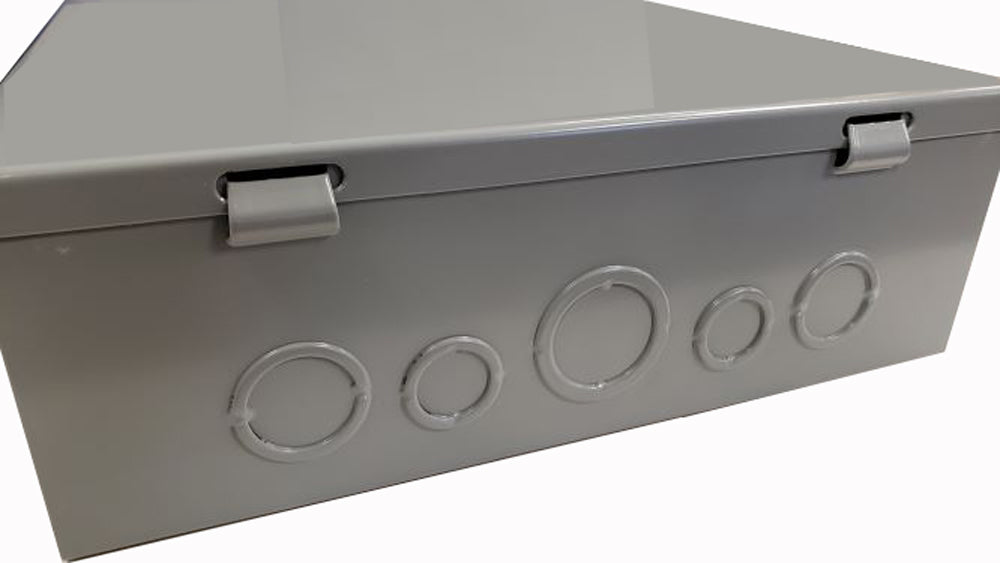

Hammond CHKO series junction boxes provide NEMA Type 1 protection for indoor electrical wiring and junction applications. A full-swing hinged door and slotted quarter-turn latch provide convenient access, with knockouts on all four sides for cable entry.
- Spot-welded mild steel construction: 16 gauge for sizes up to 30 x 24 inches and 14 gauge for the 36 x 24 inch sizes.
- ANSI 61 gray powder-coated finish.
- Wall-mounting holes in the back and an embossed grounding location.
- UL 50 Type 1, CSA Type 1 and IEC 60529 IP20.
Select height, width and depth in inches. Mounting panels and the optional N1JLK key lock kit are sold separately. Compatible accessories for the selected size are listed under Accessories.
Series images shown. Drawings and specifications are available under Downloads for the selected part.
