Hammond CS1010EXT4 Extender Ring – 10 x 10 in Box, 4 in Added Depth
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$25.99
Couldn't load pickup availability
Specifications
| Product Type | Enclosure Accessories |
|---|---|
| Material | Painted Steel |
| Application | Indoor |
| Height | 10 |
| Width | 10 |
| Depth | 4 |
The Hammond CS1010EXT4 extender ring adds 4 inches of depth to a 10 × 10 inch Type 1 screw-cover junction box. It fits matching CS, CSG, CSKO and CSKOG boxes.
- Painted steel with ANSI 61 gray finish.
- Keyhole mounting slots simplify assembly.
- Fasten the ring using the existing box-cover screws, then attach the cover to the ring with the supplied hardware.
Ring dimensions: 10 H × 10 W × 4 D inches. The box and cover are sold separately. Match the box height and width; the ring depth is the additional depth.
For a flush installation, the matching CSFC1010 flush cover is available separately.

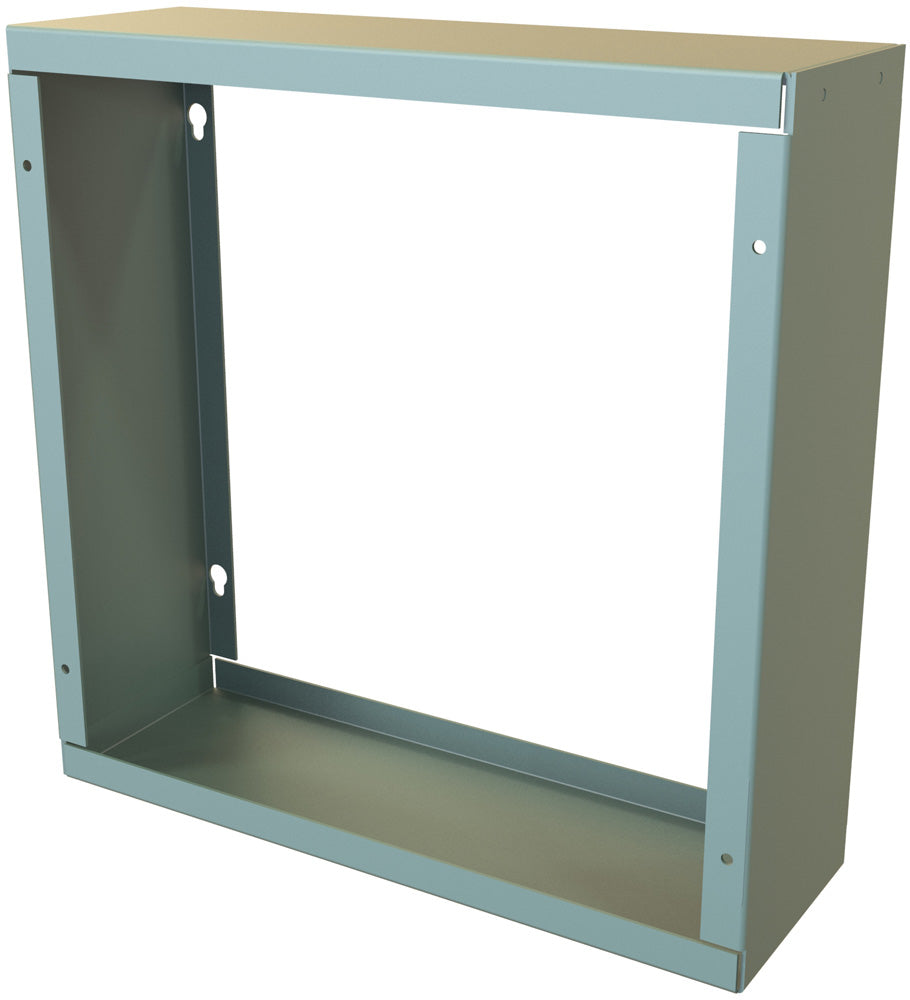

Representative CSEXT series image shown. Part-specific drawings and CAD files are available under Downloads.
