Hammond CS1010PP Perforated Panel for 10 x 10 in Enclosures

Specifications

Specifications

Product Type	Enclosure Accessories
Material	Painted Steel
Application	Indoor
Height	8.4
Width	9.5

Description

The Hammond CS1010PP is a perforated inner mounting panel for 10 x 10 inch CS, CSKO and CHKO enclosures. The panel measures 8.40 inches high x 9.50 inches wide.

• 16 gauge steel with an ANSI 61 gray painted finish.
• 1/8 inch holes on 1/4 inch staggered centers accept self-tapping screws for component mounting.
• Installs inside the enclosure using its wall-mounting hole locations.

One panel; enclosure sold separately.

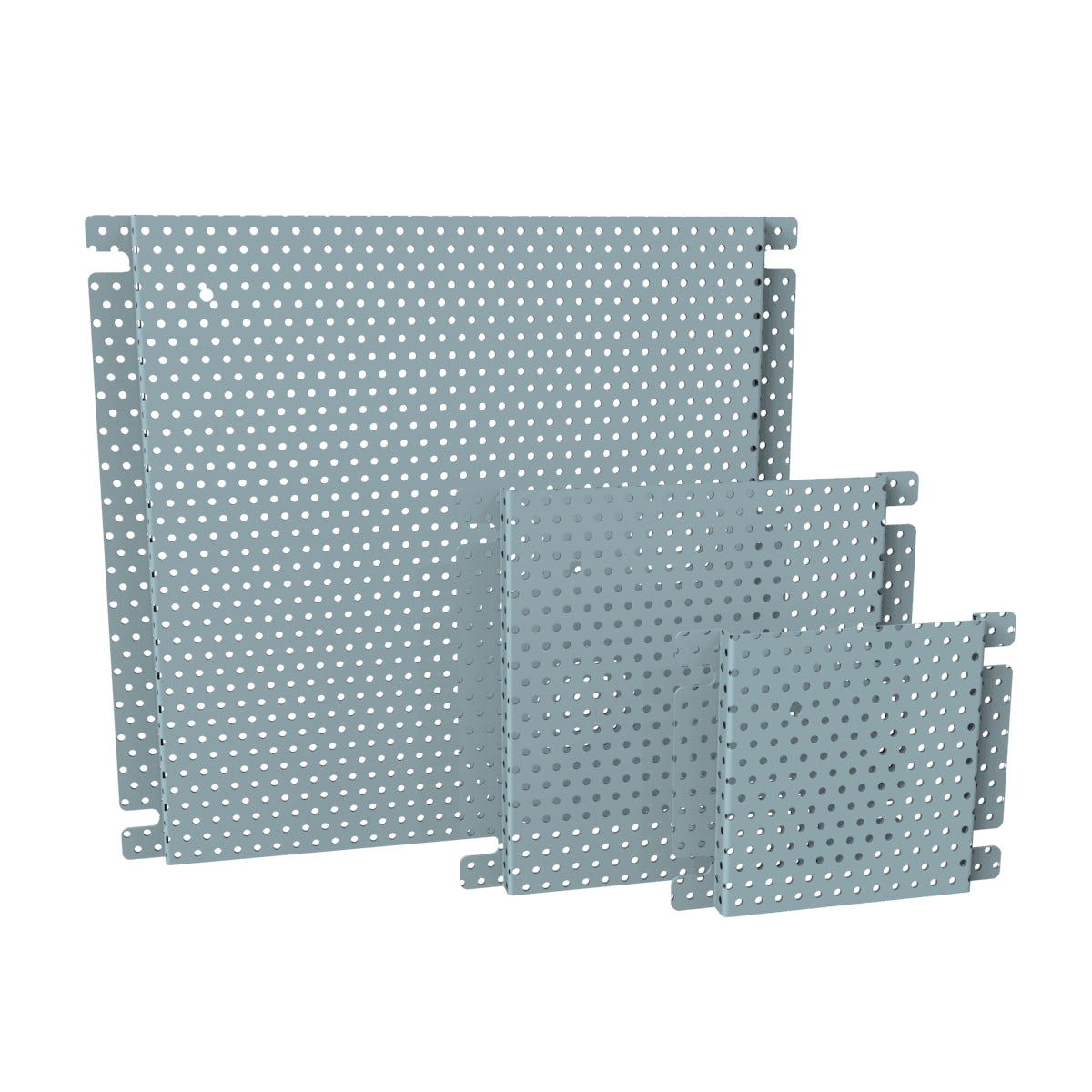

Representative CSPP series image shown.
