Hammond CS1616PP Perforated Panel for 16 x 16 in Enclosures

Specifications

Specifications

Product Type	Enclosure Accessories
Material	Painted Steel
Application	Indoor
Height	14.4
Width	15.5

Description

The Hammond CS1616PP is a perforated inner mounting panel for 16 x 16 inch CS, CSG, CSKO, CSKOG and CHKO enclosures. The panel measures 14.40 inches high x 15.50 inches wide.

• 16 gauge steel with an ANSI 61 gray painted finish.
• 1/8 inch holes on 1/4 inch staggered centers accept self-tapping screws for component mounting.
• Installs inside the enclosure using its wall-mounting hole locations.

One panel; enclosure sold separately.

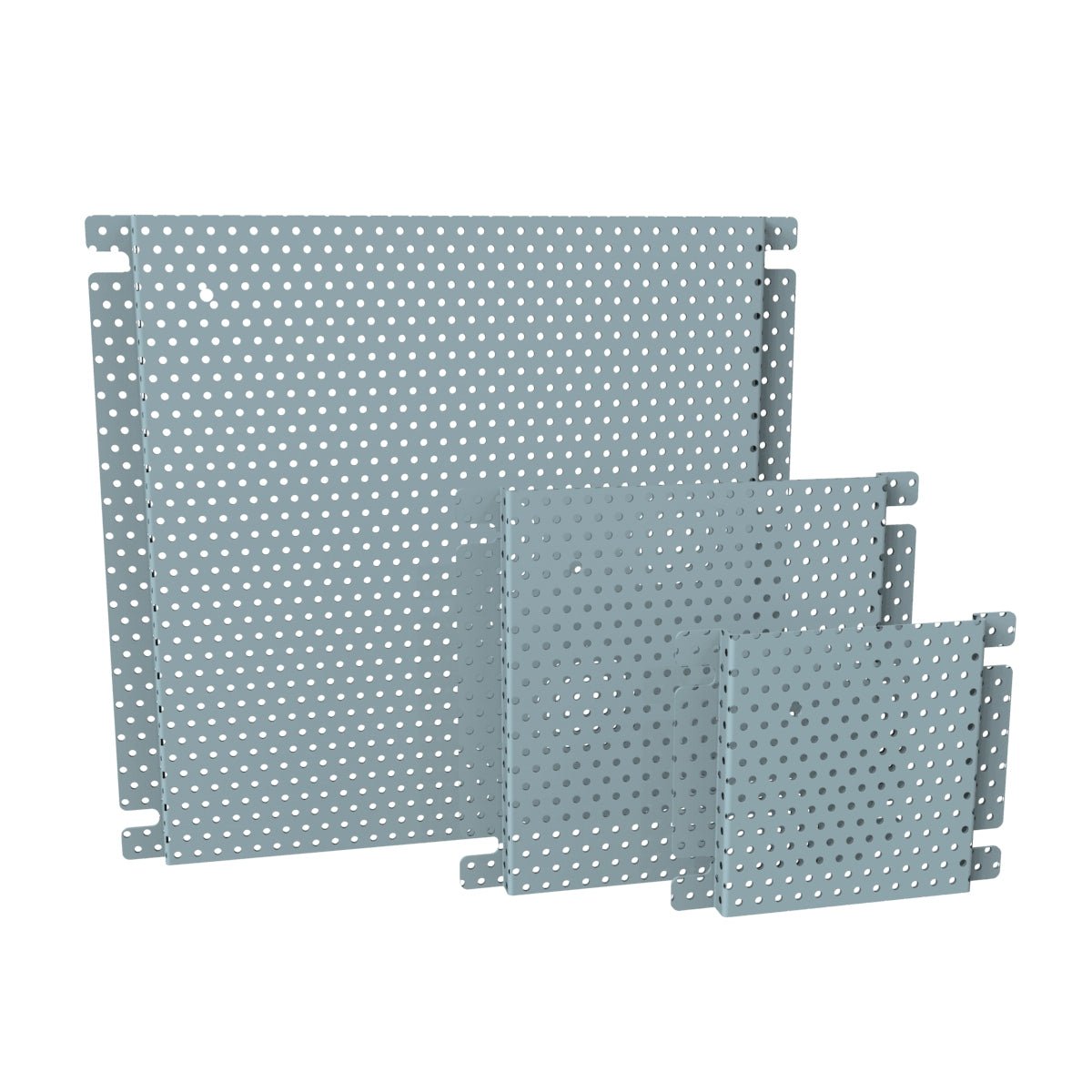

Representative CSPP series image shown.
