Hammond CS1818PP Perforated Panel for 18 x 18 in Enclosures
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$36.99
Couldn't load pickup availability
Specifications
| Product Type | Enclosure Accessories |
|---|---|
| Material | Painted Steel |
| Application | Indoor |
| Height | 16.4 |
| Width | 17.5 |

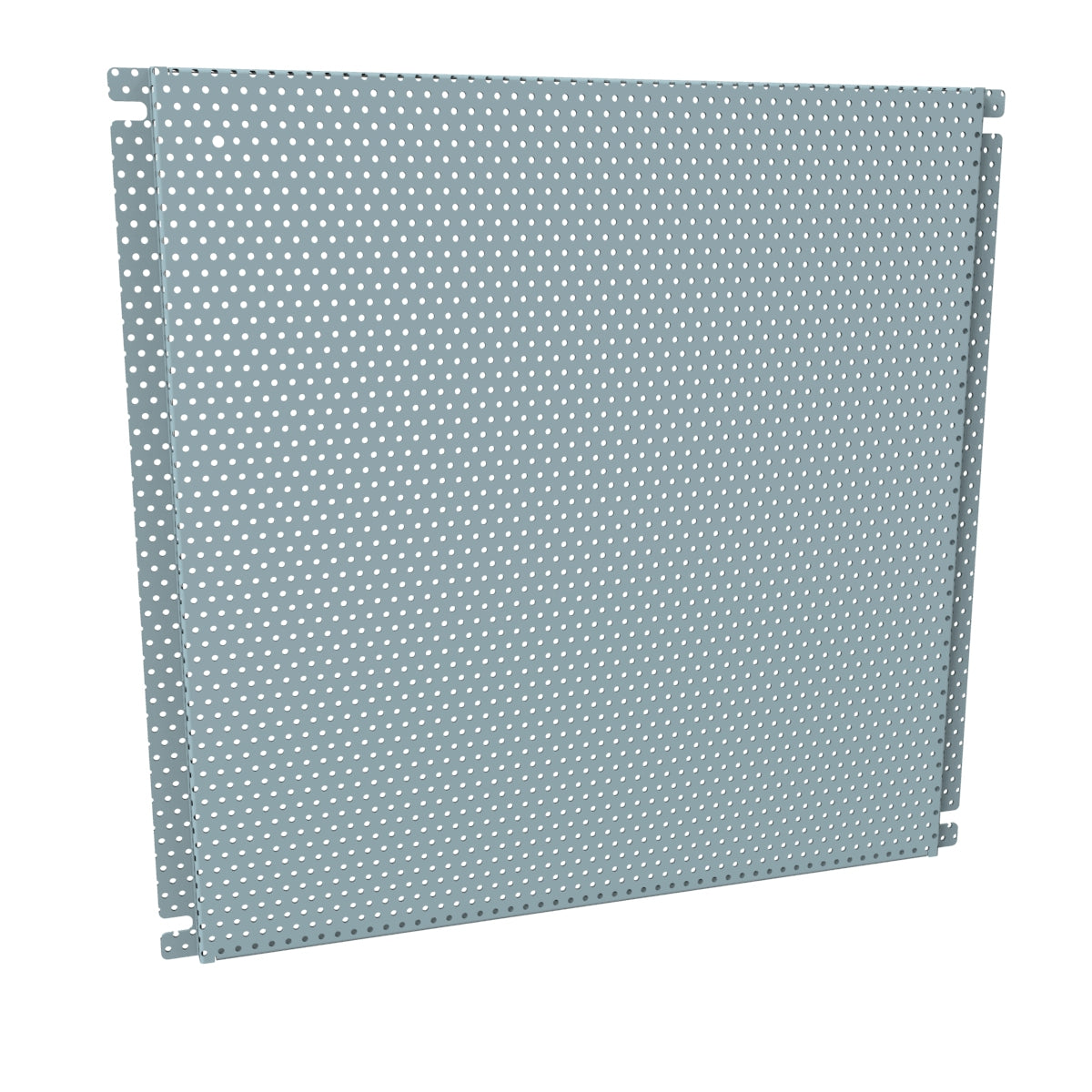

The Hammond CS1818PP is a perforated inner mounting panel for 18 x 18 inch CS, CSKO and CHKO enclosures. The panel measures 16.40 inches high x 17.50 inches wide.
- 16 gauge steel with an ANSI 61 gray painted finish.
- 1/8 inch holes on 1/4 inch staggered centers accept self-tapping screws for component mounting.
- Installs inside the enclosure using its wall-mounting hole locations.
One panel; enclosure sold separately.
