Hammond CSG66EXT4 Galvanized Extender Ring – 6 x 6 in Box, 4 in Added Depth
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$17.99
Couldn't load pickup availability
Specifications
| Product Type | Enclosure Accessories |
|---|---|
| Material | Unpainted Galvanized Steel |
| Application | Indoor |
| Height | 6 |
| Width | 6 |
| Depth | 4 |
The Hammond CSG66EXT4 galvanized extender ring adds 4 inches of depth to a 6 × 6 inch Type 1 screw-cover junction box. It fits matching CS, CSG, CSKO and CSKOG boxes.
- Unpainted galvanized steel.
- Keyhole mounting slots simplify assembly.
- Fasten the ring using the existing box-cover screws, then attach the cover to the ring with the supplied hardware.
Ring dimensions: 6 H × 6 W × 4 D inches. The box and cover are sold separately. Match the box height and width; the ring depth is the additional depth.

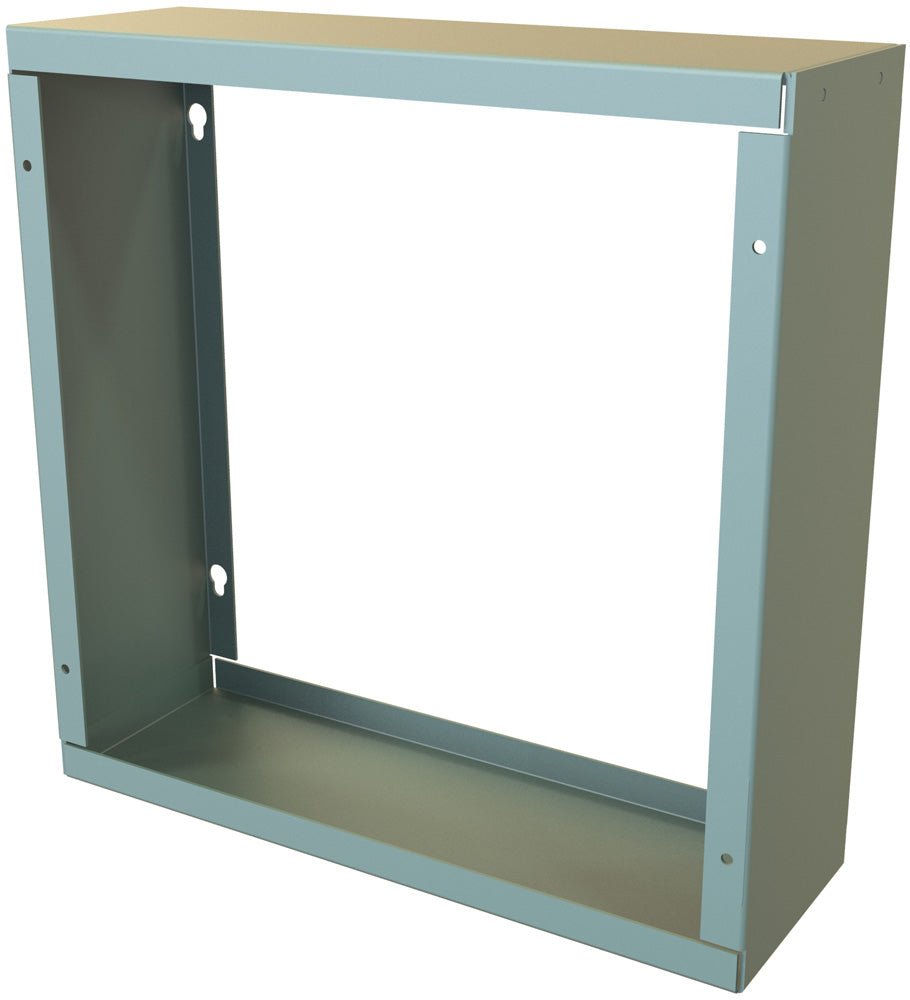

Representative CSEXT series image shows the painted version; this part is supplied in unpainted galvanized steel. Part-specific drawings and CAD files are available under Downloads.
