Hammond CSKO Type 1 Screw Cover Junction Box with Knockouts

Hammond CSKO junction boxes protect indoor wiring connections, pull points and switch installations. The removable screw cover has keyhole slots for access without fully removing the screws, and knockouts are provided on all four sides.

• NEMA Type 1 and IP20; UL 50 Type 1 and CSA Type 1.
• Spot-welded mild steel with ANSI 61 gray powder coating.
• 16-gauge construction through 30 × 24 inches; 14 gauge for 36 × 24 inch sizes.
• Rear wall-mounting holes and an embossed grounding location.

Select height, width and depth in inches. The standard screw cover is included. Optional mounting panels and extender rings are sold separately. Compatible accessories for the selected size are listed under Accessories.

Also available: 12 × 12 × 4 inch CSKO12124.

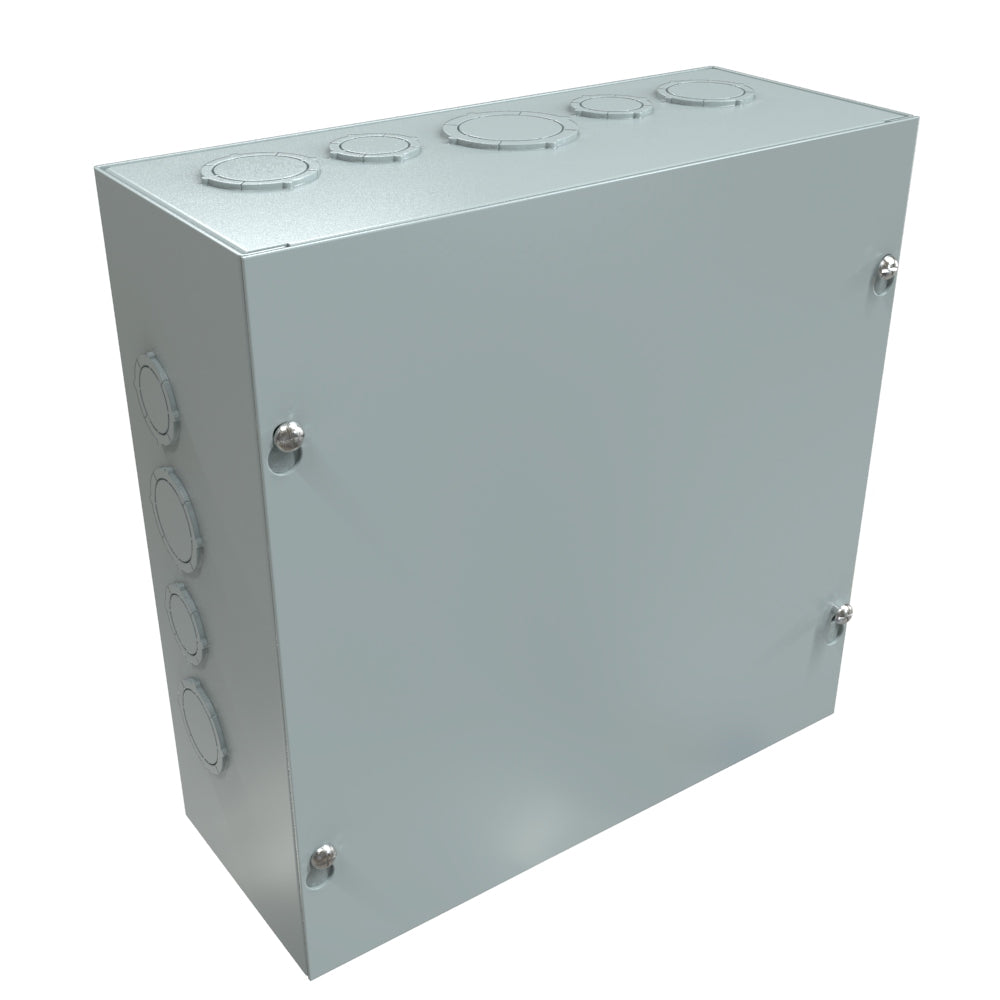

Series image shown. Drawings, CAD files and specifications are under Downloads for the selected part.

Optional flush covers

Choose by the box height and width below. Flush covers are sold separately.
