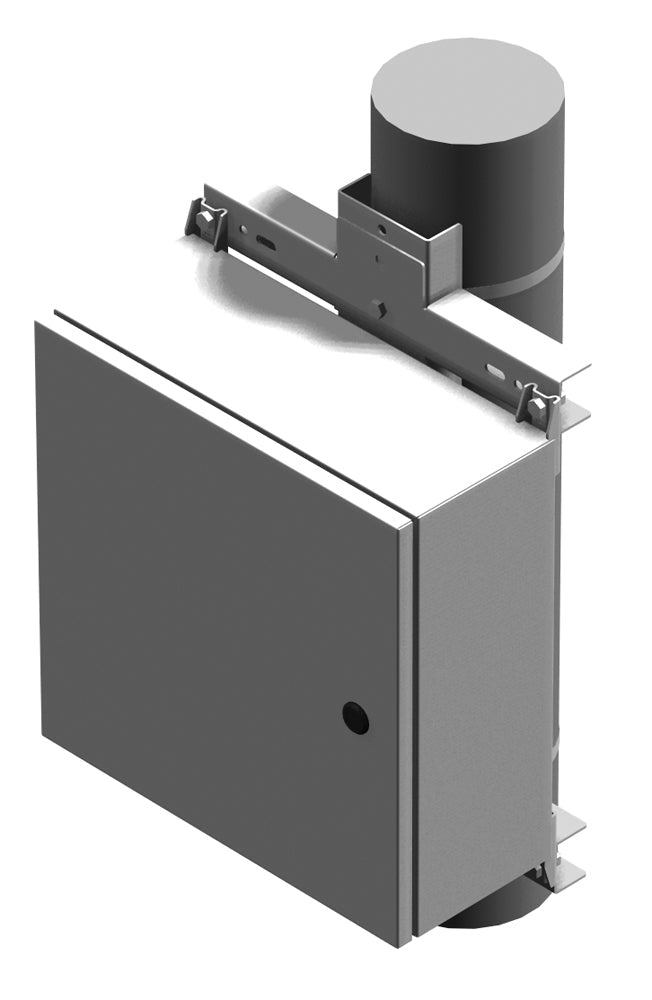

Hammond Pole Mounting Kit PMK Series Junction and Wallmount Style - Steel
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
Regular price
$39.24
Couldn't load pickup availability
Specifications
| Product Type | Enclosure Accessories |
|---|---|
| Application | Outdoor, Indoor |
Features
- Designed to mount outdoor rated enclosures - Hammond 1414N4, Eclipse, Eclipse Junior, HWHK, and 1418N4.
- Individual components allow users to choose the mounting configuration and/or components to purchase
- Note: Eclipse Series enclosures require the use of an external Eclipse Mounting Foot Kit (sold separately)
- This pole mount kit is a 2 or 3-part system.
Choose Vertical Channel:
- The vertical channel can be lagged directly to a pole or attached using optional stainless steel straps
- A vertical channel prevents the enclosure from twisting. Can be used on pole diameters from 4" and up
Choose Horizontal Channel:
- Horizontal steel channels (sold in pairs) come with all hardware needed to secure the enclosure
Choose Straps (Optional):
- Stainless steel straps are sold separately in quantities of four (4)
- PMSTRAP40 straps are rated for 450 lbs each and can be used for pole diameters up to 11"
- PMSTRAP55 straps are rated for 250 lbs each and can be used for pole diameters up to 16"
Vertical Channel
| Use with Hammond Series | |||||
|---|---|---|---|---|---|
| Part No. | Description | 1414N4 | Eclipse Junior (EJ) | 1418N4/HWHK | Eclipse (EN4SD) |
| PMV1216GY | Qty 1 - Vertical Steel Channel | 12"-16" encl height | 12"-16" encl height | 12"-16" encl height | 12"-16" encl height |
| PMV2024GY | Qty 1 - Vertical Steel Channel | - | - | 20"-24" encl height | 20"-24" encl height |
| PMV3036GY | Qty 1 - Vertical Steel Channel | - | - | 30"-36" encl height | 30"-36" encl height |
| PMV4248GY | Qty 1 - Vertical Steel Channel | - | - | 42"-48" encl height | 42"-48" encl height |
Horizontal Channel
| Use with Hammond Series | |||||
|---|---|---|---|---|---|
| Part No. | Description | 1414N4 | Eclipse Junior (EJ) | 1418N4/HWHK | Eclipse (EN4SD) |
| PMH15GY | Qty 2 - Horizontal Steel Channel | 12"-16" encl width | 12"-16" encl width | 12"-20" encl width | 12"-16" encl width |
| PMH25GY | Qty 2 - Horizontal Steel Channel | - | - | 24"-30" encl width | 20"-24" encl width |
| PMH35GY | Qty 2 - Horizontal Steel Channel | - | - | 36" encl width | 30"-36" encl width |
Stainless Steel Straps
| Part No. | Description |
|---|---|
| PMSTRAP40 | Qty 4 - 0.50" x 39" length 316 stainless strap, supports up to 450 lbs, pole diameters up to 11" |
| PMSTRAP55 | Qty 4 - 0.31" x 55" length 316 stainless strap, supports up to 250 lbs, pole diameters up to 16" |
