Type 12/4, 4X Handle Kits MHK Series

Specifications

Specifications

Product Type	Enclosure Accessories
Application	Outdoor, Indoor

Description

Features

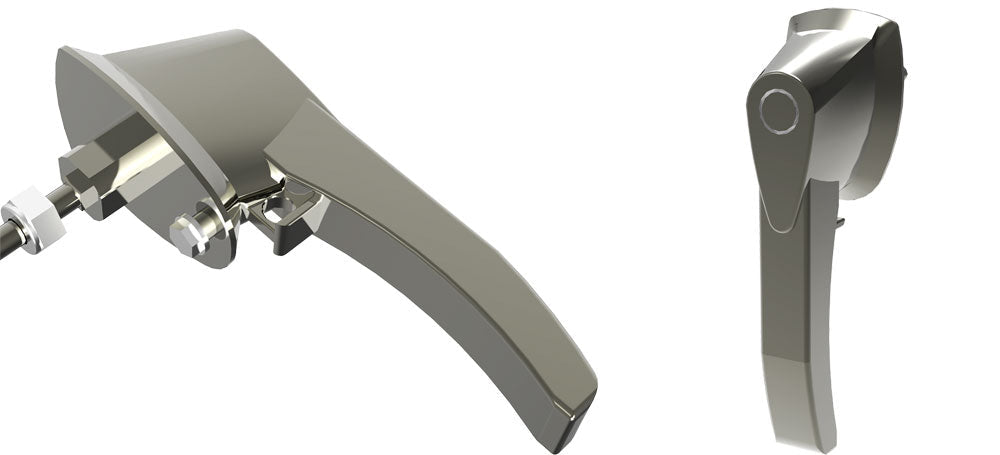

• • • Durable zinc die-cast or stainless steel
    • Removable handle stop for clockwise / counter-clockwise operation

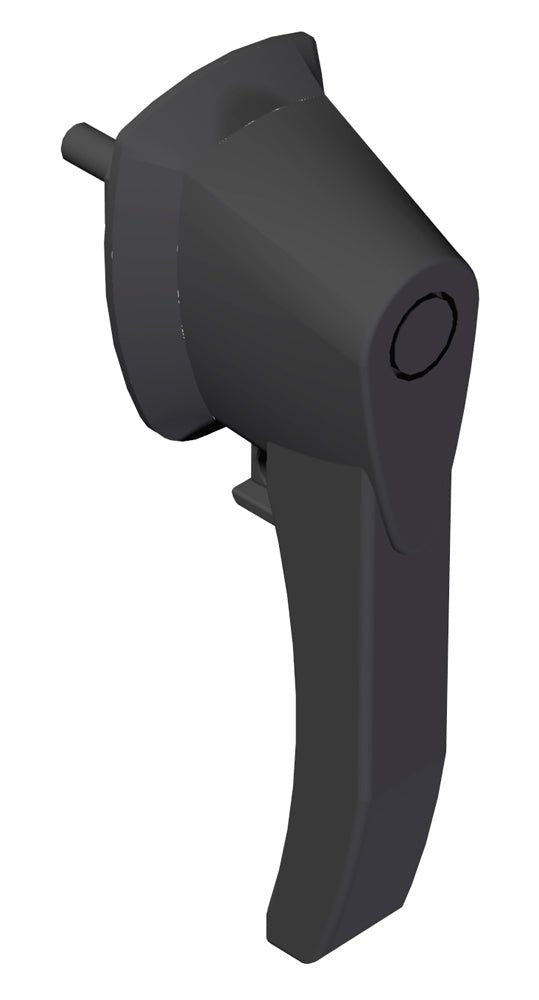

    • Textured powder coat Black finish on zinc cast handle
    • Maintains NEMA rating of the enclosure
    • Padlock "trigger" design for security requirements
    • Optional key lock or defeater available (key lock versions include 2 keys)
    • The handle can be used on Hammond enclosures as field installation (1418, 1422, UHD, HN4, HWHK) with a MINIMUM enclosure height of 24” (600mm)

Part No.	Description	Material	NEMA Rating
MHK1	6” PADLOCKING 1PT. LATCH	Zinc	12, 4
MHK2	6” PADLOCKING 3PT < 60”	Zinc	12, 4
MHK3	6” PADLOCKING 3PT > 60”	Zinc	12, 4
MHKD1	6” PADLOCKING DEFEATER 1PT LATCH	Zinc	12, 4
MHKD2	6” PADLOCKING DEFEATER 3PT < 60”	Zinc	12, 4
MHKD3	6” PADLOCKING DEFEATER 3PT > 60”	Zinc	12, 4
MHKL1	6” KEYED PADLOCKING 1PT LATCH	Zinc	12, 4
MHKL2	6” KEYED PADLOCKING 3PT < 60”	Zinc	12, 4
MHKL3	6” KEYED PADLOCKING 3PT > 60”	Zinc	12, 4
MHK1SS	6” SS PADLOCKING 1PT LATCH	316 SS	4X
MHK2SS	6” SS PADLOCKING 3PT LATCH < 60”	316 SS	4X
MHK3SS	6” SS PADLOCKING 3PT LATCH > 60”	316 SS	4X
MHKD1SS	6” SS PADLOCKING DEFEATER 1PT LATCH	316 SS	4X
MHKD2SS	6” SS PADLOCKING DEFEATER 3PT < 60”	316 SS	4X
MHKD3SS	6” SS PADLOCKING DEFEATER 3PT > 60”	316 SS	4X
MHKL1SS	6" SS KEYED PADLOCKING 1PT LATCH	316 SS	4X
MHKL2SS	6" SS KEYED PADLOCKING 3PT < 60”	316 SS	4X
MHKL3SS	6" SS KEYED PADLOCKING 3PT > 60”	316 SS	4X
