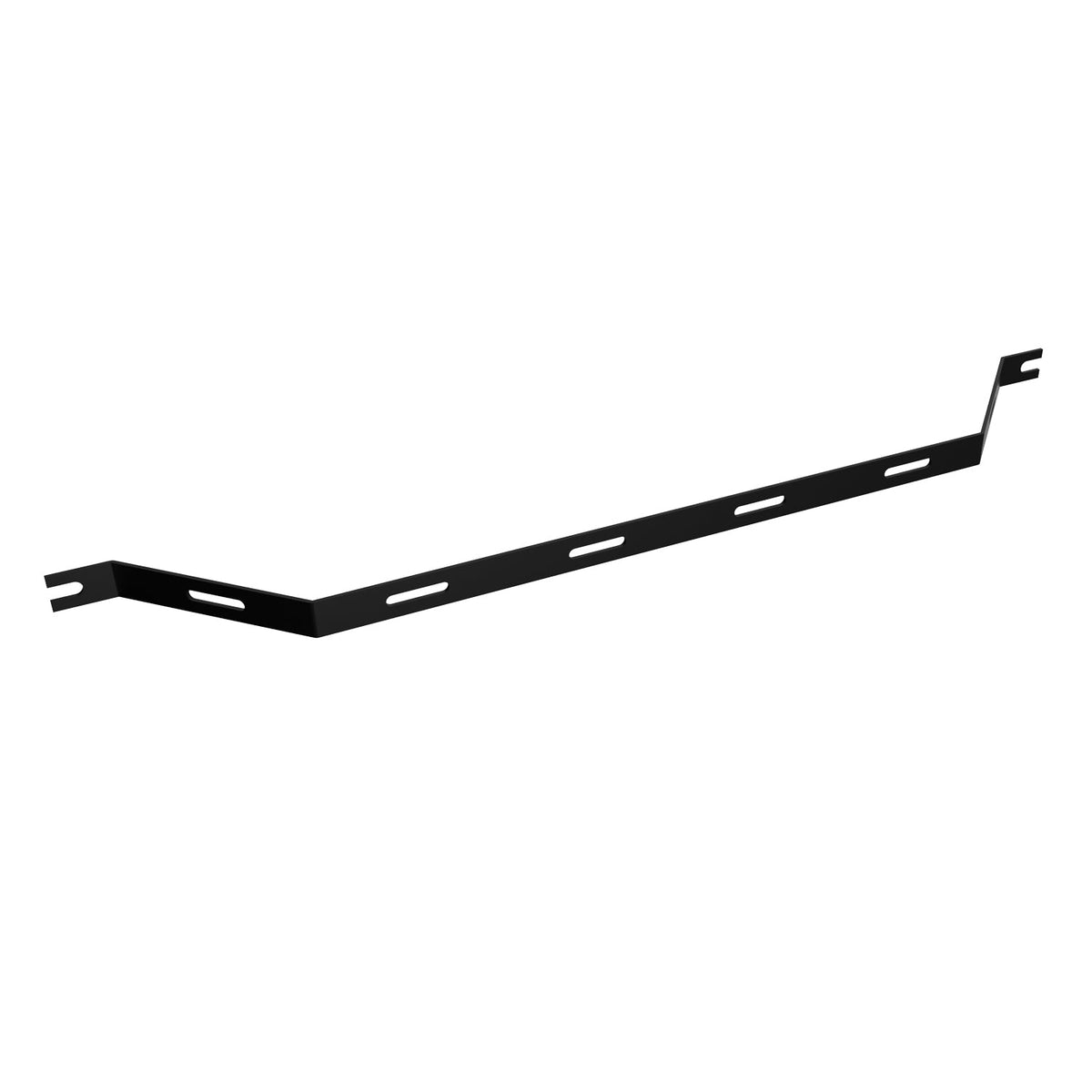

Hammond HCM190UBK1 19-Inch Flat Cable Support Bar with Straps
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$42.99
Couldn't load pickup availability
Specifications
| Product Type | Rack & Cabinet Accessories |
|---|---|
| Material | Painted Steel |
| Height | 0.62 |
| Width | 19.00 |
| Depth | 2.50 |
| Racks Mounting Dimensions Width | 19.00 |
| Racks Paint Color | Black |
Support cables behind 19-inch rack equipment with the Hammond HCM190UBK1 flat steel cable support bar. Its 45-degree offset provides 2.50 inches of depth, and the included hook-and-loop straps secure cable bundles.
- Black powder-coated steel construction.
- Low-profile 0.62-inch height and 19.00-inch width; mounts to EIA-310 rails without consuming a full rack unit.
- Hook-and-loop straps included.
- Rack mounting hardware, cabinet and cables sold separately.
RB-DC cabinet compatibility
Mounts to the 19-inch rails in RB-DC2442 and RB-DC4242 cabinets. Check clearance around equipment, connectors, cabinet doors and the PDU tray, and allow for the required cable bend radius. Rail adjustment may be required and reduces available equipment space.
Sold individually. See Downloads for the manufacturer drawing.
