Hammond PCJ Polycarbonate Screw Cover Enclosure – Solid Cover, Mounting Feet
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Polycarbonate |
| Series | Hammond PCJ Series |
| Application | Indoor, Outdoor, Waterproof, Wall Mountable, Junction Box |
| IP Equivalent | IP66 |
| Height | 4 |
| Width | 4 |
| Depth | 3 |
| Outer Dimensions | 3.95 × 3.95 × 3.31 in (H × W × D) |
| Cover Type | Screw Cover, Lift-Off Cover, Solid Cover, Gasketed Cover |
| Mount Type | Mounting Feet |
| Mounting Plate Included | No |
Hammond PCJ polycarbonate junction boxes protect controls and electrical components indoors and outdoors. This configuration has a solid lift-off screw cover and includes polycarbonate mounting feet.
- UV-stabilized light gray polycarbonate body with an oil-resistant gasket and 316 stainless steel cover screws.
- NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13; IP66.
- Nominal sizes 14 × 12 × 6 inches and smaller also carry Type 6P and IP68 ratings.
- UL 94 V-0 flammability and UL 746C f1 UV rating.
- Threaded brass inserts and panel mounting hardware are included; inner panels are sold separately.
The Height, Width and Depth selectors use Hammond’s nominal inch sizes. Measured enclosure dimensions are shown under Outer Dimensions for the selected part.
Compatible panels and mounting accessories for the selected size are listed under Accessories and sold separately.
For the nominal 16 × 14 × 8 inch size, the matching white steel panel is 14R1513, sold separately.

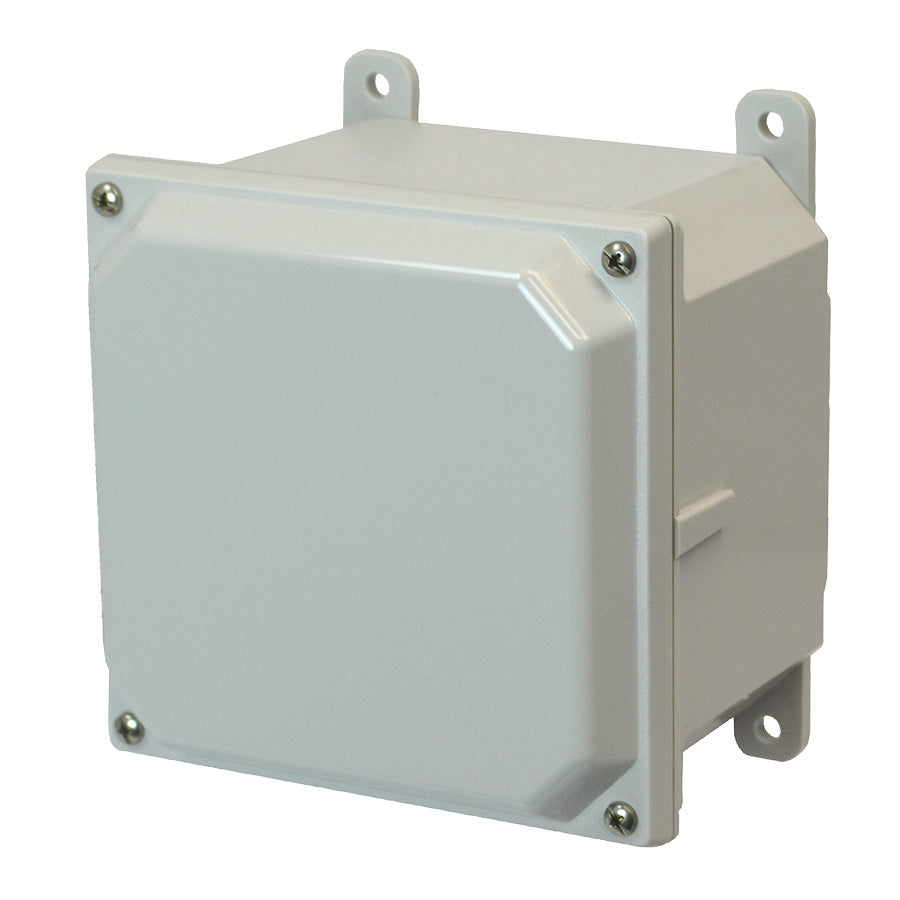

Representative series photo shown. Drawings, CAD files and specifications are under Downloads.
