Hammond PCJA0705 Aluminum Inner Panel for 8 x 6 in PCJ Enclosures

Specifications

Specifications

Product Type	Enclosure Accessories
Material	Aluminum
Height	6.75
Width	4.88
Mounting Plate Material	Aluminum
Mounting Plate Dimensions	6.75 × 4.88 in

Description

The Hammond PCJA0705 aluminum inner mounting panel fits PCJ enclosures with a nominal 8 × 6 inch face. Panel dimensions: 6.75 × 4.88 inches.

Unpainted 0.080 inch type 5052 H-32 aluminum panel. Panel mounting hardware is supplied with the enclosure. Enclosure sold separately.

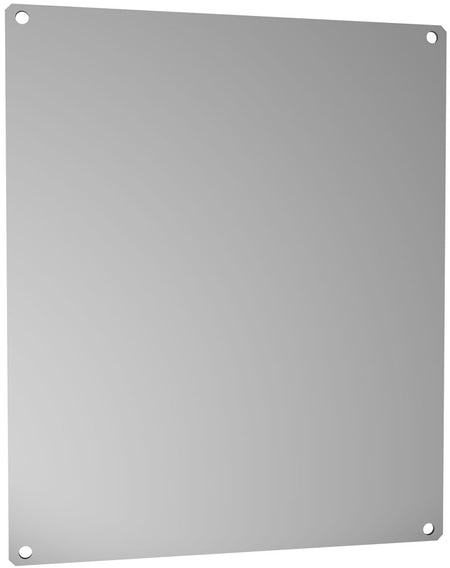

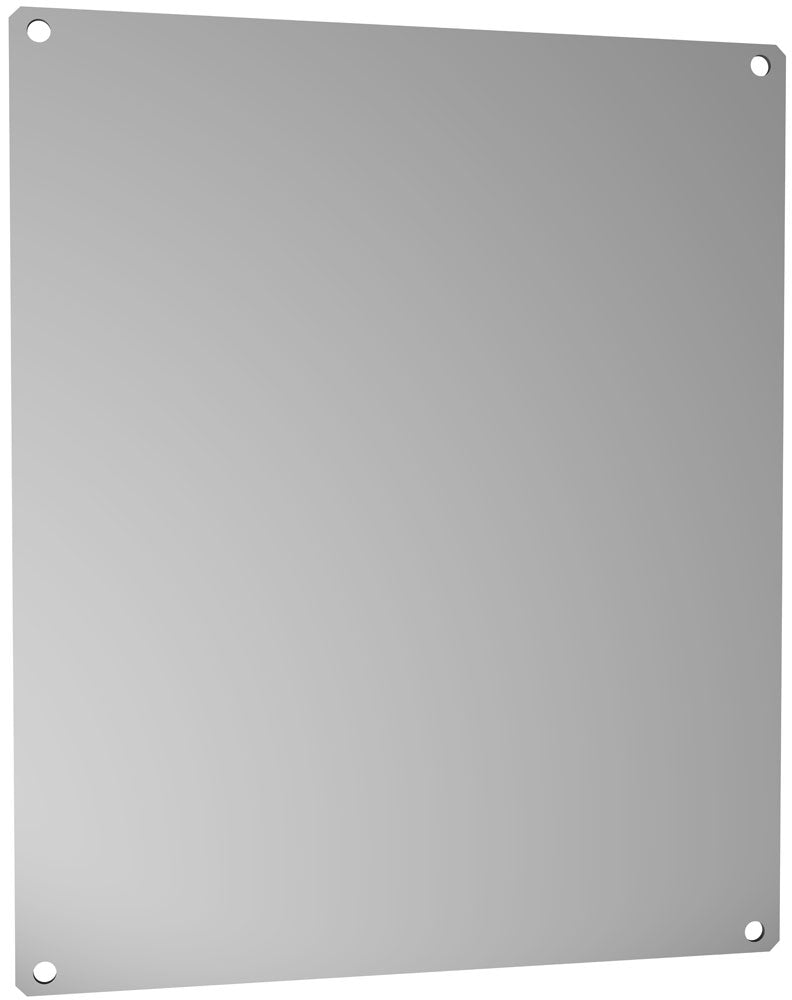

Representative panel image shows white steel; this panel is supplied in aluminum. Part dimensions and drawings are available under Downloads.

Downloads

Downloads for this variant

• PCJA0705 dimensional drawing (PDF)
• Series specifications (PDF)
• PCJA0705 2D CAD (DXF ZIP)
• PCJA0705 3D CAD (STEP ZIP)
