Hammond Flush Covers CSFC Series CS/CSKO Accessory

Specifications

Specifications

Product Type	Enclosure Accessories
Material	Painted Steel
Series	Hammond CS Series

Description

• Features

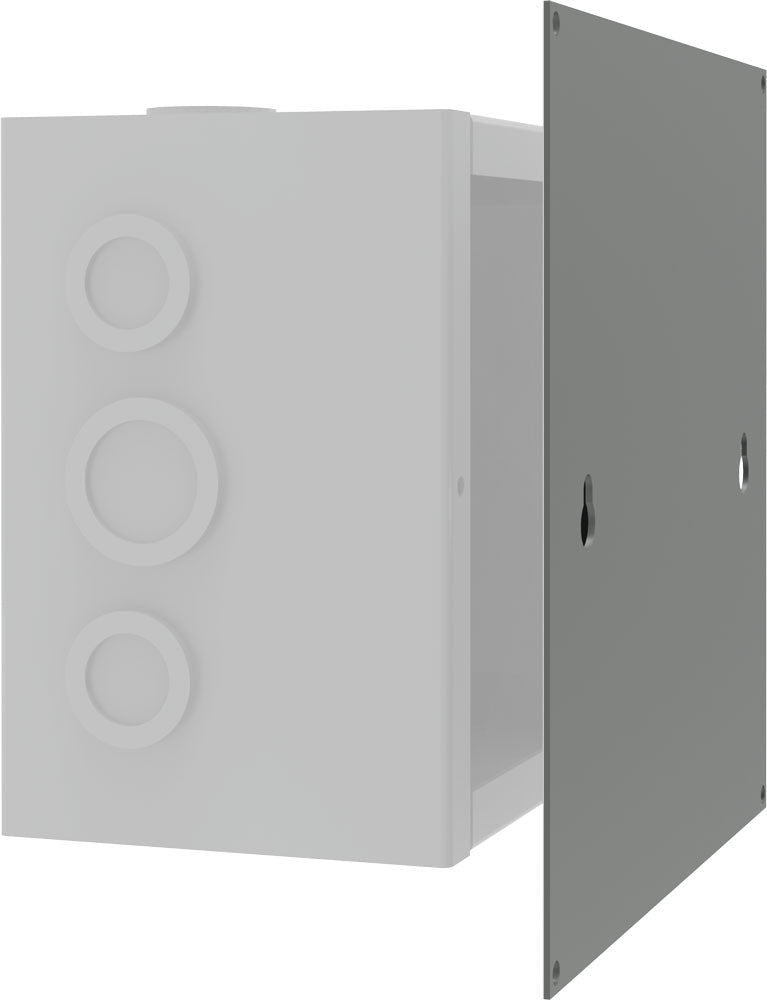

  • Oversized covers for CS/CSKO Series screw cover junction boxes
  • Designed for flush mount installation requirements
  • 1.5” taller and wider than standard covers
  • Constructed of 16 or 14 gauge steel
  • Painted ANSI 61 gray
  • Note - Boxes sold separately



Sku No.					Actual Size L x W	Fits Box Size H x W	Cover Gauge
CSFC66					7.50 x 7.50	6 x 6	16
CSFC86					9.50 x 7.50	8 x 6	16
CSFC88					9.50 x 9.50	8 x 8	16
CSFC108					11.50 x 9.50	10 x 8	16
CSFC1010					11.50 x 11.50	10 x 10	16
CSFC128					13.50 x 9.50	12 x 8	16
CSFC1212					13.50 x 13.50	12 x 12	16
CSFC1616					17.50 x 17.50	16 x 16	16
CSFC1812					19.50 x 13.50	18 x 12	16
CSFC1818					19.50 x 19.50	18 x 18	16
CSFC2418					25.50 x 19.50	24 x 18	14
CSFC2424					25.50 x 25.50	24 x 24	14
