Hammond PPG Rack Fan Panels, 230 VAC

Specifications

Specifications

Product Type	Rack & Cabinet Accessories
Material	Painted Steel
Fan Count	2
Airflow (CFM)	210
Noise Level	60 dB
Power Consumption	44 W at 50 Hz; 42 W at 60 Hz
Electrical Connection	115 VAC plug not included; requires a suitable 230 VAC connection
Package Contents	Rack panel with 2 installed fans, rear guards and power cord
Voltage	230 VAC, 50/60 Hz
Power Cord Length	72 in
Rack Units	3U
Mounting Height (in)	5.25
Mounting Width (in)	19
Racks Paint Color	Black

Description

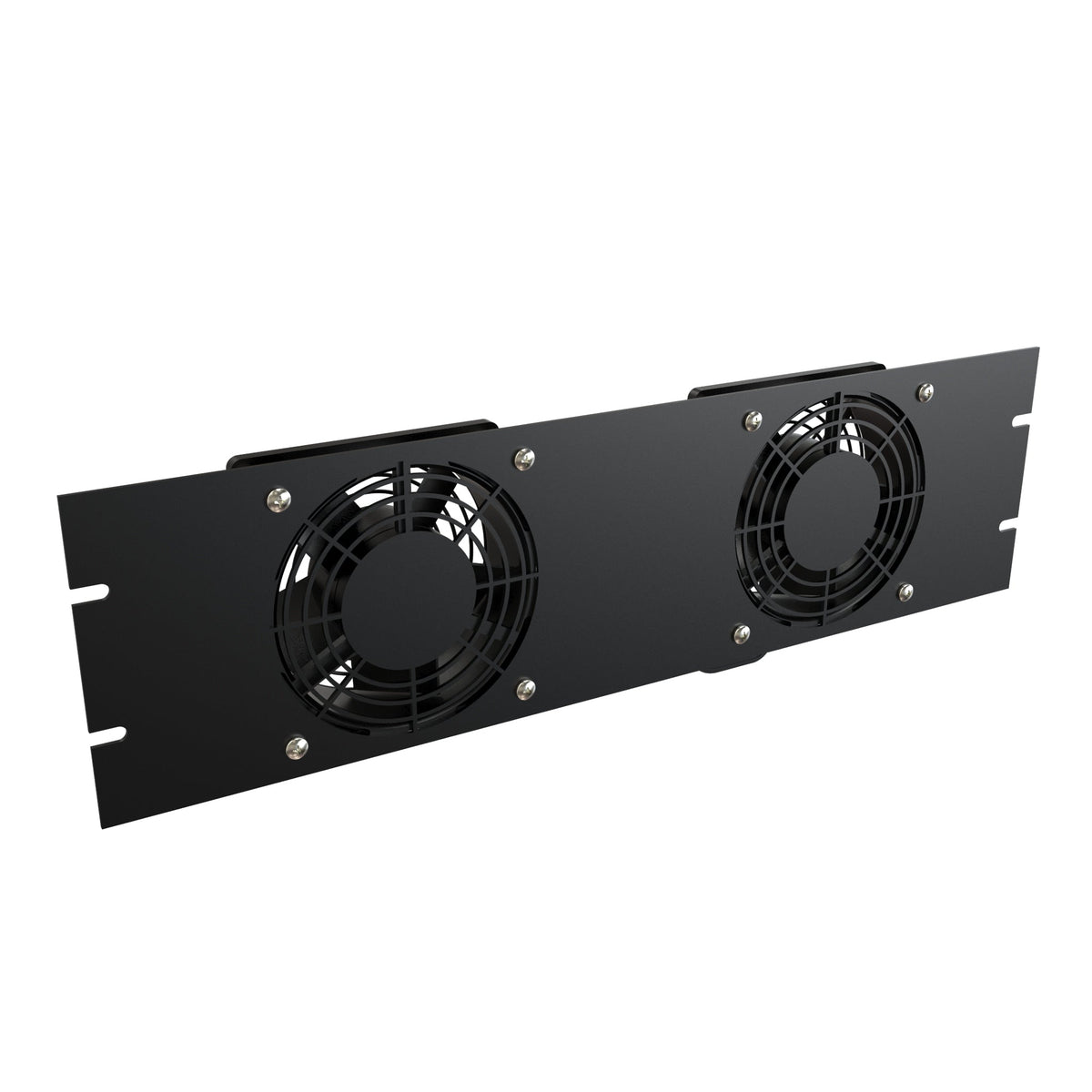

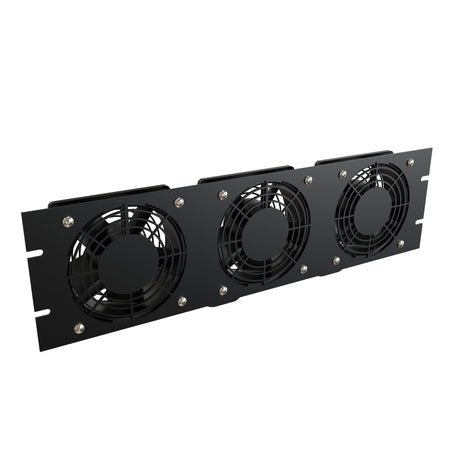

Preassembled 3U exhaust cooling panels for standard 19-inch racks, powered by 230 VAC at 50/60 Hz. Choose two fans for 210 CFM or three fans for 315 CFM.

Includes installed fans, integral front finger protection, rear guards and a 72 in power cord. These 230 VAC models do not include a 115 VAC plug; provide a suitable supply connection. Plan an unobstructed intake and exhaust path. Rack mounting hardware is ordered separately.

Hammond product information

Accessories

Additional Accessories

• Hammond M6 Screw and Cage Nut Kits — $74.99
• Hammond Mounting Screw and Cage Nut — $18.63

Downloads

Downloads for this variant

• PPGPFPA230 Drawing
• Specification Sheet
