Hammond Eclipse Handles EHL Series
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
Regular price
$74.99
Couldn't load pickup availability
Specifications
| Product Type | Enclosure Accessories |
|---|---|
| Series | Hammond Eclipse Series |
| Application | Outdoor, Indoor |
Features
-
- Field installable.
- Interchangeable with standard quarter turn latches.
- Maintain NEMA, UL and CSA ratings as noted.
- Swing Adjustment Kit - provides a set of 3 replacement rollers when an Eclipse single door needs to swing in the opposite direction. For enclosures with handles up to 60" high, use one kit. For 72" enclosures, 2 kits required.

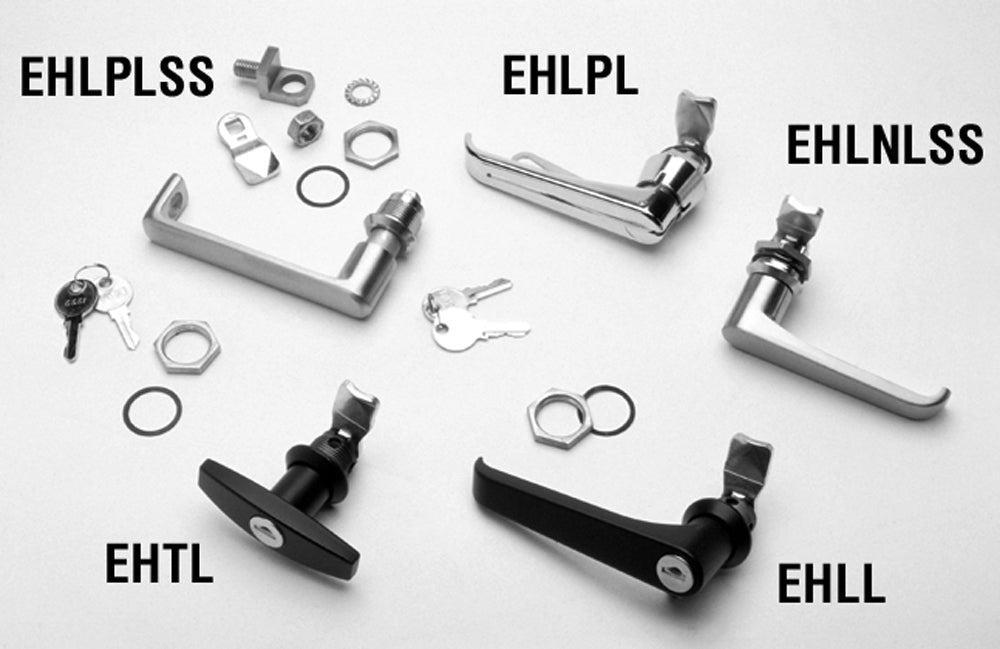

| Part No. | Description | Material | NEMA Rating | For Use With |
|---|---|---|---|---|
| EHTL | Key Locking T Handle | Zinc Die/Black | 12, 4 | ESP Swing Panel |
| EHLL | Key Locking L Handle | Zinc Die/Black | 12, 4 | EN4SD Series |
| EHLNL | Non Locking L Handle | Zinc Die/Black | 12, 4 | EN4SD Series |
| EHLPL | W Padlockable L Handle - padlock mounts onto handle | Zinc Die/Chrome | 12 | EN4SD Series |
| EHLPL2 | Padlockable L Handle - padlock mounts using adapter (included) below handle | Zinc Die/Chrome | 12, 4 | EN4SD Series |
| EHLPLSS | Padlockable L Handle | Stainless Steel | 12, 4, 4X | EJ Series |
| EHLNLSS | Non Locking L Handle | Stainless Steel | 12, 4, 4X | |
| EHLLSS | Locking L Handle | Stainless Steel | 12, 4, 4X | EJ Series |
