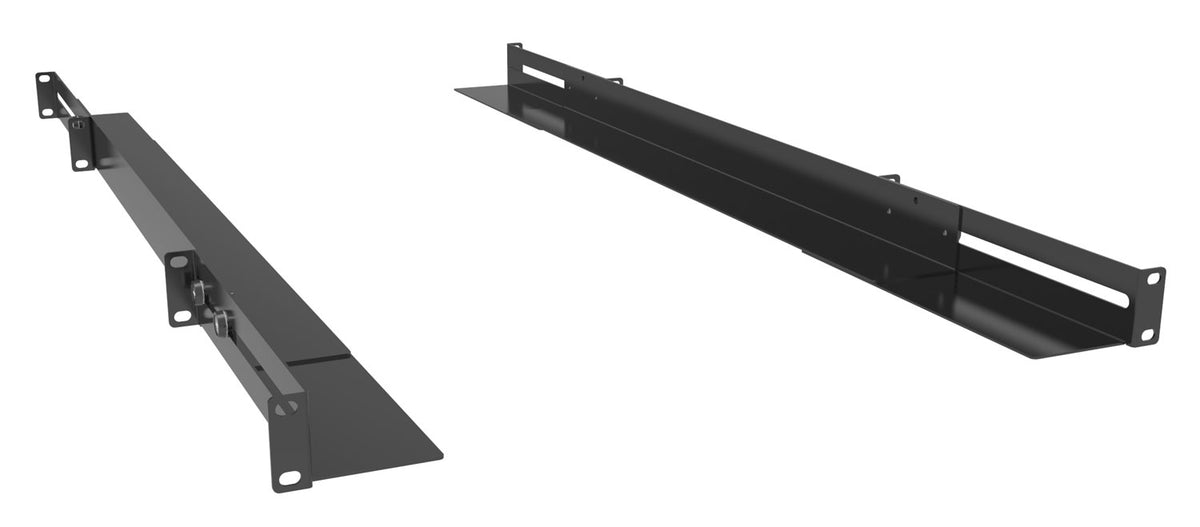

Hammond RAAB2436BK Adjustable Support Angles — 23.70–36 in, Pair

Specifications

Specifications

Product Type	Rack & Cabinet Accessories
Material	Painted Steel
Height (in)	1.72 in
Width (in)	3.14 in
Depth (in)	36.00 in
Package Contents	One pair of adjustable support angles
Max Load	200 lb per pair
Rack Units	1U
Minimum Mounting Depth (in)	23.70 in
Mounting Depth (in)	36.00 in

Description

Pair of adjustable support angles for equipment mounted in a four-post rack. Adjusts from 23.70 to 36.00 inches and requires front and rear pairs of EIA-compatible mounting rails. Rated to 200 lb per pair.

For a DC4R rack, set the front-to-rear rail spacing within 23.70–36.00 inches before installation. Check equipment support and clearance. Mounting hardware is selected to match the rack rail type.
