Hammond Rack Mount DIN Rail Adapters
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$130.99
Couldn't load pickup availability
Specifications
| Product Type | Rack & Cabinet Accessories |
|---|---|
| Material | Painted Steel |
| DIN Rail Dimensions | 17.18 W × 0.30 D in; DIN 3 top-hat profile |
| Intended Application | DIN-rail equipment; adjustable component depth up to 8.38 in |
| Package Contents | Rack brackets and DIN rail; ships unassembled |
| Max Load | 26 lb |
| Rack Units | 2U |
| Mounting Height (in) | 3.5 |
| Mounting Width (in) | 19 |
| Mounting Depth (in) | 11.25 |
| Racks Paint Color | Black |

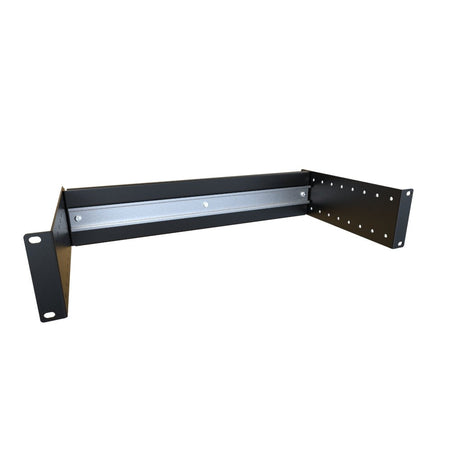

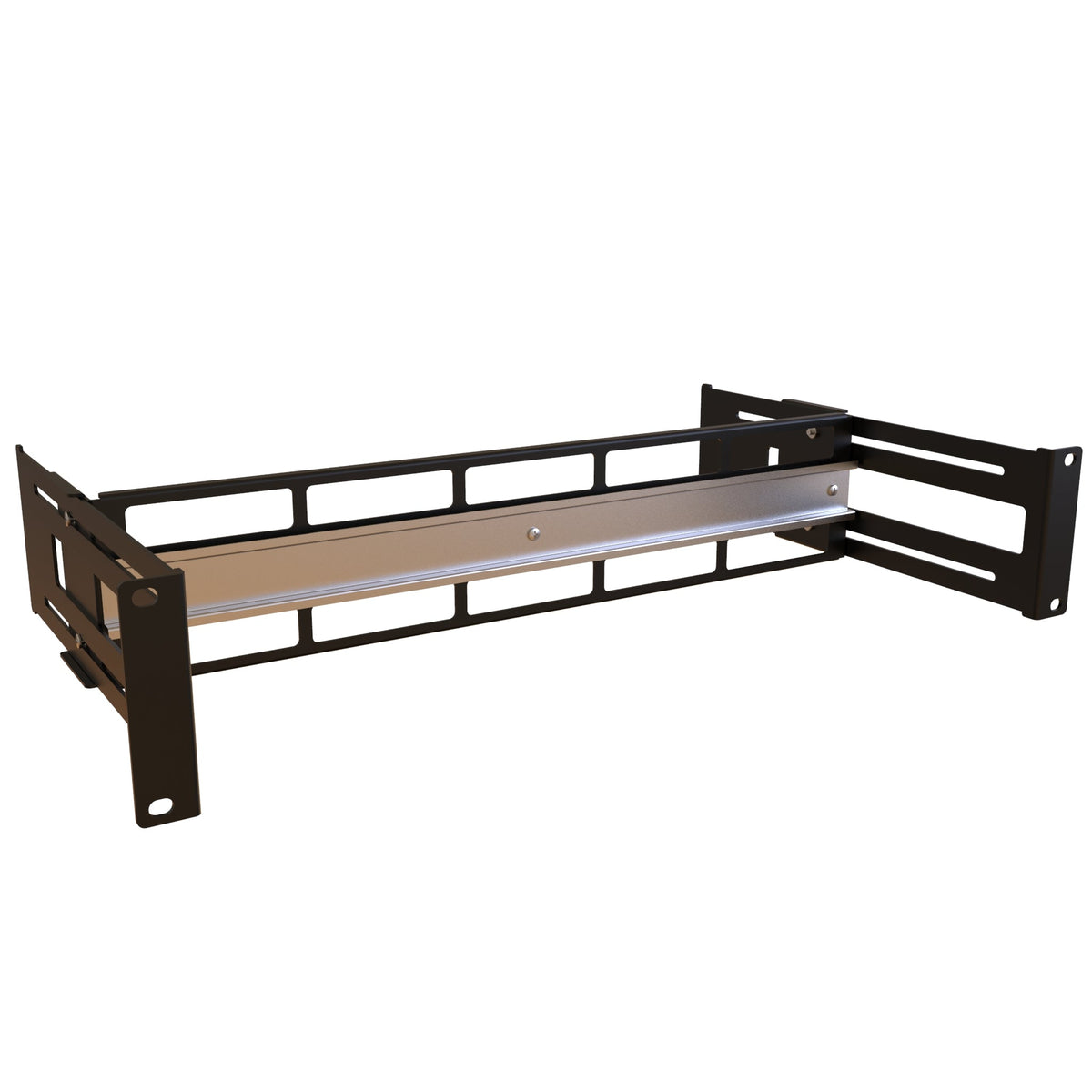

Install DIN-rail devices in 2U of standard 19-inch rack space. Choose the standard RMAD model rated for 26 lb or heavy-duty RMHD model rated for 100 lb.
Both include a DIN 3 top-hat rail and ship unassembled. RMAD allows up to 8.38 in of component depth adjustment; RMHD provides depth options up to 8.00 in. Allow room for installed components, wiring and cabinet doors. Rack mounting hardware is ordered separately.
