Hammond RB-VCM44 44U Vertical Cable Manager with Door

Specifications

Specifications

Product Type	Rack & Cabinet Accessories
Material	Painted Steel
Height (in)	82.00 in
Width (in)	6.00 in
Depth (in)	5.00 in
Rack Units	44U
Mounting Height (in)	77.00 in
Racks Paint Color	Black

Description

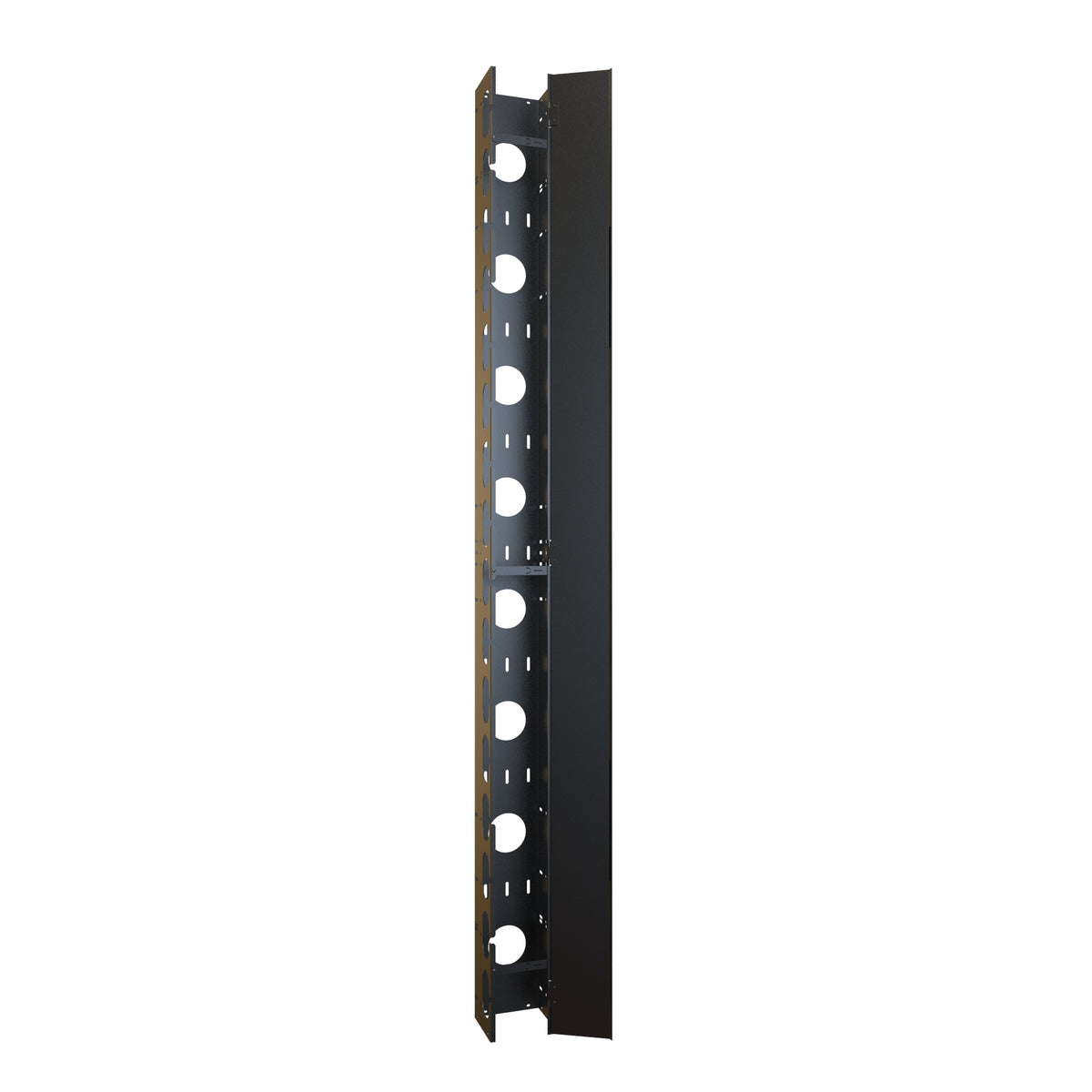

44U steel vertical cable manager with hinged magnetic-close door for compatible open frame racks. Hammond specifically lists the DC4R44 as a matching DC4R model. Side and rear cut-outs, cable lances and swing-away stabilizers provide access for cable installation.

Overall dimensions: 82.00 inches high × 6.00 inches wide × 5.00 inches deep. Mounting height: 77.00 inches. Check side clearance when using rack side panels or positioning racks next to one another.

Hammond product information

Downloads

Downloads for this variant

• RB-VCM44 — dimensional drawing (PDF)
• Series specifications (PDF)
• BUL10271 - RRCMD - VERT.CABLE MANG. ASS'Y (PDF)
