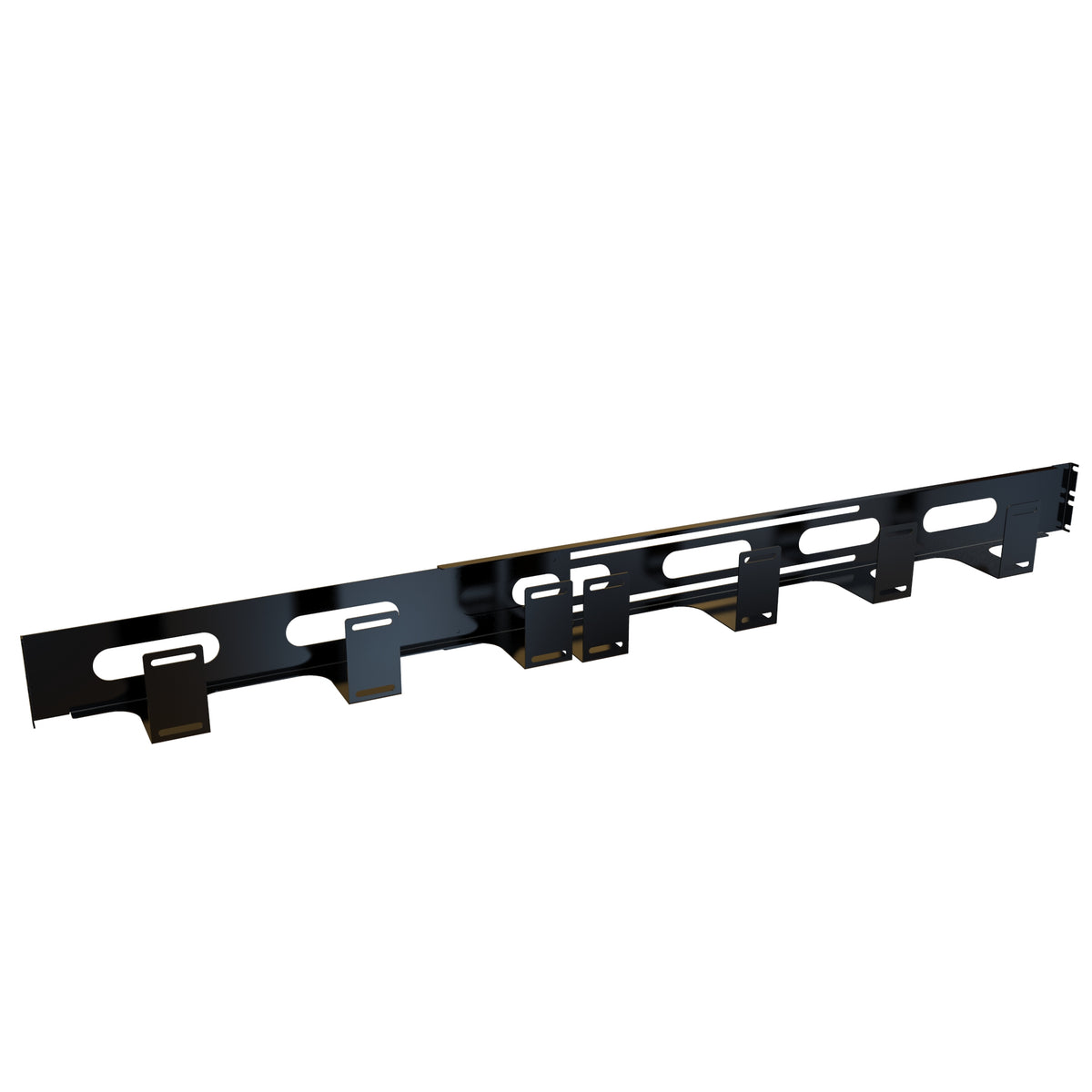

Hammond RDCM3348BK Front-to-Rear Cable Manager — 33.5–48.5 in

Specifications

Specifications

Product Type	Rack & Cabinet Accessories
Material	Painted Steel
Height (in)	3.00 in
Width (in)	3.95 in
Depth (in)	48.50 in
Rack Units	2U
Minimum Mounting Depth (in)	33.50 in
Mounting Depth (in)	48.50 in

Description

Adjustable front-to-rear cable manager spanning 33.50–48.50 inches. The 2U design mounts between two pairs of EIA-compatible rails and provides cable pass-through holes and tie-off slots.

For a DC4R rack, the installed rail spacing must be within 33.50–48.50 inches. This is a cable support accessory; it is not an equipment shelf.

Hammond product information

Downloads

Downloads for this variant

• RDCM3348BK — dimensional drawing (PDF)
• Series specifications (PDF)
• BUL86724 - RACK DEPTH CABLE MNGR INSTR. (PDF)
