Hammond RDRW Locking Rack Drawers, 22-in Nominal Depth
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$361.99
Couldn't load pickup availability
Specifications
| Product Type | Rack & Cabinet Accessories |
|---|---|
| Material | Painted Steel |
| Height | 3.5 |
| Width | 17.36 |
| Depth | 22.25 |
| Inner Dimensions | Usable 2.89 H × 21.33 D in |
| Max Load | 107 lb with rear support; 60 lb front-only |
| Racks Rack Units | 2U |
| Racks Mounting Dimensions Width | 19 |
| Racks Paint Color | Black |

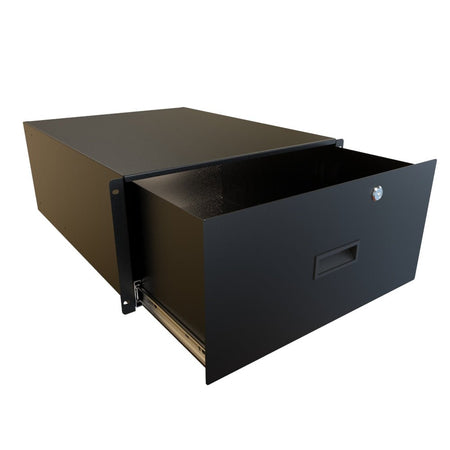

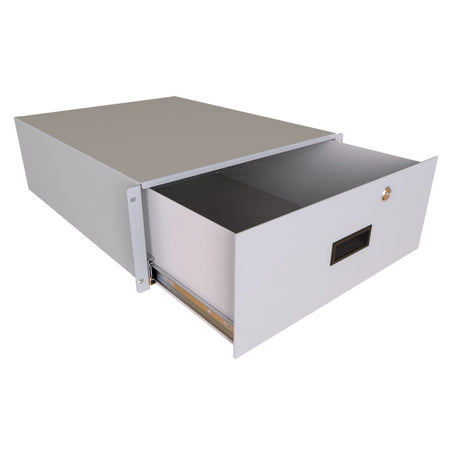

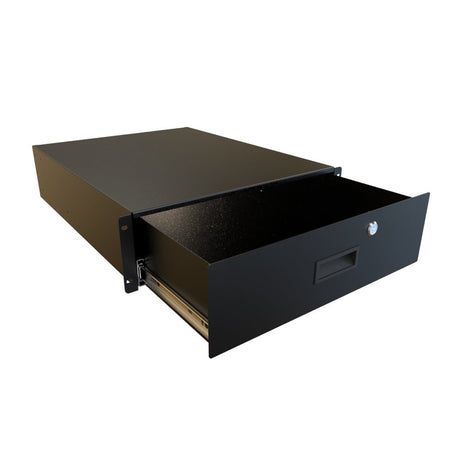

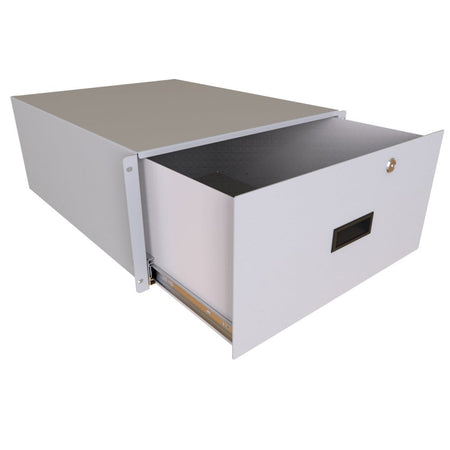

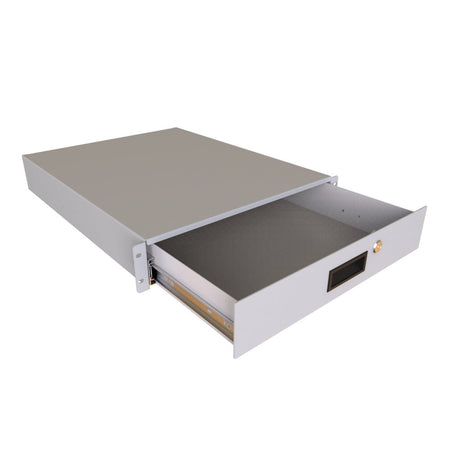

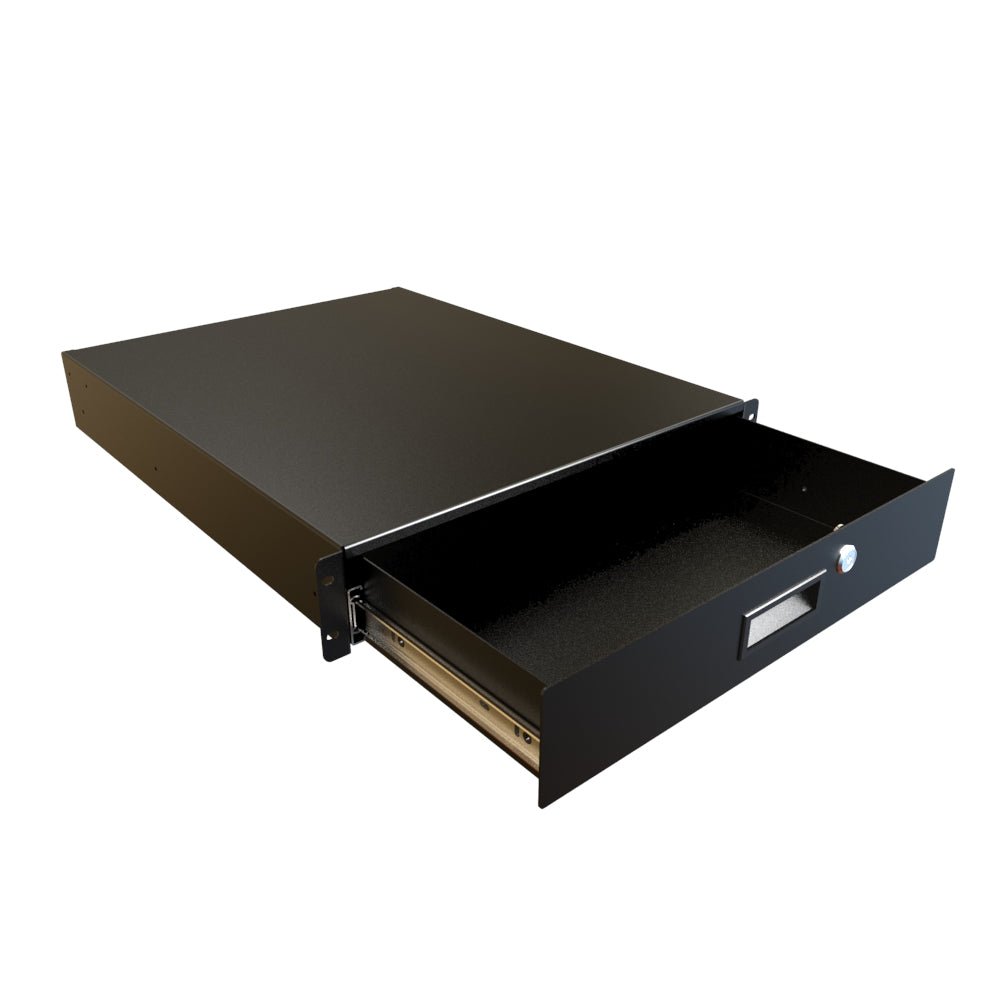

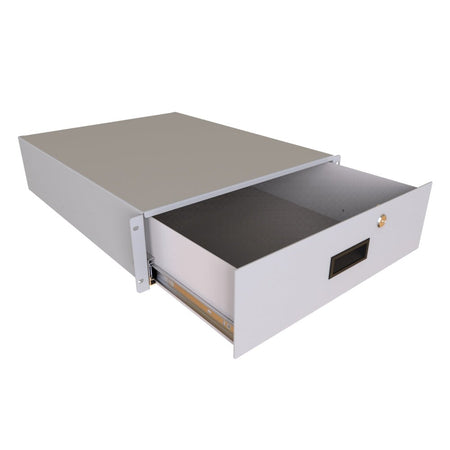

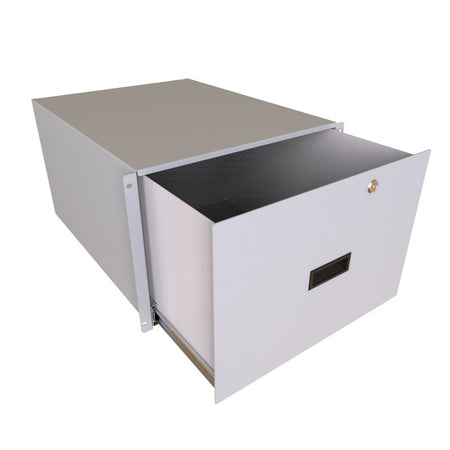

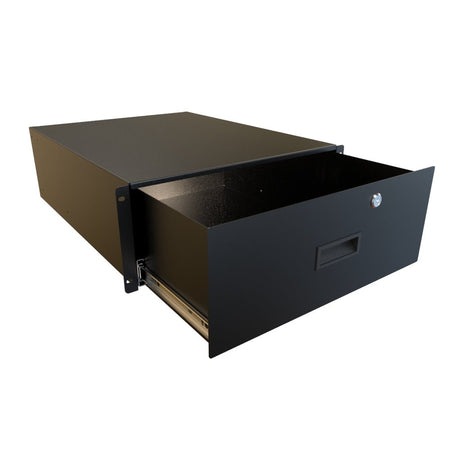

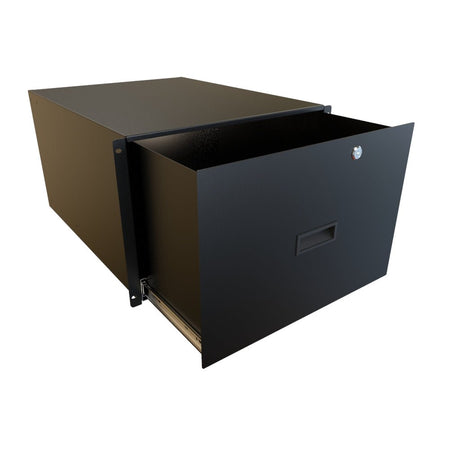

Locking steel storage drawers for standard 19-inch racks, with 22-inch nominal depth. Choose rack height and textured black or light gray finish. Includes slides, a lock with two keys, rear support brackets and mounting hardware with 10-32 rack screws.
Maximum load: 107 lb with rear support, or 60 lb with front-only mounting. Allow 22 inches of slide travel. Hammond lists this series among RB-DC cabinet accessories; position the rails for rear support and check door clearance.
For square-hole rails, use compatible 10-32 cage nuts with the supplied screws. Cage nuts are available in the optional hardware kit.
