Hammond RSUS Sliding Rack Shelves, 21 in Shelf Depth
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$242.99
Couldn't load pickup availability
Specifications
| Product Type | Rack & Cabinet Accessories |
|---|---|
| Material | Painted Steel |
| Height | 2.68 |
| Width | 18.89 |
| Depth | 21 |
| Inner Dimensions | Shelf 1.50 H × 16.64 W × 21 D in |
| Max Load | 114 lb |
| Racks Rack Units | 2U |
| Racks Mounting Dimensions Width | 19 |
| Racks Mounting Dimensions Min Depth | 12 |
| Racks Mounting Dimensions Max Depth | 21 |
| Racks Paint Color | Black |

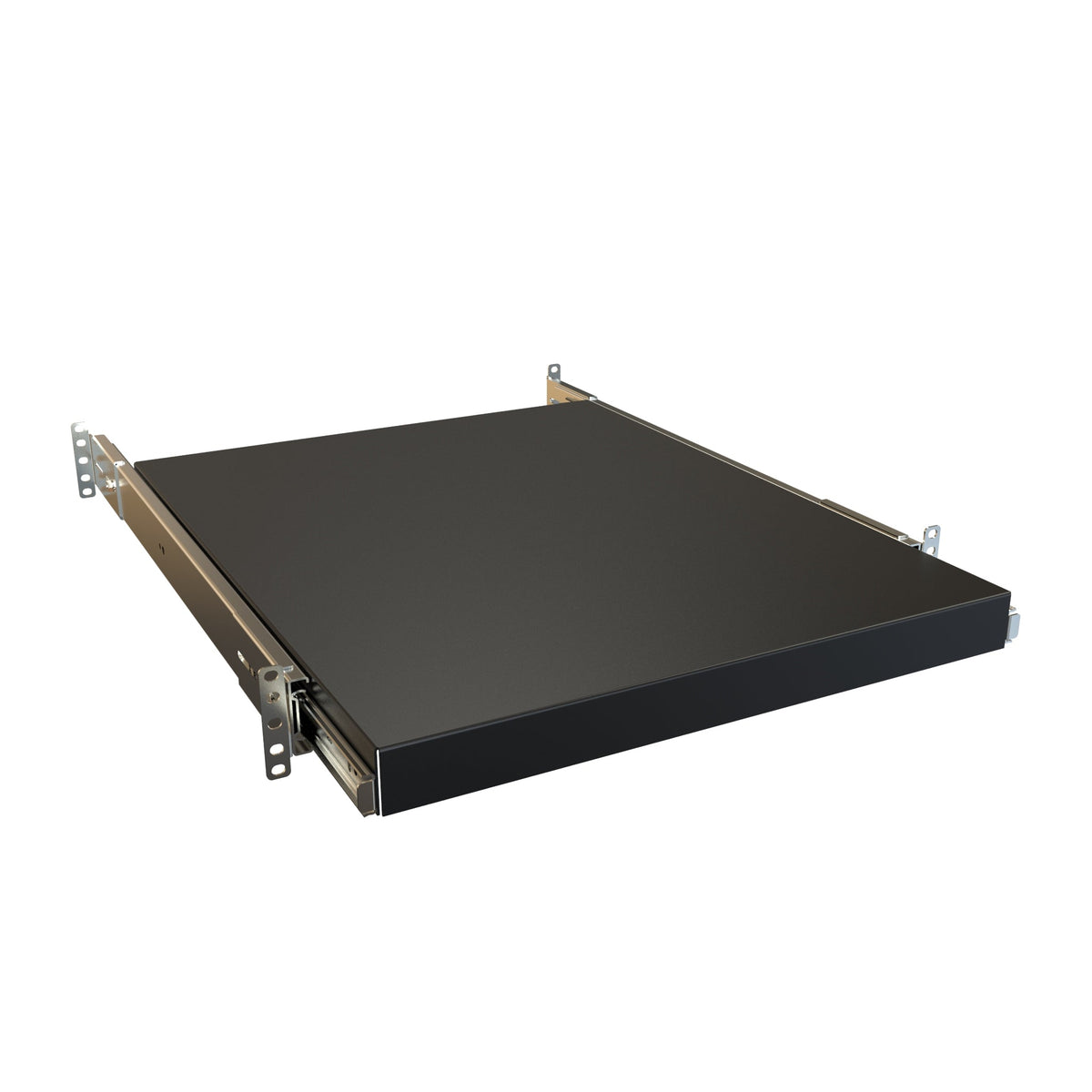

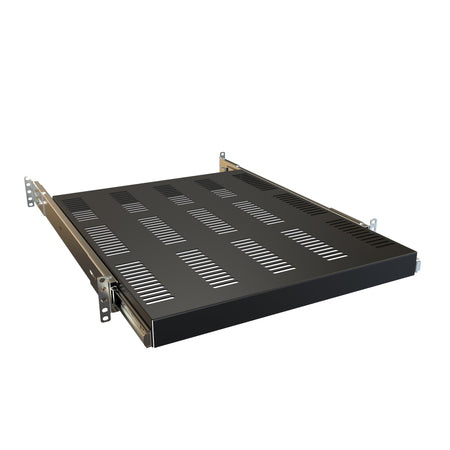

Sliding steel shelf for 19-inch racks with front and rear rails. Choose solid or vented. Shelf depth: 21 inches; slide travel: 20 inches; maximum load: 114 lb.
Adjustable rail mounting span: 12–21 inches. Occupies 2U and requires 3U of mounting clearance. Keep the adjacent space clear as directed in the installation instructions and allow room for cables and door movement.
Hammond lists this shelf series among RB-DC cabinet accessories. Set the cabinet rails within the shelf's mounting range and check door and cable clearance. Use matching screws and cage nuts for square-hole rails.
