Hammond RSUS Sliding Rack Shelves, 31 in Shelf Depth
Estimated to ship in 3–5 business days, subject to factory availability.
Contact Us for Expedited Shipping
Regular price
$298.99
Couldn't load pickup availability
Specifications
| Product Type | Rack & Cabinet Accessories |
|---|---|
| Material | Painted Steel |
| Height | 2.68 |
| Width | 18.89 |
| Depth | 31 |
| Inner Dimensions | Shelf 1.50 H × 16.64 W × 31 D in |
| Max Load | 85 lb |
| Racks Rack Units | 2U |
| Racks Mounting Dimensions Width | 19 |
| Racks Mounting Dimensions Min Depth | 18 |
| Racks Mounting Dimensions Max Depth | 28 |
| Racks Paint Color | Black |

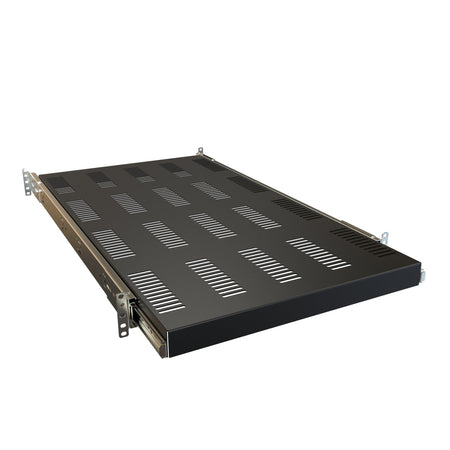

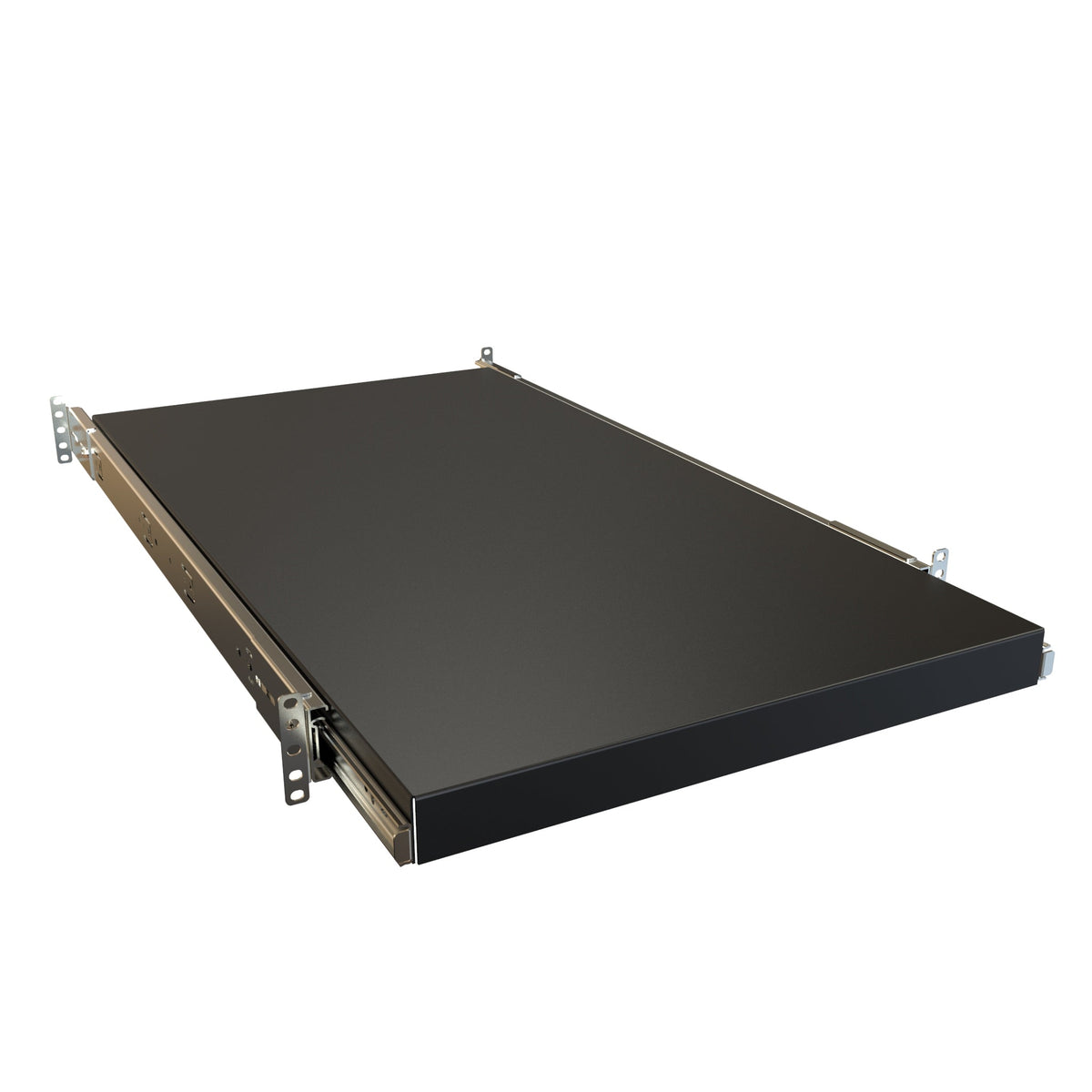

Sliding steel shelf for 19-inch racks with front and rear rails. Choose solid or vented. Shelf depth: 31 inches; slide travel: 28 inches; maximum load: 85 lb.
Adjustable rail mounting span: 18–28 inches. Occupies 2U and requires 3U of mounting clearance. Keep the adjacent space clear as directed in the installation instructions and allow room for cables and door movement.
For RB-DC cabinets, the 31-inch shelf exceeds the published 30.20-inch usable depth with PDU trays installed. Check the tray arrangement before selecting this model; published usable depth without PDU trays is 35.38 inches.
