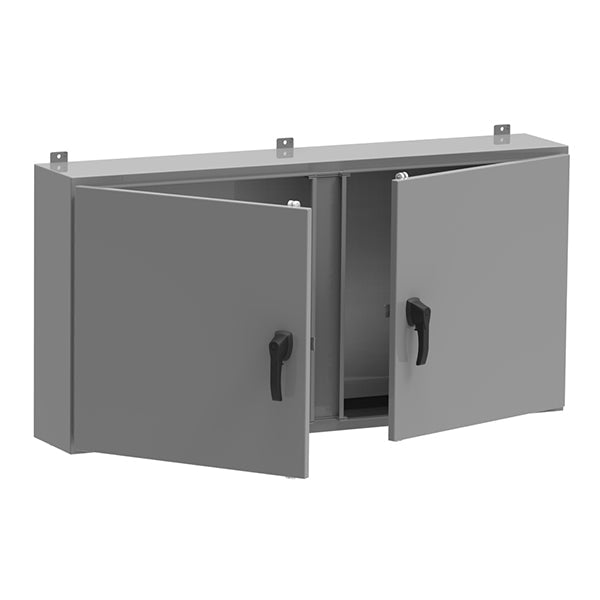

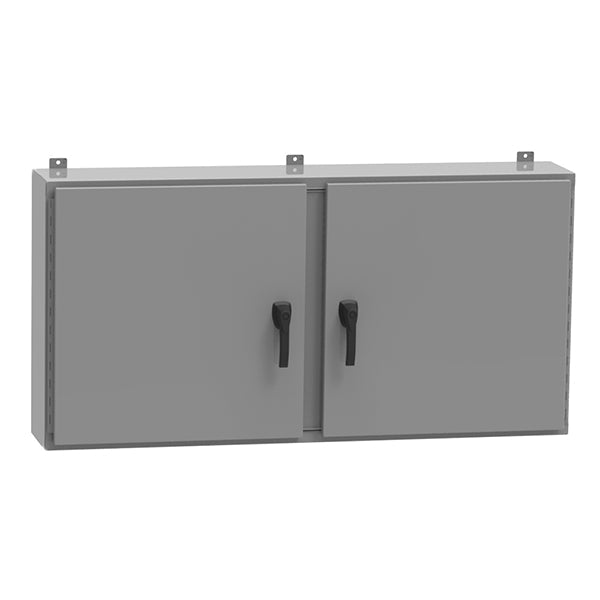

Hammond HN4 WM Series Continuous Hinge with 3pt Handle
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Painted Steel |
| Application | Indoor, Outdoor |
| IP Equivalent | IP66 |
| Height | 24 |
| Width | 42 |
| Depth | 8 |
| Cover Type | Hinged Cover, Gasketed Cover |
| Latch Type | Padlockable Latch, 3 Pt Handle |
| Mount Type | Wall Mount |
| Mounting Plate Included | Yes |
- Description
- Specifications
- NEMA Ratings
-
Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection and 3-pt padlocking door handle.
Standards
- UL 508A Type 3R, 4, and 12
- CSA Type 3R, 4, and 12
- NEMA Type 3R, 4, 12 and 13
- IEC 60529, IP66Â
-
Specifications
Please click a part number below to view the product specifications.
Product dimensions
Part Number
24x42x8 in. HN4WM24428GY 24x48x8 in. HN4WM24488GY 30x42x10 in. HN4WM304210GY 30x48x10 in. HN4WM304810GY 30x60x10 in. HN4WM306010GY 36x42x12 in. HN4WM364212GY 36x48x12 in. HN4WM364812GY 36x60x12 in. HN4WM366012GY 42x42x12 in. HN4WM424212GY 42x48x12 in. HN4WM424812GY 42x60x12 in. HN4WM426012GY 48x48x12 in. HN4WM484812GY -
Type 3R
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.
Type 4
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose-directed water); and that will be undamaged by the external formation of ice on the enclosure.Type 12
Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).
Type 13
Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
Additional Accessories
- Hammond Door Stop Kit — $124.66
