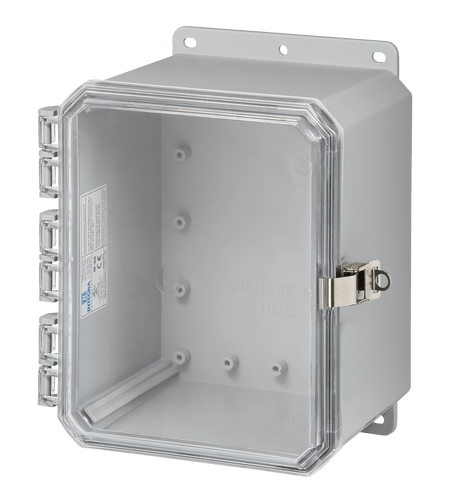

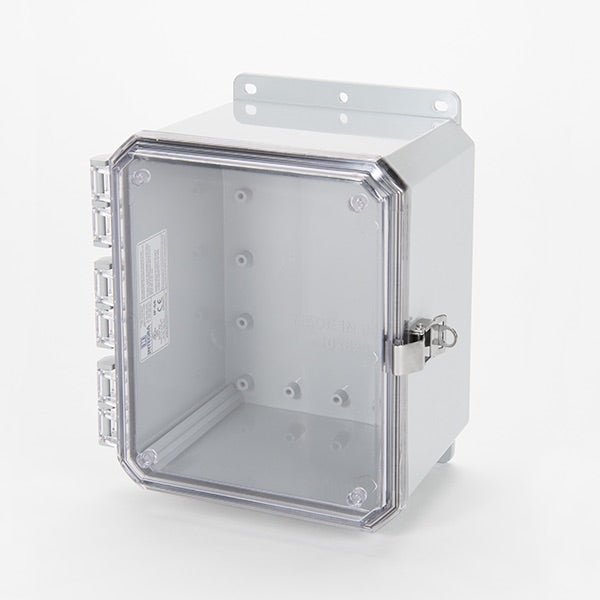

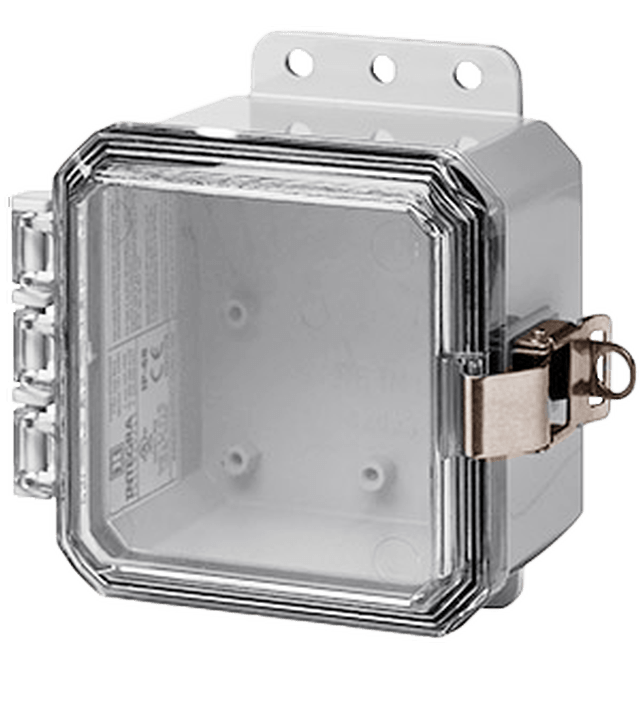

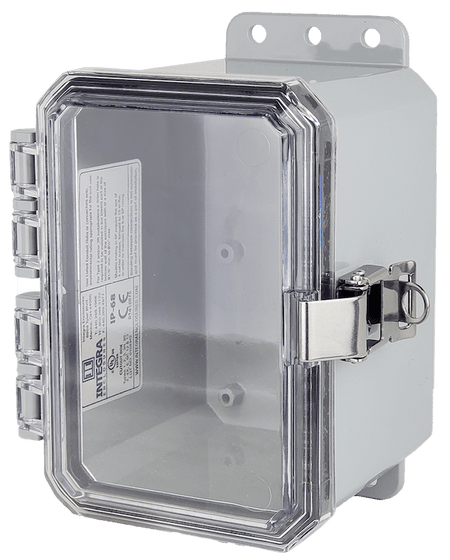

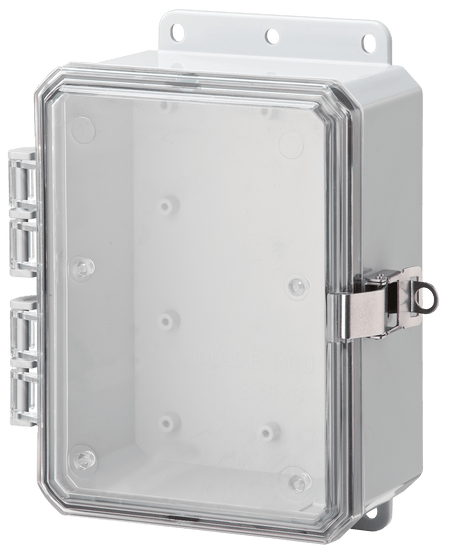

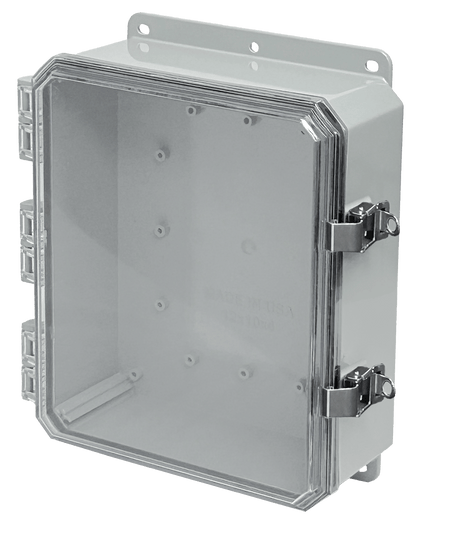

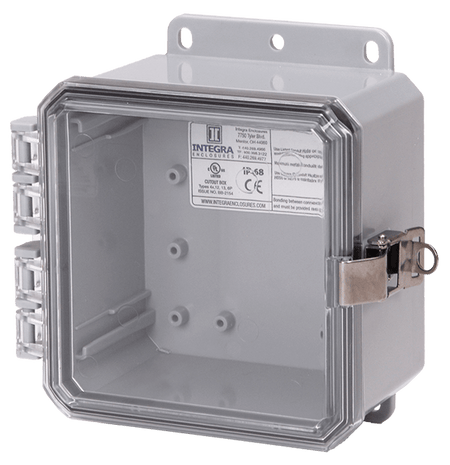

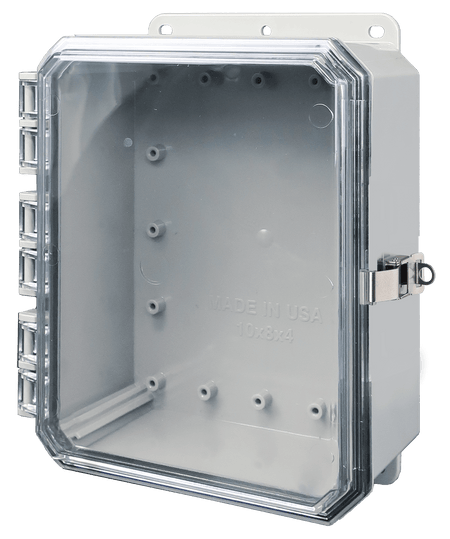

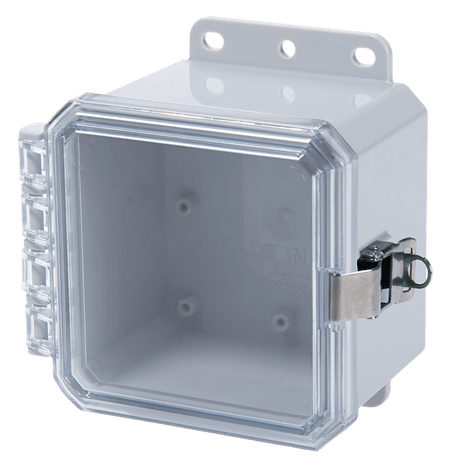

Integra Impact Series Polycarbonate Enclosure With Stainless Steel Locking Latch and Clear Cover
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Polycarbonate |
| Series | Integra Impact Series |
| Application | Outdoor |
| IP Equivalent | IP66 |
| Height | 4 |
| Width | 4 |
| Depth | 3 |
| Inner Dimensions | 4 x 4 x 2.93 |
| Cover Type | Clear Cover, Hinged Cover |
| Latch Type | Padlockable Latch |
| Mount Type | Integrated Flange |
| Mounting Plate Included | No |
A hinged polycarbonate enclosure with a clear cover, stainless steel locking latches, and molded-in mounting flanges. Offering ample space and reliable protection. This light gray enclosure is rated UL/cUL NEMA Type 4X and IP66, ensuring resistance to dust and water ingress in addition to rust and corrosion. Internal bosses on the rear wall accommodate versatile component mounting and the corner t-rails allow for completely adjustable panel height. The hydro-phobic urethane gasket ensures a secure environmental seal and the quality enclosure materials protect against corrosion and weathering. Engineered for a wide temperature Range: -31°F up to 266°F ( -35°C up to 130°C), it delivers exceptional impact resistance and UV stability, making it ideal for harsh indoor or outdoor applications.
Protection Rating: UL/cUL NEMA TYPE 4X IP66
