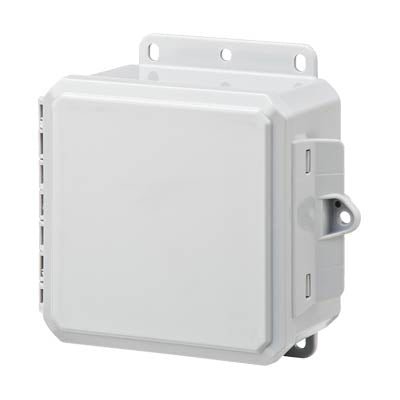

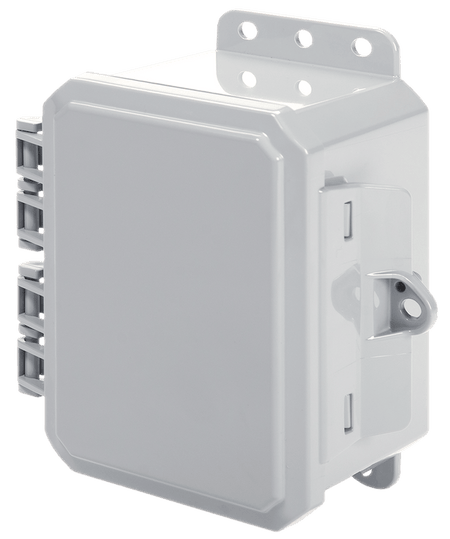

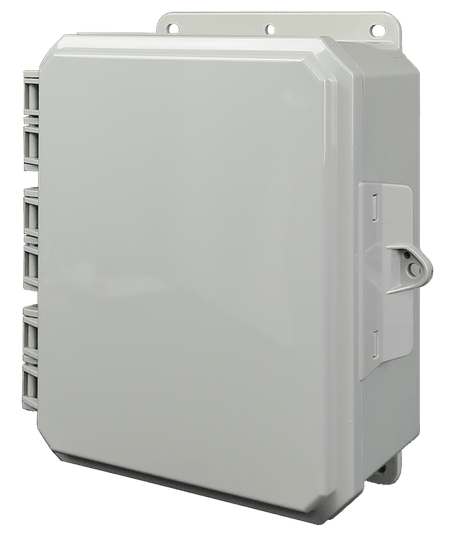

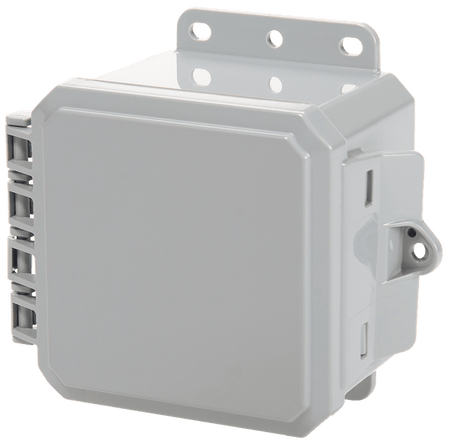

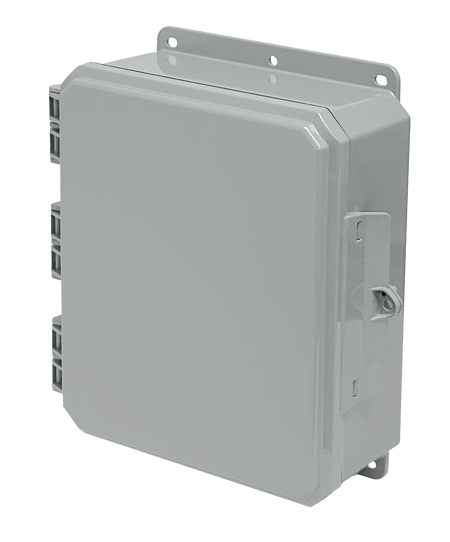

Integra Impact Series Polycarbonate Enclosure With Integrated Locking Latch and Opaque Cover
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Polycarbonate |
| Series | Integra Impact Series |
| Application | Outdoor, Indoor |
| IP Equivalent | IP68 |
| Height | 4 |
| Width | 4 |
| Depth | 3 |
| Inner Dimensions | 4 x 4 x 2.93 |
| Cover Type | Opaque, Hinged Cover |
| Latch Type | Padlockable Latch |
| Mount Type | Integrated Flange |
| Mounting Plate Included | No |
A rugged polycarbonate enclosure with a hinged opaque cover, integrated locking latch, and molded-in mounting flanges, creating a completely metal-free enclosure. Offering ample space and reliable protection. This light gray enclosure is rated UL/cUL NEMA Type 4X and IP66, ensuring resistance to dust and water ingress in harsh weather and industrial spray downs. Internal bosses on both the rear wall and lid accommodate versatile component mounting as well as the corner t-rails for adjustable panel height. The hydro-phobic urethane gasket ensures a secure environmental seal and the quality enclosure materials protect against corrosion and weathering. Engineered for a wide temperature Range: -31°F up to 266°F ( -35°C up to 130°C), it delivers exceptional impact resistance and UV stability, making it ideal for harsh indoor or outdoor applications.
Protection Rating: UL/cUL NEMA TYPE 4X IP66
