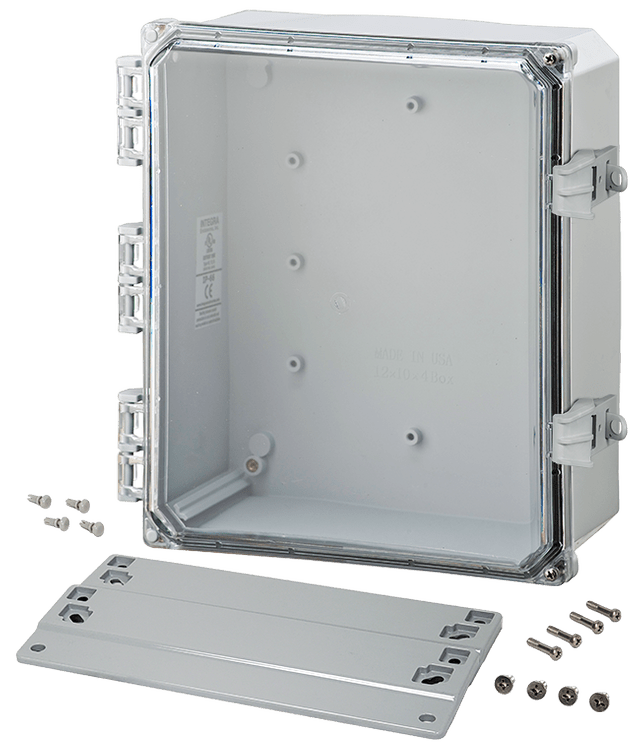

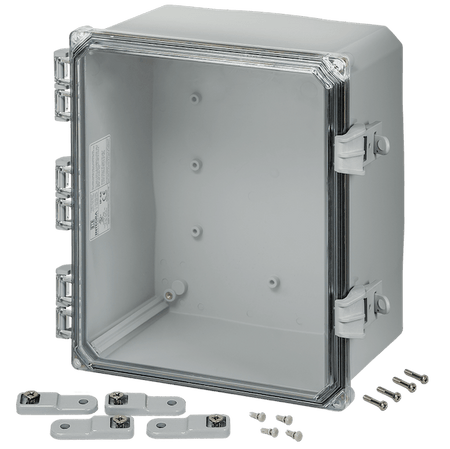

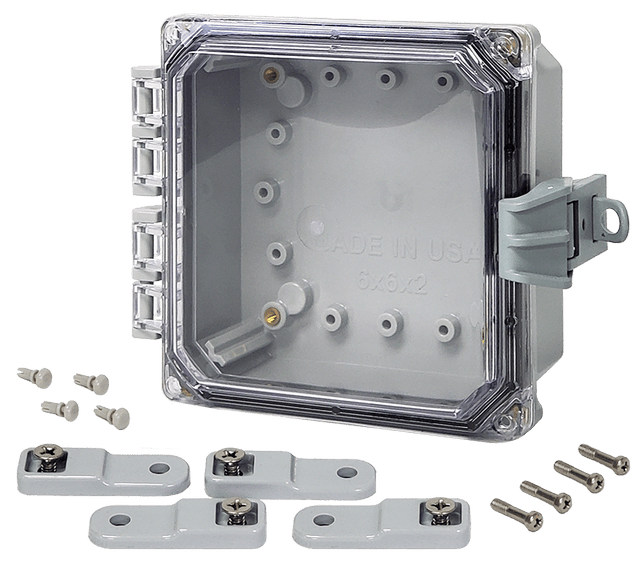

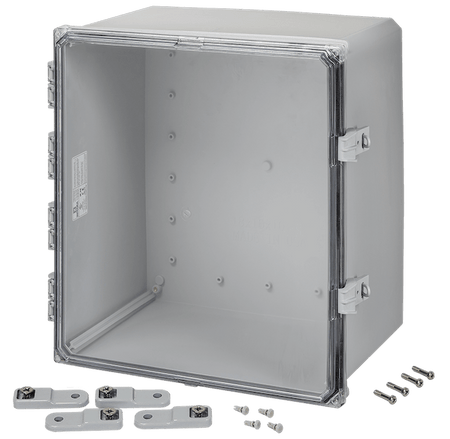

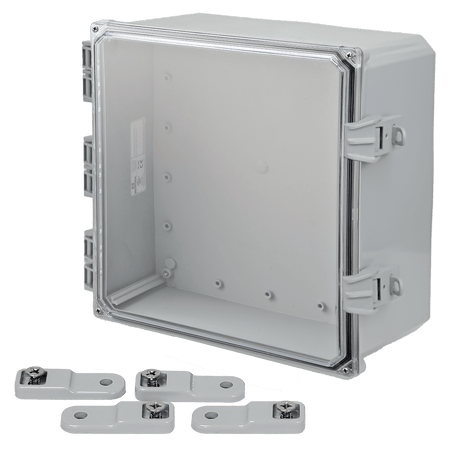

Integra Premium Series Polycarbonate Enclosure with Hinge Clear Non-Metallic Locking Latch Cover
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Polycarbonate |
| Series | Integra Premium Series |
| Application | Outdoor |
| IP Equivalent | IP66 |
| Height | 6 |
| Width | 6 |
| Depth | 4 |
| Inner Dimensions | 6 x 6 x 4.54 inches |
| Cover Type | Hinged Cover, Clear Cover |
| Latch Type | Padlockable Latch |
| Mounting Plate Included | No |
- Description
- Specifications
- NEMA Ratings
-
Traditional High Impact polycarbonate hinged enclosure with clear cover with non-metallic locking latch. ÊUL Type 4X (IP66)
-
Specifications
Please click a part number below to view the product specifications.
Product Dimensions
Part Number
6X6X4 in. H6064HCNL 8X6X4 in. H8064HCNL 8X8X4 in. H8084HCNL 10X8X2 in. H10082HCNL 10X8X4 in. H10084HCNL 10X8X6 in. H10086HCNL 12X10X4 in. H12104HCFNL 12X10X6 in. H12106HCNL 14X12X6 in. H141206HCNL 16X14X7 in. H161407HCNL 18X16X10 in. H181610HCNL -
Type 4X
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); that provides an additional level of protection against corrosion; and that will be undamaged by the external formation of ice on the enclosure.
Additional Accessories
- Integra Premium Series Mounting Panels — $13.95
- Integra Premium Series Swing Panels and Swing Panel Kits — $14.85
- Integra Din Rail Kits — $15.84
- Integra Pole Mounting Kit — $46.50
- Integra Vents & Fan Shroud Kits — $19.98
- Integra Impact Series Accessories — $0.00
No downloads available for this variant.
