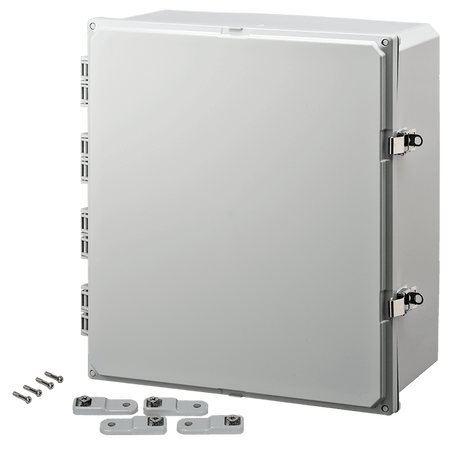

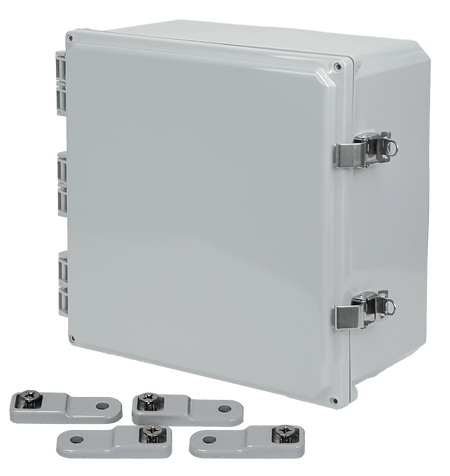

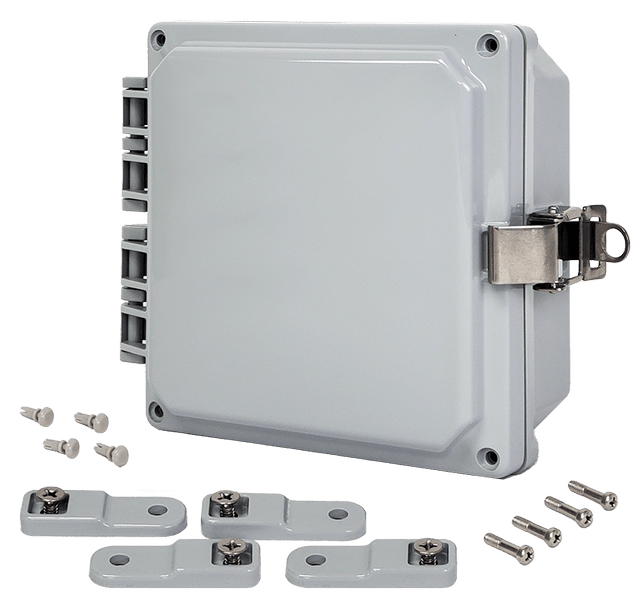

Integra Premium Series Polycarbonate Enclosure with Hinge Opaque Locking Latch Cover
Couldn't load pickup availability
Specifications
| Product Type | Enclosures |
|---|---|
| Material | Polycarbonate |
| Series | Integra Premium Series |
| Application | Outdoor |
| IP Equivalent | IP66 |
| Height | 6 |
| Width | 6 |
| Depth | 4 |
| Inner Dimensions | 6 x 6 x 4.54 |
| Cover Type | Hinged Cover |
| Latch Type | Padlockable Latch |
| Mount Type | Wall Mount |
| Mounting Plate Included | No |
- Description
- Specifications
- NEMA Ratings
-
Traditional High Impact polycarbonate hinged enclosure with opaque locking latch cover. ÊUL Type 4X (IP66)
-
Specifications
Please click a part number below to view the product specifications.
Product Dimensions
Part Number
6X6X4 in. H6064HLL 8X6X4 in. H8064HLL 8X8X4 in. H8084HLL 10X8X2 in. H10082HLL 10X8X4 in. H10084HLL 10X8X6 in. H10086HLL 12X10X4 in. H12104HLL 12X10X6 in. H12106HLL 14X12X6 in. H141206HLL 16X14X7 in. H161407HLL 18X16X10 in. H181610HLL -
Type 4X
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); that provides an additional level of protection against corrosion; and that will be undamaged by the external formation of ice on the enclosure.
Additional Accessories
- Integra Premium Series Mounting Panels — $13.95
- Integra Premium Series Swing Panels and Swing Panel Kits — $14.85
- Integra Din Rail Kits — $15.84
- Integra Pole Mounting Kit — $46.50
No downloads available for this variant.
