Integra Premium Series Polycarbonate Enclosure with Hinge Clear Locking Latch Cover and Mounting Flange

Specifications

Specifications

Product Type	Enclosures
Material	Polycarbonate
Series	Integra Premium Series
Application	Outdoor
IP Equivalent	IP66
Height	6
Width	6
Depth	2
Inner Dimensions	6 x 6 x 2.38
Cover Type	Hinged Cover, Clear Cover
Latch Type	Padlockable Latch
Mount Type	Wall Mount
Mounting Plate Included	No

Description

Premium Line

• Polycarbonate Enclosures, Premium Line
• UL/cUL NEMA TYPE 4X IP66
• Mounting Flange
• Stainless Steel Locking Latch
• Hinged
• Clear cover

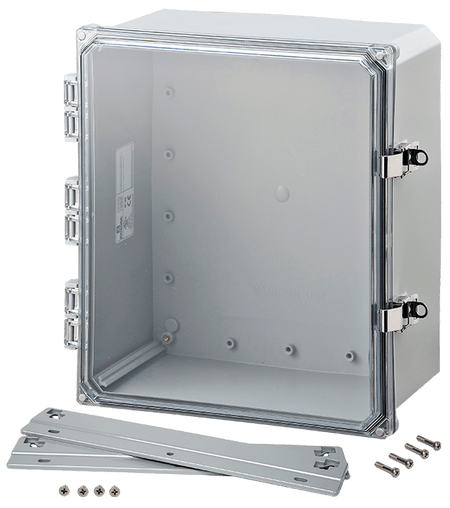

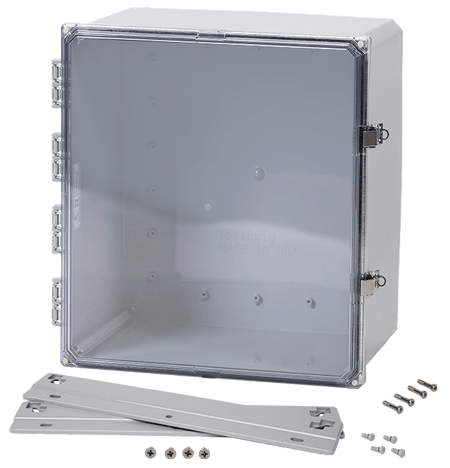

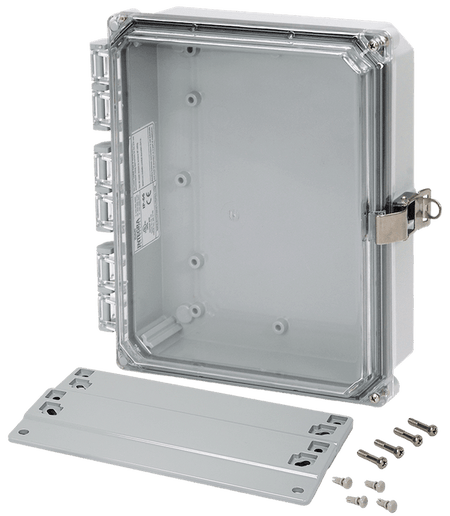

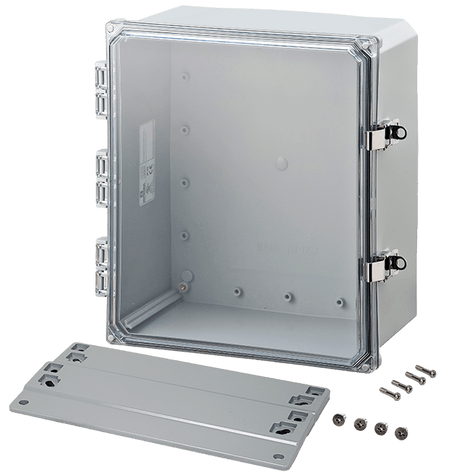

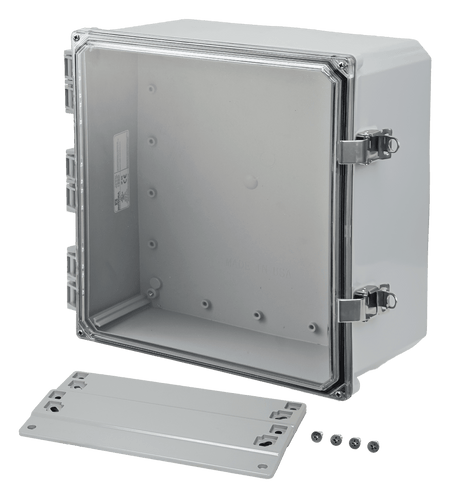

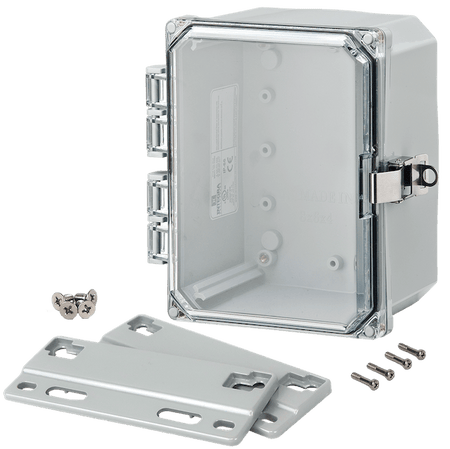

A premium polycarbonate enclosure designed for durability and versatile mounting. The enclosure is equipped with a clear hinged cover, stainless steel locking latch, and mounting flanges. It meets UL/cUL NEMA TYPE 4X and IP66 standards, ensuring protection against dust and water. The enclosure also has a temperature range of -40°F to 265°F and is tested for high impact and flammability resistance. Features include brass inserts for easy internal mounting and a hydro-phobic urethane gasket for a secure seal.

Protection Rating: UL/cUL NEMA TYPE 4X IP66

Accessories

Additional Accessories

• Integra Premium Series Mounting Panels — $13.95
• Integra Premium Series Swing Panels and Swing Panel Kits — $14.85
• Integra Din Rail Kits — $15.84
• Integra Pole Mounting Kit — $46.50

NEMA Rating

• 4X

Downloads

No downloads available for this variant.
