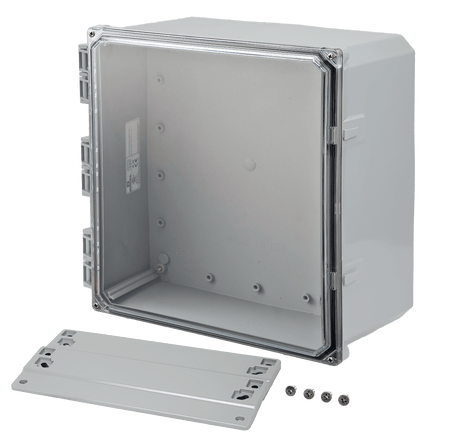

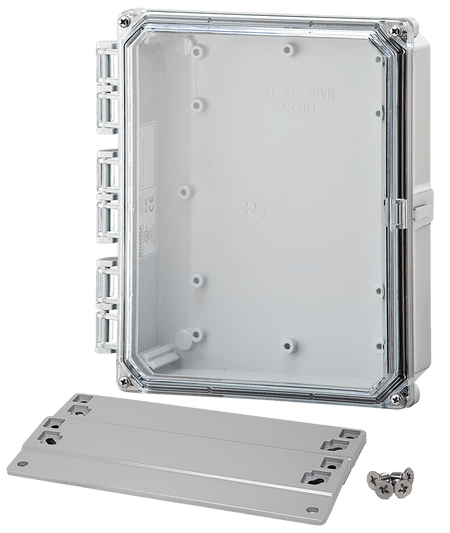

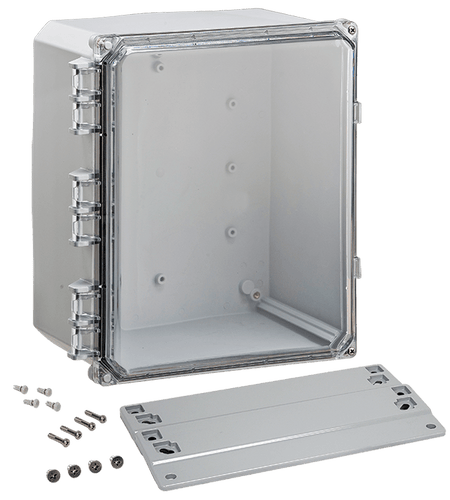

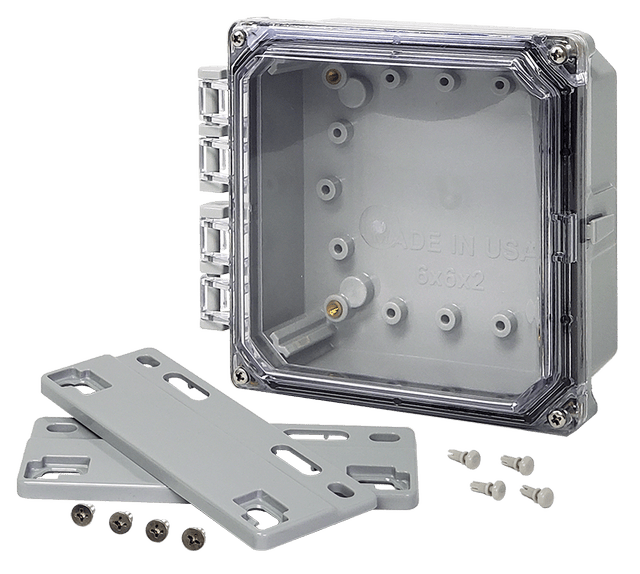

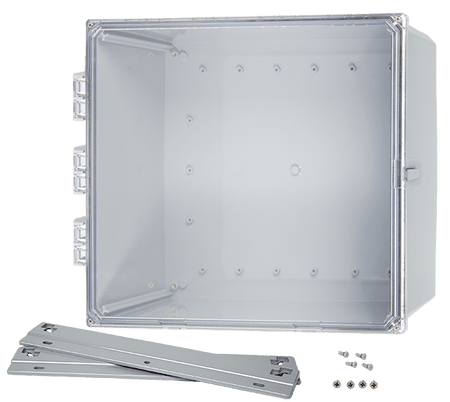

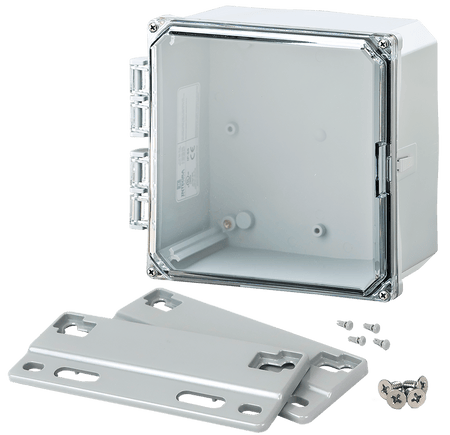

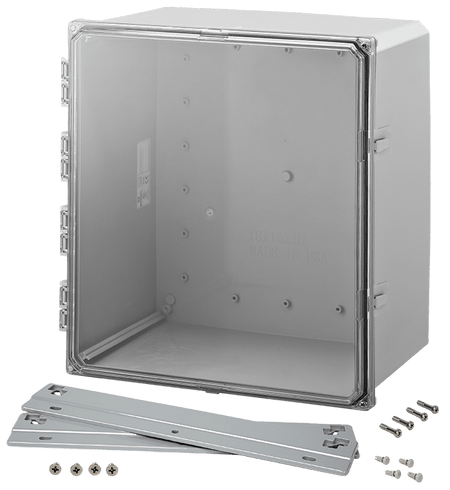

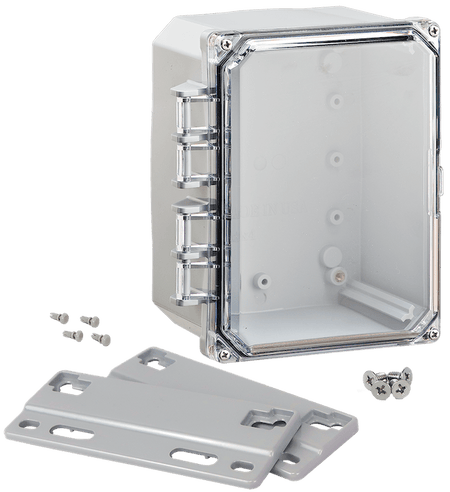

Integra Premium Series Polycarbonate Enclosure with Hinge Clear Screw Cover and Mounting Flange

Specifications

Specifications

Product Type	Enclosures
Material	Polycarbonate
Series	Integra Premium Series
Application	Outdoor
IP Equivalent	IP66
Height	6
Width	6
Depth	2
Inner Dimensions	6 x 6 x 2.38
Cover Type	Hinged Cover, Clear Cover, Screw Cover
Mount Type	Wall Mount
Mounting Plate Included	No

Description

Premium Line

• Polycarbonate Enclosures, Premium Line
• UL/cUL NEMA TYPE 4X IP66
• Mounting Flange
• Screw Closure
• Screw/Hinged
• Clear cover

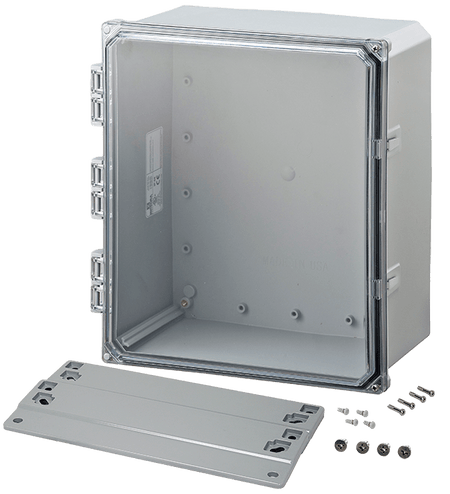

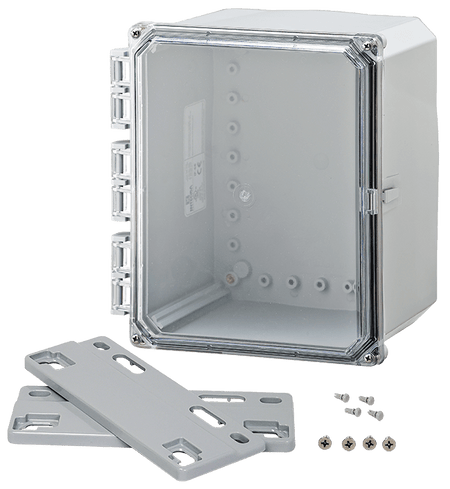

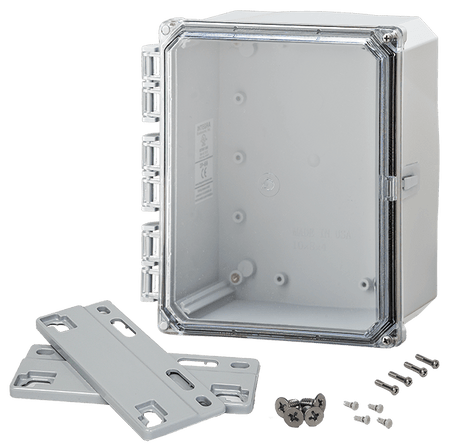

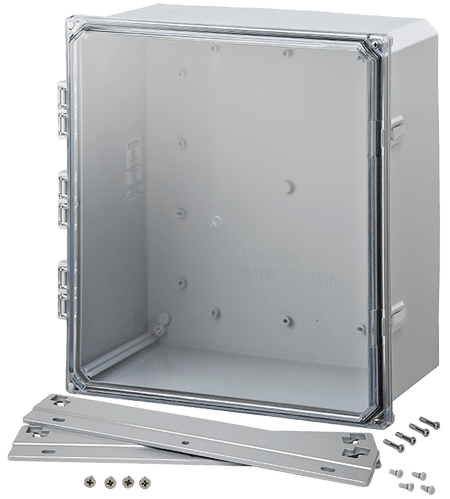

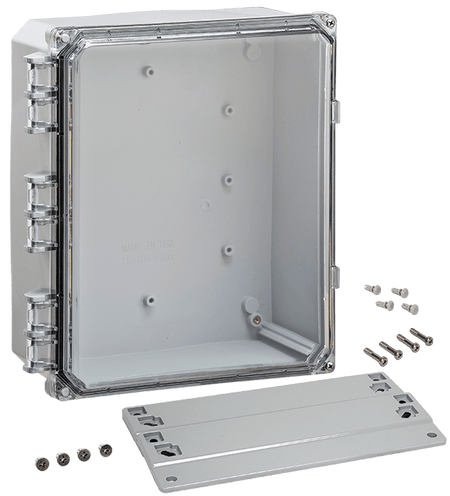

A versatile polycarbonate enclosure designed for durability and functionality. This enclosure features a clear hinged cover and mounting flanges, ensuring secure installation. Rated UL/cUL NEMA Type 4X and IP66, it offers excellent protection against dust and water. The enclosure is light gray with a gloss surface, made from high-impact, UV-resistant polycarbonate. It includes brass inserts for easy internal mounting and a hydro-phobic urethane gasket for a reliable seal. Its wide temperature range of -40°F to 265°F makes it suitable for various demanding environments.

Protection Rating: UL/cUL NEMA TYPE 4X IP66

Accessories

Additional Accessories

• Integra Premium Series Mounting Panels — $13.95
• Integra Premium Series Swing Panels and Swing Panel Kits — $14.85
• Integra Din Rail Kits — $15.84
• Integra Pole Mounting Kit — $46.50

NEMA Rating

• 4X

Downloads

No downloads available for this variant.
