Manual Motor Starter Rated From 0.16A to 40A - 32F, High Breaking Cap., Overload/Inst. Protection
LSIS![Manual Motor Starter, 0.16A, (0.1-0.16A), 32F, High Breaking Cap., Overload/Inst. Protection](http://nemasupply.com/cdn/shop/products/mms-32h_31_600x600.jpg?v=1551138079)
![Manual Motor Starter, 0.16A, (0.1-0.16A), 32F, High Breaking Cap., Overload/Inst. Protection](http://nemasupply.com/cdn/shop/products/mms-32h_31_60x60.jpg?v=1551138079)

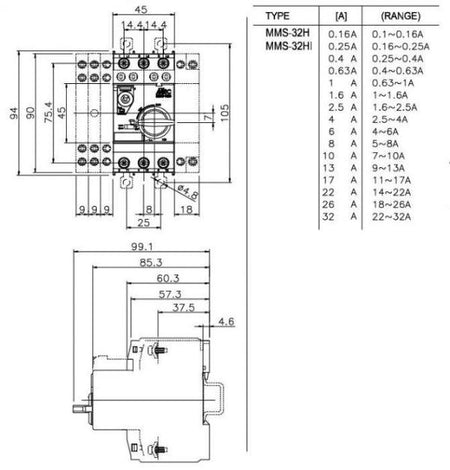

![MMS-32H 0.16A Drawing](http://nemasupply.com/cdn/shop/products/lsis-mms-32h-dim_31_60x63.jpg?v=1551138087)
- Description
- Specifications
- More Info
-
Meta-MEC, MMS Series- HIgh Breaking Capacity 32AF Frame Size, Rated From 0.16A to 40A
-
Specifications
- Dial cover for current setting, cover lock device, large scale letter
- Identification label
- Handle lock function in OFF position & Three position handle
- Trip test device
- Insulation barrier
- 35mm/75mm din-rail standard mounting & screw mounting
- Finger safe terminal cover
- Direct adapter (Connection kit with mini Magnetic Contactor)
- Rated operating voltage (Ue): 690V for MMS-32
- Rated frequency (Hz): 50/60Hz
- Rated insulation voltage (Uimp): 6kV for MMS-32
- Utilization category: Cat A., AC3
- Instantaneous short circuit: 13 x Max
- Wide operation temperature: -20 ~ +60
