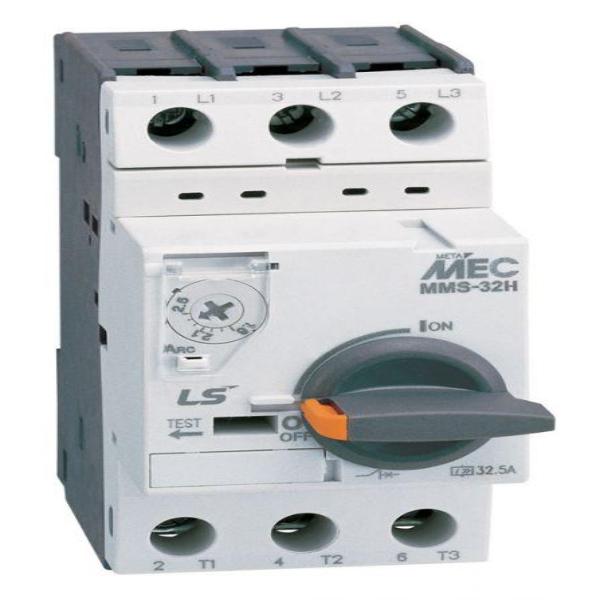

Manual Motor Starter Rated From 0.16A to 40A - 32F, High Breaking Cap., Inst. Protection Only

• Description
• Specifications
• More Info

• Meta-MEC, MMS Series- High Breaking Capacity 32AF Frame Size, Rated From 0.16A to 40A Instantaneous Protection

• Specifications

  • Dial cover for current setting, cover lock device, large scale letter
  • Identification label
  • Handle lock function in OFF position & Three position handle
  • Trip test device
  • Insulation barrier
  • 35mm/75mm din-rail standard mounting & screw mounting
  • Finger safe terminal cover
  • Direct adapter (Connection kit with mini Magnetic Contactor)
  • Rated operating voltage (Ue): 690V for MMS-32
  • Rated frequency (Hz): 50/60Hz
  • Rated insulation voltage (Uimp): 6kV for MMS-32
  • Utilization category: Cat A., AC3
  • Instantaneous short circuit: 13 x Max
  • Wide operation temperature: -20 ~ +60
