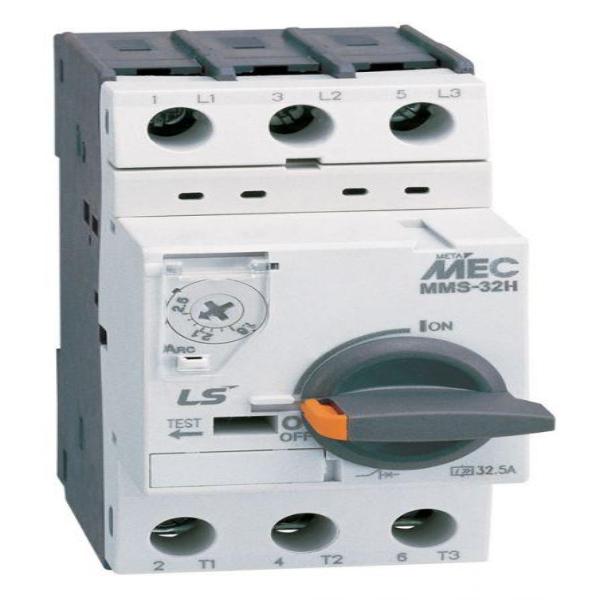

Manual Motor Starter Rated From 10A to 65A - 63F, High Breaking Cap.,

Rated Current (Max.):

Adjustable Current Range:

Quantity

$222.25

Product Information

Part Number: 706001000

Meta-MEC, MMS Series- High Breaking Capacity 63AF Frame Size, Rated From 10A to 65A

Protection
Specifications
- Dial cover for current setting, cover lock device, large scale letter
- Identification label
- Handle lock function in OFF position & Three position handle
- Trip test device
- Insulation barrier
- 35mm/75mm din-rail standard mounting & screw mounting
- Finger safe terminal cover
- Direct adapter (Connection kit with mini Magnetic Contactor)
- Rated operating voltage (Ue): 690V for MMS-32
- Rated frequency (Hz): 50/60Hz
- Rated insulation voltage (Uimp): 6kV for MMS-32
- Utilization category: Cat A., AC3
- Instantaneous short circuit: 13 x Max
- Wide operation temperature: -20 ~ +60

Manual Motor Starter Rated From 10A to 65A - 63F, High Breaking Cap., Overload/Inst. Protection
