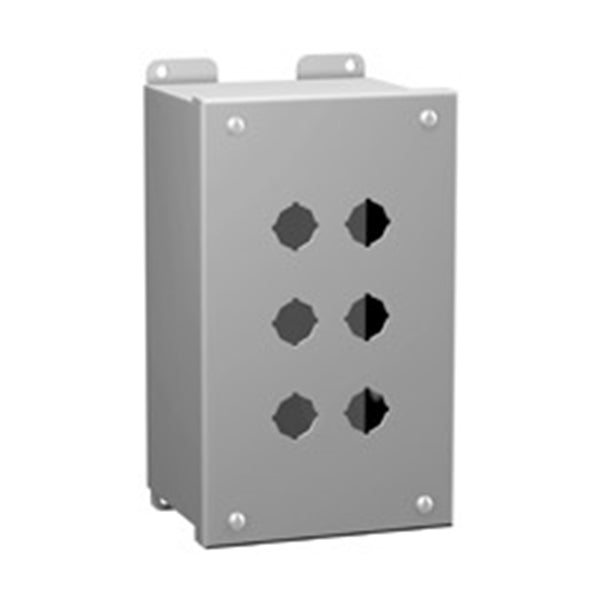

Hammond MPB Series Miniature Pushbutton Enclosures
Couldn't load pickup availability
Specifications
Product Type | Enclosures |
---|---|
Application | Indoor |
IP Equivalent | IP54 |
Height | 3.25 |
Width | 2.75 |
Depth | 3.5 |
Cover Type | Pushbutton, Screw Cover |
Latch Type | Screw Clamp |
Mount Type | Wall Mount |
Push Button Columns | 1 |
Pushbutton Holes | 1 |
- Description
- Specifications
- NEMA Ratings
-
Designed to accept 22mm miniature oil tight pushbuttons, switches and pilot lights. While Providing protection from dirt, dust, oil, and water.
Standards
- UL 508A Type 12 and 13
- CSA Type 12 and 13
- NEMA Type 12 and 13
- IEC 60529, IP54
- Appropriate components are required to maintain these standards.
-
SpecificationsÂ
Please click a part number below to view the product specifications.
Number of HolesÂ
Part Number
1 MPB1 2 MPB2 3 MPB3 4 MPB4 6 MPB6 9 MPB9 12 MPB12 -
Type 12
Enclosures constructed (without knockouts) for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); and to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing).
Type 13
Enclosures constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and circulating dust, lint, fibers, and flyings); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (dripping and light splashing); and to provide a degree of protection against the spraying, splashing, and seepage of oil and non-corrosive coolants.
Additional Accessories
