Hammond CW Series-Nema 1 Hinged Lay-In Wireway
Hammond CW Series-Nema 1 Hinged Lay-In Wireway
Hammond MFG

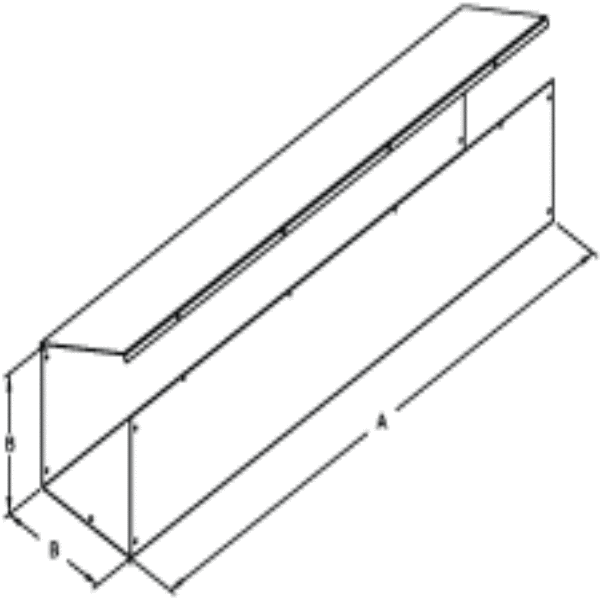

Type 1 Lay-In Wireway CW Series 12x12 Hinge Cover Straight Section without Knock Outs

In stock
SKU: CWST1212NK
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
$87.52
Length

Specifications

Product Type Wireway and Trough
Material Painted Steel
Application Indoor
IP Equivalent IP20
Height 12
Width 12
Length 12
Cover Type Hinged Cover, Screw Cover
Mount Type Surface Mount
Wireway Part Type Straight
  • Description
  • Specifications
  • More Infomation

  • Application

    • Construction designed to ensure electrical continuity and to permit fast and easy indoor installation of multiple wireway runs.

    Standards

    • UL-50 Type 1
    • cUL Type 1
    • Complies with
      • IEC 60529, IP20


    • Specifications

      Please click a part number below to view the product specifications.

      Length 12 x 12
      12" CWST1212NK
      18" -
      24" CWST1224NK
      36" CWST1236NK
      48" CWST1248NK
      60" CWST1260NK
      72" CWST1272NK
      96" CWST1296NK
      120" CWST12120NK

    • Construction - Hinge Cover

      • Formed from 16 or 14 gauge steel
      • Hinge covers are hinged on 24" centers
      • Straight sections are provided with adequate concentric knockouts (1/2", 3/4" conduit size)
      • Knockouts are on 12" centers
      • Joiner is included with each straight section
      • Unobstructed interior speeds up laying of cables
      • Optional hanger brackets allow for vertical or horizontal mounting

    Additional Accessories
    • 1
