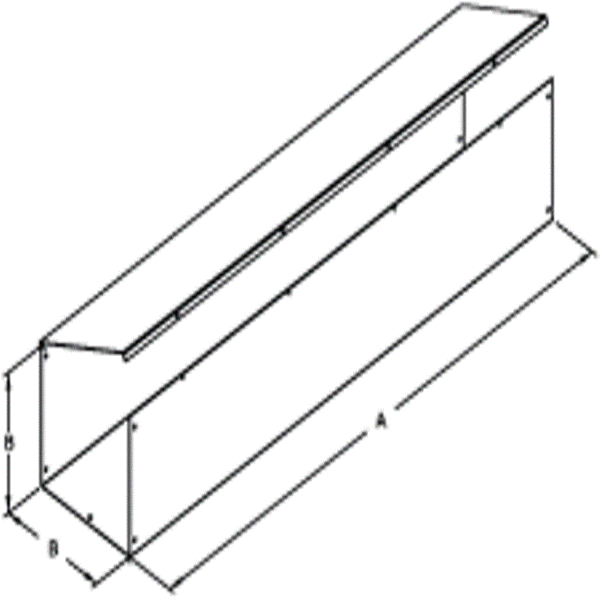

Hammond CW Series Hinge Cover Type 1 Lay-In Wireway- Straight Section w/o KO - 2.5 x 2.5- Steel/Gray-
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
Regular price
$21.11
Couldn't load pickup availability
Specifications
| Product Type | Wireway and Trough |
|---|---|
| Material | Painted Steel |
| Application | Indoor |
| IP Equivalent | IP20 |
| Height | 2.5 |
| Width | 2.5 |
| Length | 12 |
| Cover Type | Hinged Cover, Screw Cover |
| Mount Type | Surface Mount |
| Wireway Part Type | Straight |
- Description
- Specifications
- More Information
-
Application Â
- Construction designed to ensure electrical continuity and to permit fast and easy indoor installation of multiple wireway runs.
Standards Â
- UL-50 Type 1
- cUL Type 1
- Complies with
- IEC 60529, IP20
-
Specifications
Please click a part number below to view the product specifications.
Length 2.5 x 2.5 12" CWST212NK 18" - 24" CWST224NK 36" CWST236NK 48" CWST248NK 60" CWST260NK 72" - 96" - 120" CWST2120NK -
Construction - Hinge Cover Â
- Formed from 16 or 14 gauge steel
- Hinge covers are hinged on 24" centers
- Straight sections are provided with adequate concentric knockouts (1/2", 3/4" conduit size)
- Knockouts are on 12" centers
- Joiner is included with each straight section
- Unobstructed interior speeds up laying of cables
- Optional hanger brackets allow for vertical or horizontal mounting
Additional Accessories
