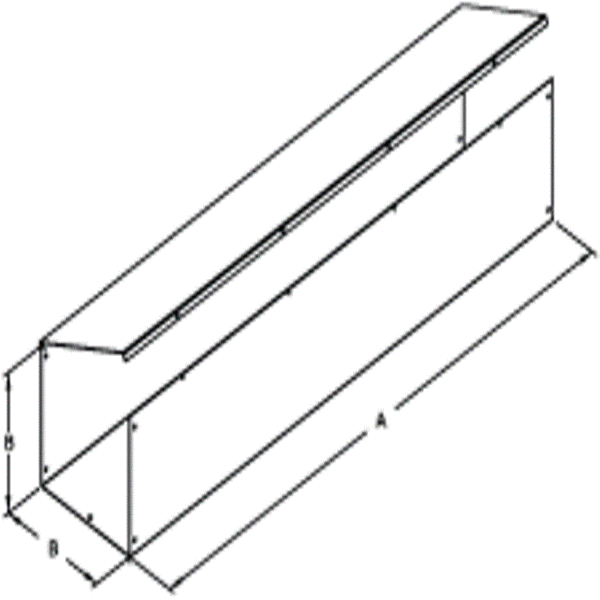

Hammond CW Series Hinge Cover Type 1 Lay-In Wireway- Straight Section w/o KO - 4 x 4- Steel/Gray-

In stock
SKU: CWST412NK
Typically Ships in 1-2 Business Days
Contact Us for Expedited Shipping
$23.25
Length

Specifications

Product Type Wireway and Trough
Material Painted Steel
Application Indoor
IP Equivalent IP20
Height 4
Width 4
Length 12
Cover Type Hinged Cover, Screw Cover
Mount Type Surface Mount
Wireway Part Type Straight
  • Description
  • Specifications
  • More Information

  • Application

    • Construction designed to ensure electrical continuity and to permit fast and easy indoor installation of multiple wireway runs.

    Standards

    • UL-50 Type 1
    • cUL Type 1
    • Complies with
      • IEC 60529, IP20


    • Specifications

      Please click a part number below to view the product specifications.

      Length 4 x 4
      12" CWST412NK
      18" CWST418NK
      24" CWST424NK
      36" CWST436NK
      48" CWST448NK
      60" CWST460NK
      72" CWST472NK
      96" CWST496NK
      120" CWST4120NK

    • Construction - Hinge Cover

      • Formed from 16 or 14 gauge steel
      • Hinge covers are hinged on 24" centers
      • Straight sections are provided with adequate concentric knockouts (1/2", 3/4" conduit size)
      • Knockouts are on 12" centers
      • Joiner is included with each straight section
      • Unobstructed interior speeds up laying of cables
      • Optional hanger brackets allow for vertical or horizontal mounting

    Additional Accessories
    • 1

    No downloads available for this variant.
