NEMA 4X Fiberglass Weatherproof Camera Security Cabinet with Three HIKVISION DS-1273ZJ-140 Camera Mounts
NEMA 4X Fiberglass Weatherproof Camera Security Cabinet with Three HIKVISION DS-1273ZJ-140 Camera Mounts NEMA 4X Fiberglass Weatherproof Camera Security Cabinet with Three HIKVISION DS-1273ZJ-140 Camera Mounts NEMA 4X Fiberglass Weatherproof Camera Security Cabinet with Three HIKVISION DS-1273ZJ-140 Camera Mounts
$454.99
Product Information
Part Number: NF141206E1-C3
Inventory: Typically Ships 2-4 Business Days
  • Description
  • NEMA 4X Fiberglass Weatherproof Camera Security Cabinet with Three HIKVISION DS-1273ZJ-140 Camera Mounts

    Features
    • Includes (3) HIKVISION® DS-1273ZJ-140 camera mounting brackets
    • Internal PoE Switch - Only a single PoE Ethernet cable is required from NVR
    • (3) PoE lightning protectors with jumper cables- one for each camera
    • Water resistant fiberglass reinforced polyester, FRP
    • Gasketed door with stainless steel quick release latches and padlock hasps
    • Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
    • Weatherproof, UV stable and highly corrosion resistant
    • Includes stainless steel mounting feet
    • Pole Mounting Kit Available
    Applications
    • Private or public security systems
    • Law enformcement camera systems
    • Traffic monitoring camera systems
    • Designed for use with HIKVISION® cameras including models:
      DS-2CD2387G2-LSU/SL Fixed Turret Cameras
      DS-2CC51xxP(N) Dome Cameras


    Deploy Surveillance Camera Systems Quickly and Easily

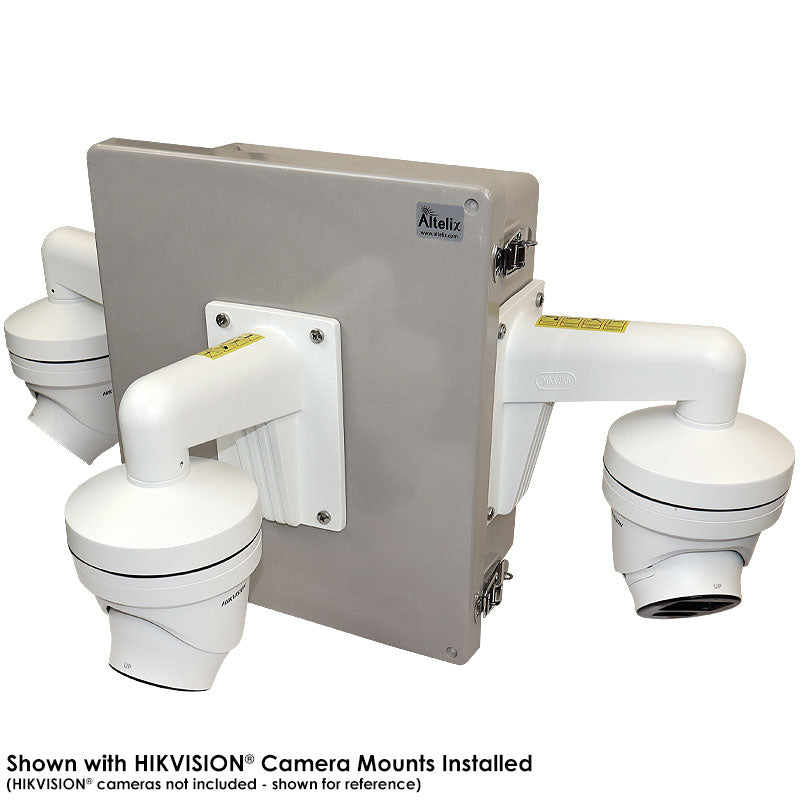

    The Altelix NEMA 4X Security Camera Cabinet provides a way to quickly and easily deploy three HIKVISION® network cameras. Rather than mounting each camera separately, the included HIKVISION® camera mounting brackets are installed onto the Altelix Security Camera Cabinet so only the cabinet itself needs to be mounted.

    HIKVISION® Camera Mounting Brackets
    Included with this model are (3) three HIKVISION® DS-1273ZJ-140 camera mounting brackets. These brackets get installed on either side of the cabinet. Cable glands are provided for camera wiring. Compatible network cameras include:

    • HIKVISION® DS-2CD2387G2-LSU/SL Fixed Turret Cameras
    • HIKVISION® DS-2CC51xxP(N) Dome Cameras

    As well as any HIKVISION® camera designed for use with the DS-1273ZJ-140.

    PoE Switch

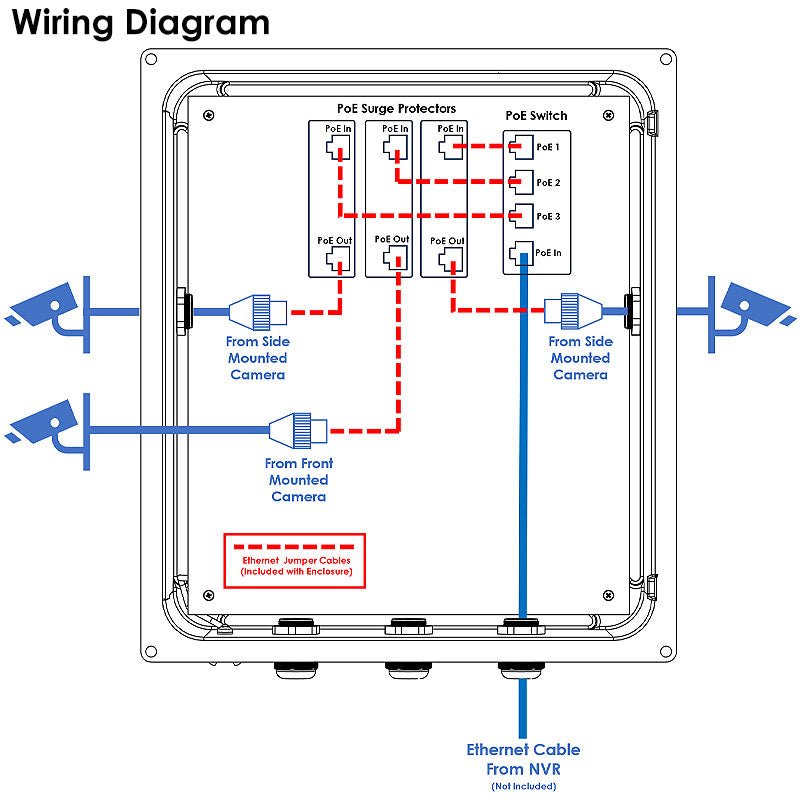

    Installed inside this cabinet is the Altelix EE1000-DIN Gigabit 4-Port Switch. This simplifies wiring since only a single Ethernet cable from a PoE compatible NVR is needed. This switch then feeds each camera separately. Jumper cables to connect the cameras to the switch are included.

    PoE Lightning Protectors
    For added protection, (3) Altelix ES1000-DIN Gigabit PoE lightning protectors are provided. These lightning protectors are wired between the PoE switch and cameras using the included jumper cables. Altelix also recommends installing an additional PoE lightning protector near the NVR. This helps protect the NVR from lightning strikes on the cameras or Ethernet cable. This lightning protector is available in the accessories section when adding to the cart. It can also be purchased by clicking here: Altelix ES1000-DIN.

    All Weather Construction

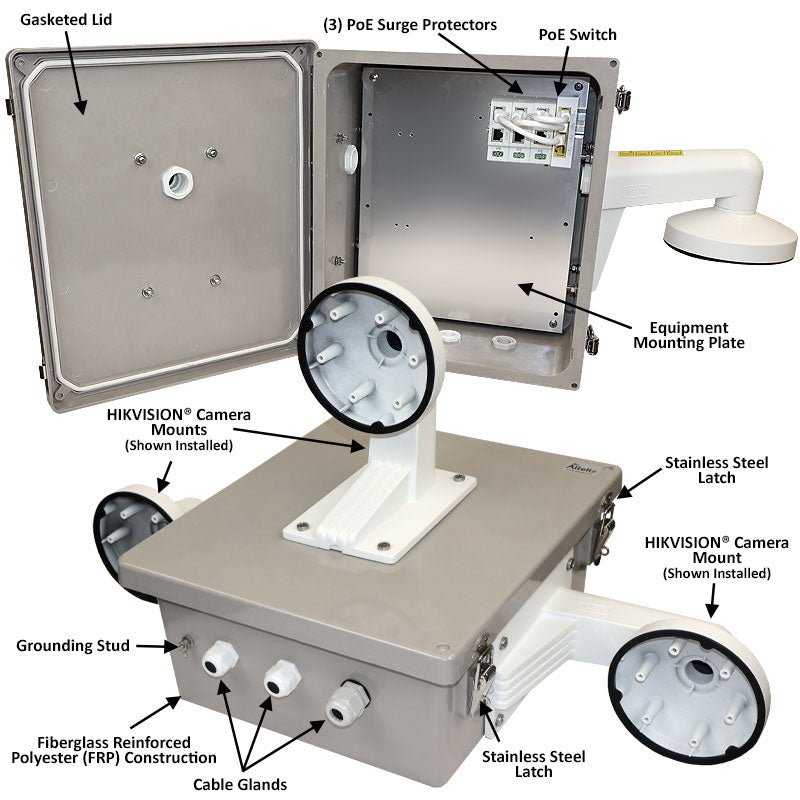

    This rugged NEMA 4X cabinet is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

    Aluminum Equipment Plate
    This model features an easy to drill, aluminum equipment mounting plate which can be used to install additional equipment.

    Mounting
    Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. See available accessories when adding to cart.

    Two Camera Configuration
    This model is also available with (2) two HIKVISION® DS-1273ZJ-140 camera mounting brackets. For more information see: NF141206E1-C2

    Customization
    We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

    HIKVISION® is a trademark or registered trademark of Hangzhou Hikvision Digital Technology Co., Ltd.

    Cabinet Specifications
    Material Fiberglass Reinforced Polyester
    Color Gray
    Outer Dimensions (Cabinet Only) 15.7 x 13.8 x 6.5 Inches
    (401 x 352 x 165 mm)
    Inner Dimensions 13.0 x 11.0 x 4.9 Inches
    (330 x 279 x 124 mm)
    Mounting Plate Material 0.10 in (2.5 mm) Aluminum
    Weight 16 lbs. (7.2 kg)
    Ratings NEMA Type 4, 4X / IP66
    Flame Rating UL94-5V
    Industry Certifications CE
    Camera Mounting Brackets (3) HIKVISION® DS-1273ZJ-140

    PoE Switch Specifications
    RJ45 Ports (1) PoE In, (3) PoE Out
    PoE Voltage 44-57 VDC
    PoE Input Power 30W Max.
    PoE Output Power 24W Max., Average 8W Per Port
    Data Speed 10/100/1000 Mbps
    PoE Protocol IEEE 802.3at (30W), IEEE 802.3af (15.4W)
    PoE Pinouts Pins 1/2 & 7/8 (-)
    Pins 3/6 & 4/5 (+)

    PoE Lightning Protector Specifications
    Ethernet Ports (2) Shielded RJ45
    Nominal Operating Voltage (Un) 48V
    Max. Continuous Operating Voltage (Uc) 100V
    Data Rate 10/100/1000Mbps
    PoE Compatibility IEEE 802.3af/at
    Nominal Discharge Current (In) 5KA
    Max. Discharge Current (Imax) 10KA
    Ground Wire Strip Length >0.25 in. (6-7mm)
