Pole Mount / Flange Mount Kit for Altelix NFC121006 & NS121006 Series NEMA Enclosures

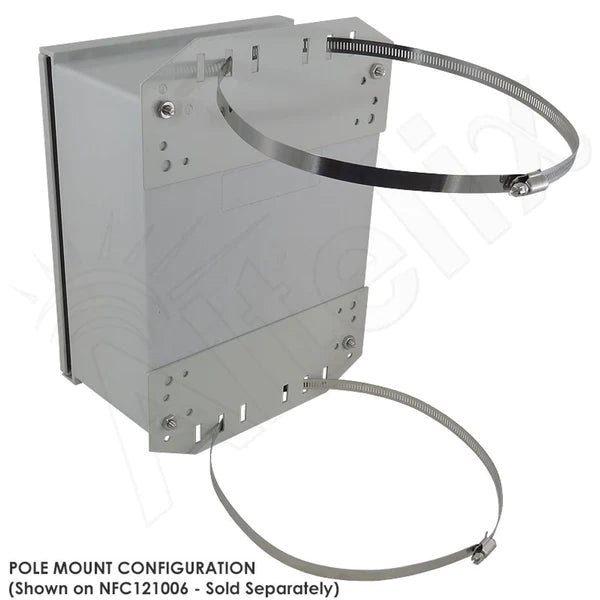

The Altelix NMKS-250-08 Pole Mount / Flange Mount Kit attaches to the rear of our NFC121006 and NS121006 series NEMA enclosures. These heavy duty steel brackets allow the enclosures to be mounted to poles 2.0 to 9.5 inches (50.8 to 241.3mm) in diameter. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated. The mounting brackets are constructed from 0.08" (2mm) thick steel and are coated for all weather applications.

Optional adjustable stainless steel bands can also be purchased for the following pole sizes:

• Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
• Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
• Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter

Click Here for more information.

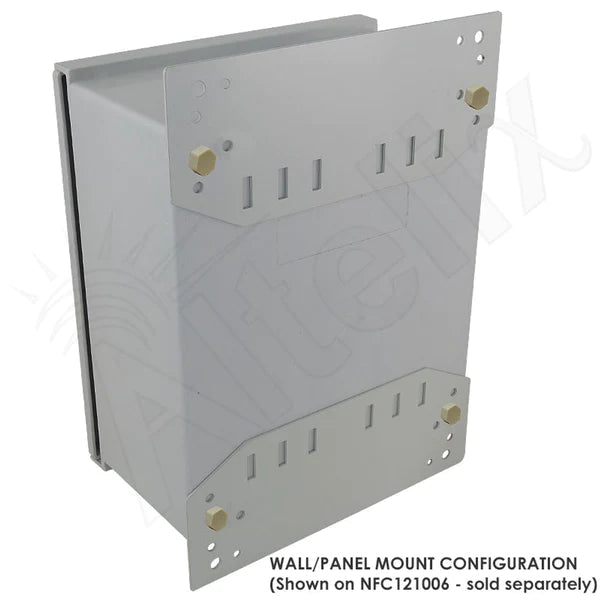

The brackets can also be reversed to provide a continuous steel mounting flange along the edge of the enclosure.

The NMKS-250-08 kit includes (2) steel mounting brackets, (2) stainless steel adjustable bands and mounting hardware.

The NMKS-250-08 kit is for use with the following enclosures:

• NFC121006 FRP Series Enclosures
• NS121006 Steel Series Enclosures
