Pole Mount / Flange Mount Kit for Altelix NFC242009 & NS242012 Series NEMA Enclosures

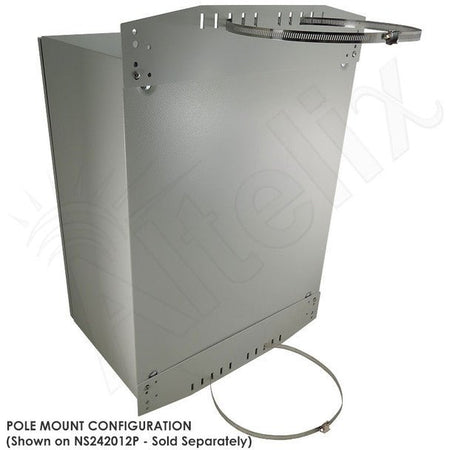

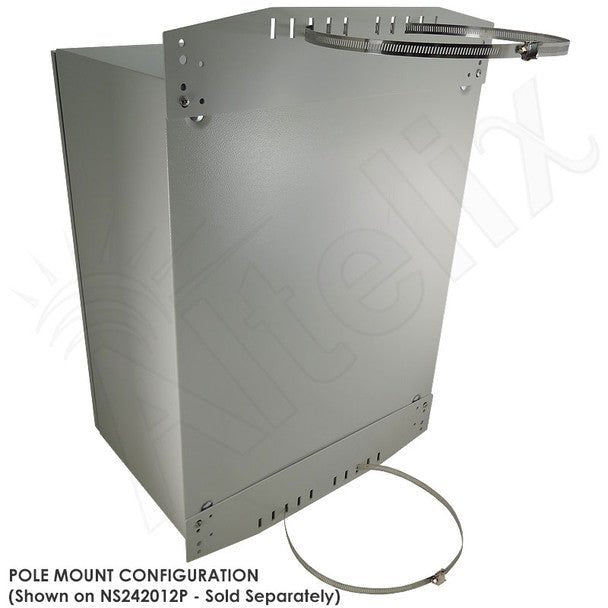

The Altelix NMKS-500-08 Pole Mount Kit attaches to the rear of our NFC242009 and NS242012 series NEMA enclosures. These heavy duty steel brackets allow the enclosures to be mounted to poles 2.0 to 9.5 inches (50.8 to 241.3mm) in diameter. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated. The mounting brackets are constructed from 0.08" (2mm) thick steel and are coated for all weather applications.

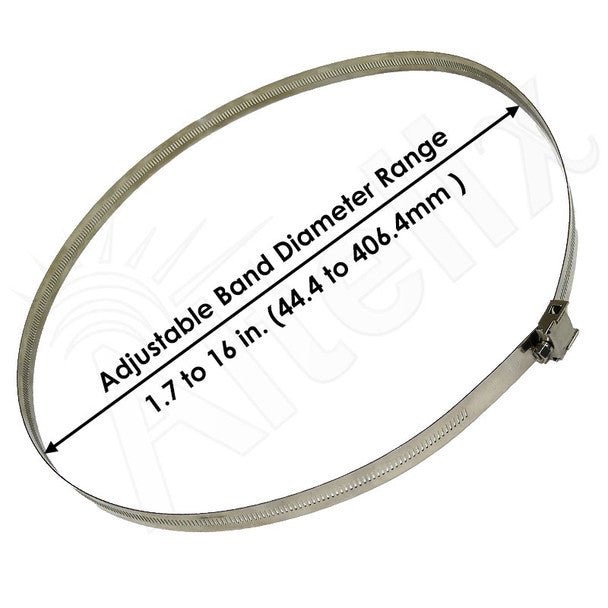

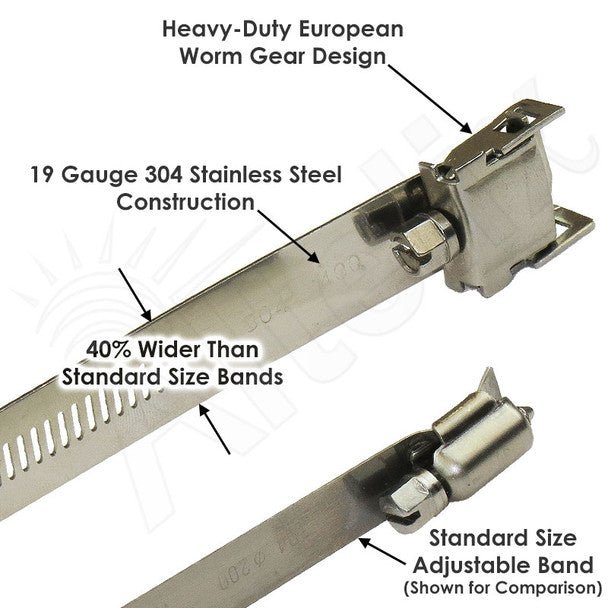

Optional adjustable stainless steel bands can also be purchased for the following pole sizes (see the accessory section below):

• Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
• Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
• Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter

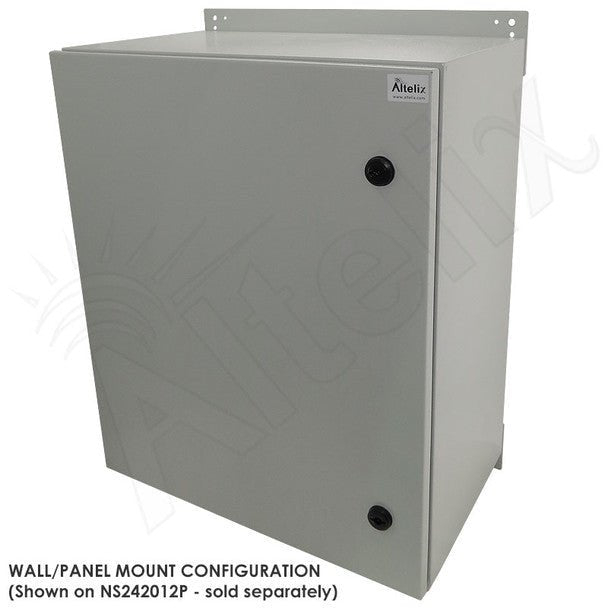

The brackets can also be reversed to provide a continuous steel mounting flange along the edge of the enclosure.

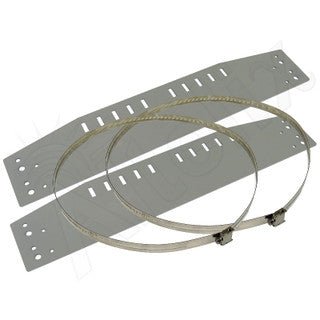

The NMKS-500-08 kit includes (2) steel mounting brackets, (4) stainless steel adjustable bands and mounting hardware.

The NMKS-500-08 is for use with the following enclosures:

• NFC242009 Series FRP Enclosures
• NS242012 Series Steel Enclosures
