Altelix Pole Mount Kit for NP090803, NP100904, NP120905 & NP120907 NEMA Enclosures
Couldn't load pickup availability
Specifications
| Product Type | Enclosure Accessories |
|---|---|
| Mount Type | Pole Mount |
- Description
-

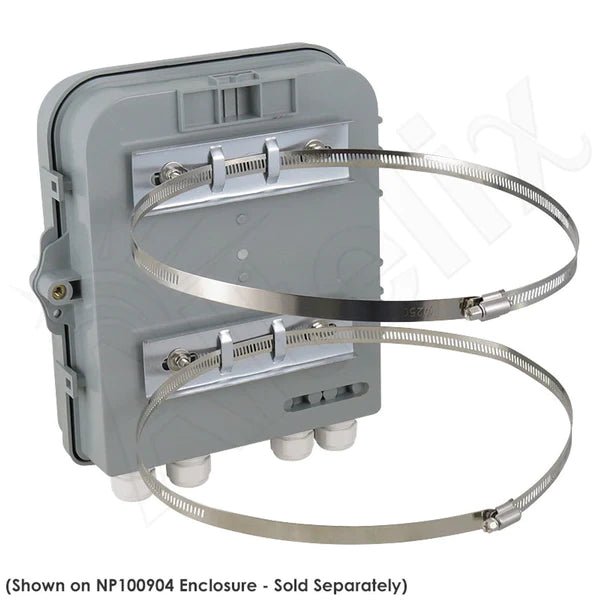

The Altelix NMKG-150-08 Pole Mount Kit easily attaches to the rear of our NP090803, NP100904, NP120905 and NP120907 series NEMA enclosures. This pole mount kit allows the enclosures to be mounted to poles up to 9.5 inches in diameter. The mounting brackets are constructed from 0.04" (1mm) thick galvanized steel for all weather applications.
Optional adjustable stainless-steel bands can also be purchased for the following pole sizes:- Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
- Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
- Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter
Click Here for more information.

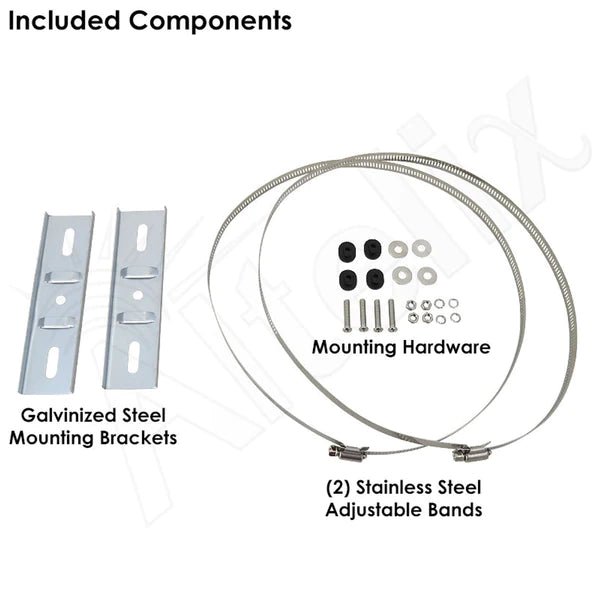

The NMKG-150-08 kit includes (2) galvanized steel mounting brackets, (2) stainless steel adjustable bands and mounting hardware with rubber sealing washers to ensure proper seal.
The NMKG-150-08 is for use with the following enclosures:- NP090803
- NP100904
- NP120905
- NP120905
