Pole Mount Kit for NP131004, NP151005 & NF108006 NEMA EnclosuresAltelix

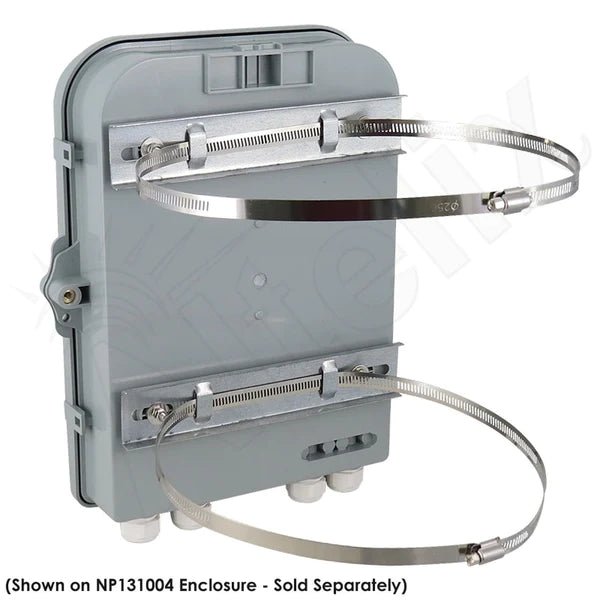

The Altelix NMKG-220-08 Pole Mount Kit easily attaches to the rear of our NP131004 and NP151005 ABS series and NF100806 FRP series NEMA enclosures. This pole mount kit allows the enclosures to be mounted to poles up to 9.5 inches in diameter. The mounting brackets are constructed from 0.04" (1mm) thick galvanized steel for all weather applications.
Optional adjustable stainless steel bands can also be purchased for the following pole sizes:
- Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
- Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
- Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter

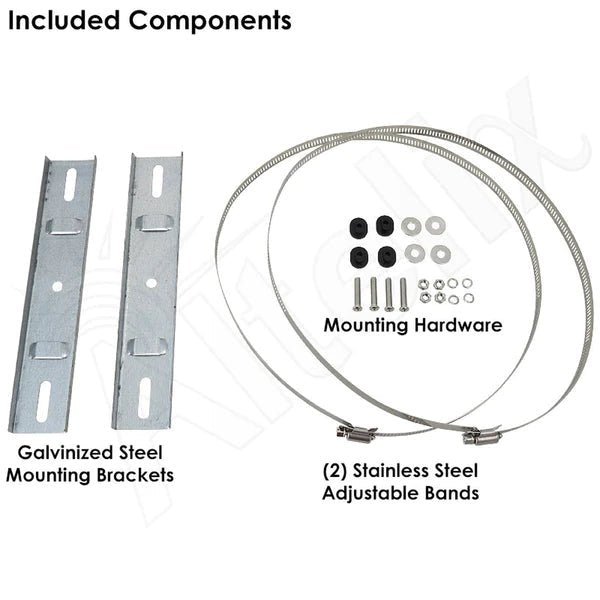

The NMKG-220-08 kit includes (2) galvanized steel mounting brackets, (2) stainless steel adjustable bands and mounting hardware with rubber sealing washers to ensure proper seal.
The NMKG-220-08 is for use with the following enclosures:
